High Current Socket Outlet 3P+E | 150A 440V AC | IP66 Rated | Polyamide Body by NHP
High current socket outlet with 3P+E configuration and 150A 440V AC capacity—ideal for industrial and commercial applications. Built for enhanced safety and reliability, with IP66 protection and durable polyamide construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

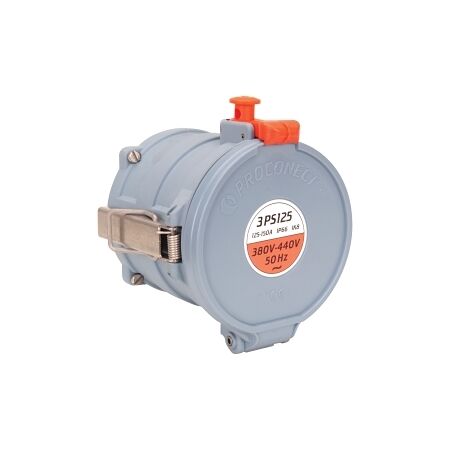

Product Name/Title: PROCONECT 3PS125 Socket Outlet, 3P+E, 150A (AC23 100A) 440V AC
Brand: NHP
SKU: 3PS9D30E01
Alternatively Known As: High Current Socket Outlet, 3 Phase Socket, Industrial Socket
Technical Specifications
- Amperage: 150 A
- Voltage: 380-440 V
- Contact Configuration: 3P+E
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 6 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 146mm x 100mm
- Weight: 1.5 kg
Key Features
- 3P+E contact configuration for enhanced safety and reliability.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: High power applications requiring robust connections
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
Standard warranty applies.
Available Now
The PROCONECT 3PS125 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power connections.
