High Current Socket Outlet 3P+N+E | 90A 440V | IP66 Rated by NHP
High current socket outlet with 3P+N+E configuration and 90A capacity—ideal for industrial and commercial applications. Built for robust power distribution, with IP66 protection against dust and water ingress.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

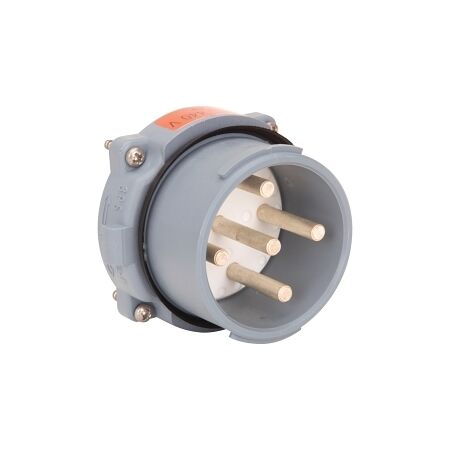

Product Name/Title: PROCONECT 3PS63 Socket Outlet, 3P+N+E, 90A (AC23 63A) 440V AC
Brand: NHP
SKU: 3PS6D3NE01
Alternatively Known As: High Current Socket Outlet, 90A Socket, Industrial Socket Outlet
Technical Specifications
- Amperage: 90 A
- Voltage: 380-440 V
- Contact Configuration: 3P+N+E
- Construction Type: Outlet
- Material Insulation Body: Polyamide (PA)
- Contact Material: Other
- Material Screw: Stainless steel
- Degree of Protection: IP66
- Nominal Tightening Torque: 4 Nm
- Operating Temperature: -30-60 °C
- Dimensions (H x L x W): 100mm x 114.5mm x 114.5mm
- Weight: 0.64 kg
Key Features
- 3P+N+E configuration for reliable power distribution.
- IP66 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Heavy machinery and equipment
- Commercial: High power applications requiring robust connections
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP PROCONECT 3PS63 Socket Outlet is available now for immediate purchase. Ideal for industrial and commercial applications requiring high power connections.
