High Current Terminal 170A | 1 x 10-35mm | Aluminium/Copper | Compact Design by NHP
High current terminal with 170A capacity and 1 x 10-35mm conductor compatibility—ideal for industrial and commercial power distribution. Built for durability, with aluminium/copper construction and compact design for efficient installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

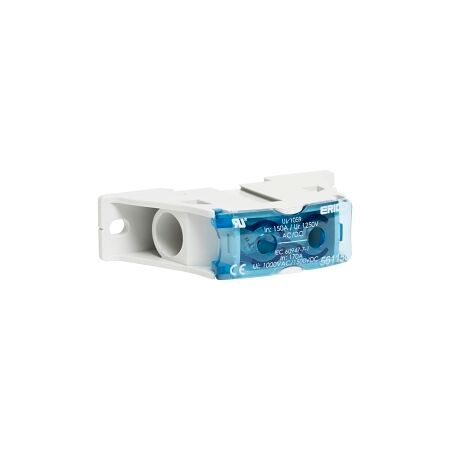

Product Name/Title: nVent ERIFLEX High Current Terminal 170A In and Out 1 x 10 to 35mm
Brand: NHP
SKU: 561158
Alternatively Known As: High Current Terminal, Terminal Block, Distributor Assembly Terminal
Technical Specifications
- Number of poles: 1
- Rated insulation voltage: 1000 V
- Short time withstand current: 6 kA
- Conductor material: Aluminium/copper
- Conductor cross section (flexible): 10-35 mm²
- Conductor cross section (solid): 10-35 mm²
- Dimensions (H x L x W): 84mm x 46.9mm x 20.2mm
- Weight: 0.5 kg
Key Features
- Rated for a maximum current of 170 A.
- Compatible with conductor cross sections of 10-35 mm².
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring high current connections
Standards & Compliance
- Complies with relevant Australian electrical standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The nVent ERIFLEX High Current Terminal 170A In and Out is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
