High Density Barcode Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The High Density Barcode Scanner is designed for industrial applications, featuring auto focus and dynamic focus control for optimal performance. With a reading distance of 400 mm to 1600 mm and the ability to read various 1D barcodes, it's perfect for automated production lines and logistics management. Built with a robust aluminum housing and IP65 protection, this scanner ensures durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

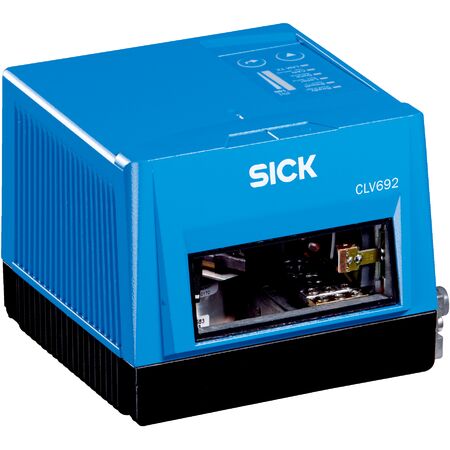

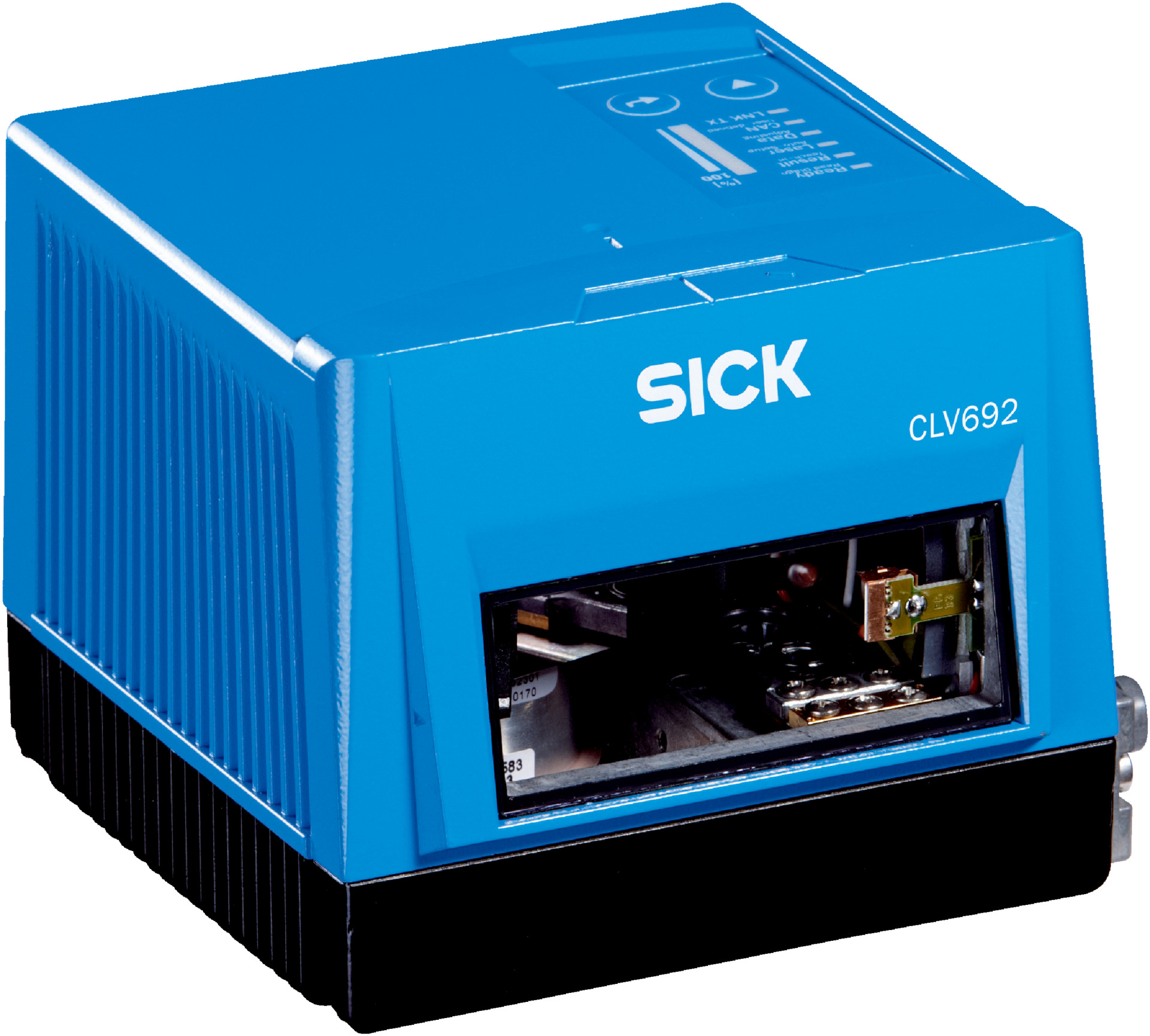

Product Name/Title: High Density Barcode Scanner | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056608
Alternatively Known As: SICK CLV692, High Density Barcode Scanner, Industrial Line Scanner, SICK Barcode Reader
Technical Specifications
- Version: High Density
- Sensor type: Line scanner
- Optical focus: Auto focus or dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Light source: Visible red laser spot, 660 nm
- Laser class: 2 (IEC 60825-1:2014+A11:2021 compliant)
- Aperture angle: ≤ 60°
- Reading distance: 400 mm to 1600 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.17 mm to 0.4 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 15 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Weight: 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128, UPC, GTIN, EAN
- Number of codes per scan: 1 to 20 (standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- High density line scanner with auto focus and dynamic focus control options
- Reads 1D barcodes including Interleaved 2 of 5, Code 128, Code 39, GS1-128, UPC, and more
- Reading distance from 400 mm to 1600 mm with scanning frequency between 400 Hz and 1200 Hz
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021 standards
- Robust aluminum die cast housing with IP65 protection rating
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Integrated parameter storage in cloning plug and configuration via SOPAS ET software
- High ambient light immunity up to 2000 lx on barcode
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with industrial barcode scanning systems and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and warehouse management
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy efficient operation with 15 W power consumption
- Complies with RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV692-0000 High Density Line Scanner is available for immediate purchase, ideal for industrial automation and barcode reading applications.
