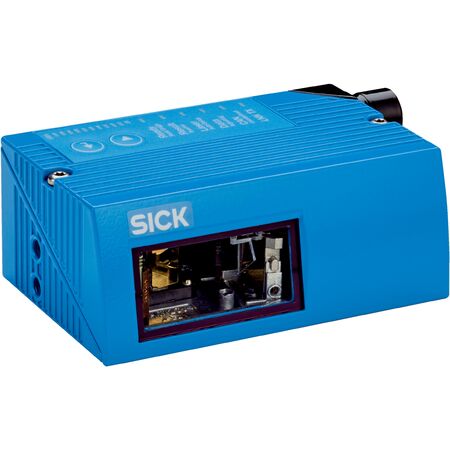

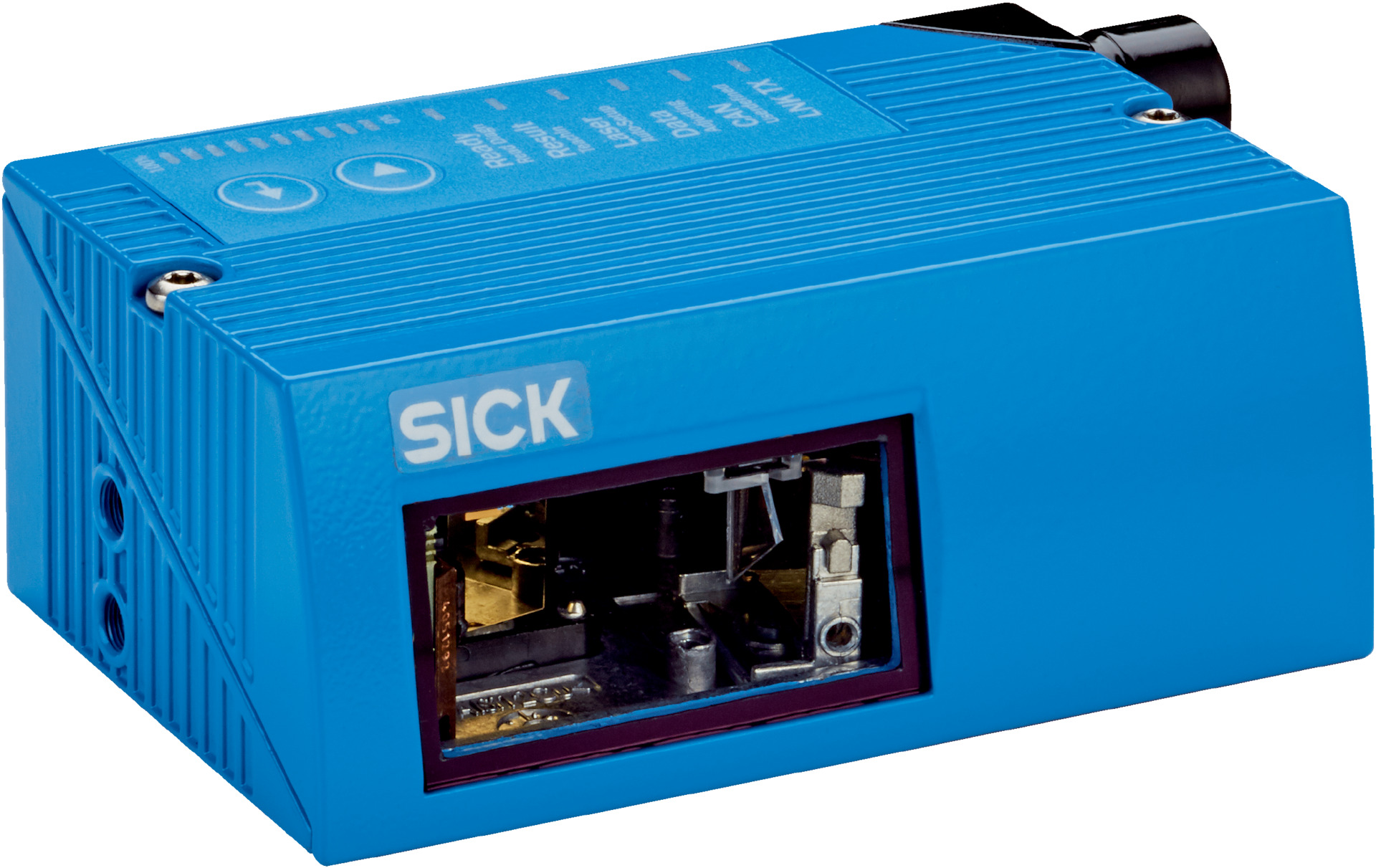

High Density Barcode Scanner | Ethernet Connection | Dynamic Focus Control | IP65 Rated | by SICK
The High Density Barcode Scanner CLV642-0120 is designed for industrial automation, featuring an Ethernet connection and dynamic focus control for precise barcode reading. With a robust IP65-rated aluminum housing, it excels in logistics and manufacturing applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Density Barcode Scanner | Ethernet Connection | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1044874
Alternatively Known As: SICK CLV642 Barcode Scanner, SICK Ethernet Line Scanner, High Density Barcode Reader
Technical Specifications
- Version: High Density
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 30 mm to 345 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.25 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: approx. 250 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 5,000
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, EtherCAT®, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and beeper
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 61mm x 96mm
- Weight: 0.25 kg
Key Features
- High density line scanner with dynamic focus control
- Ethernet connection with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.15 mm to 0.25 mm)
- Laser class 2 with visible red light spot (655 nm)
- Robust aluminum die cast housing with IP65 rating
- Multiple digital and acoustic indicators for status and results
- Supports up to 50 codes per reading interval and 5,000 characters
- Configurable via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup, electrical safety, and compliance with Australian standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient operation with low power consumption (5.5 W)
- Durable housing reduces need for frequent replacements
- Supports digital communication reducing paper-based processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV642-0120 High Density Ethernet Line Scanner is available for immediate purchase, ideal for industrial and manufacturing barcode scanning applications.
