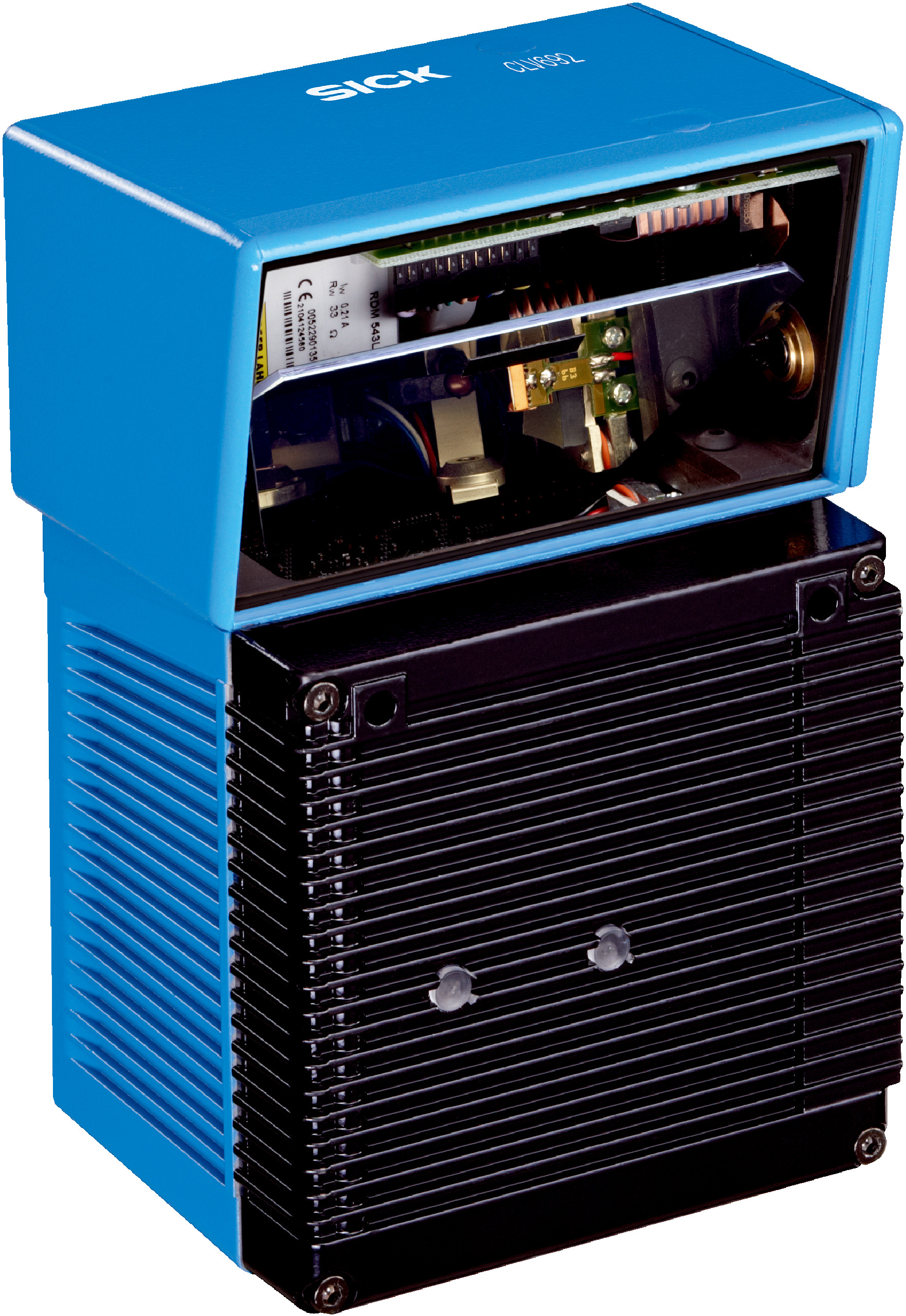

High Density Barcode Scanner | Oscillating Mirror Sensor | Auto Focus | IP65 Rated | by SICK
The High Density Barcode Scanner with an oscillating mirror sensor is perfect for industrial automation and logistics applications. It features auto focus, a reading distance of 400 mm to 1600 mm, and a scanning frequency of 400 Hz to 1200 Hz. Built for durability with an IP65 rated aluminum housing, this scanner ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Density Barcode Scanner | Oscillating Mirror Sensor | Auto Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1056609
Alternatively Known As: High Density Barcode Scanner, Oscillating Mirror Barcode Reader, Industrial Barcode Scanner, SICK CLV692 Scanner
Technical Specifications
- Version: High Density
- Connection type: Depending on the cloning plug used
- Reading field: Oscillating mirror
- Sensor type: Oscillating mirror
- Optical focus: Auto focus (alternative: dynamic focus control)
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Light spot, laser, Visible, Red, 660 nm
- Laser class: 2, complies with 21 CFR 1040.10 except for conformance according to Laser Notice No. 56 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014)
- Aperture angle: ≤ 50°
- Reading distance: 400 mm to 1600 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.17 mm to 0.4 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° (adjustable via software)
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 17 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529/A1 (2002-02))
- Weight: 2,200 g
- MTBF: 100,000 h
- MTTF: 40,000 h (Laser diode)
- Readable code structures: 1D codes
- Barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Code printing process: Label (printed codes)
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs for status and reading rate
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- EMC: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: 0°C to +40°C
- Storage temperature: –20°C to +70°C
- Permissible relative humidity: 90%, Non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- High density version with oscillating mirror sensor type
- Auto focus with alternative dynamic focus control
- Reading distance from 400 mm to 1600 mm
- Scanning frequency between 400 Hz and 1200 Hz
- Supports up to 8 distance configurations
- Laser class 2 with visible red light spot at 660 nm
- IP65 rated aluminum die cast housing with glass window
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP, Serial, CAN, and PROFIBUS DP
- Integrated parameter storage in cloning plug
- 6 digital inputs and 4 digital outputs
- Electromagnetic compatibility and vibration/shock resistance compliant
- Operating temperature range 0°C to +40°C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for package and label scanning
- Quality control and inspection systems
- Automated sorting and identification processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Energy efficient operation with 17 W power consumption
- Complies with laser safety standards minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV692-1000 High Density Oscillating Mirror Barcode Scanner is available for immediate purchase, ideal for industrial automation and logistics applications.
