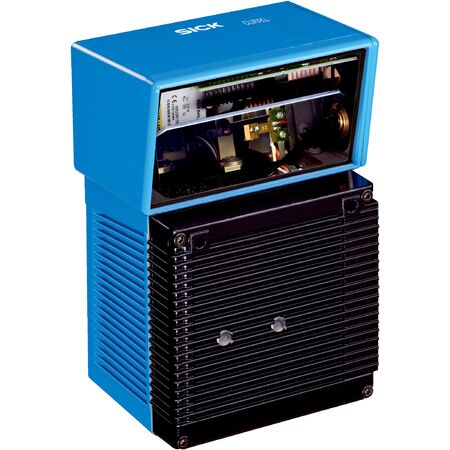

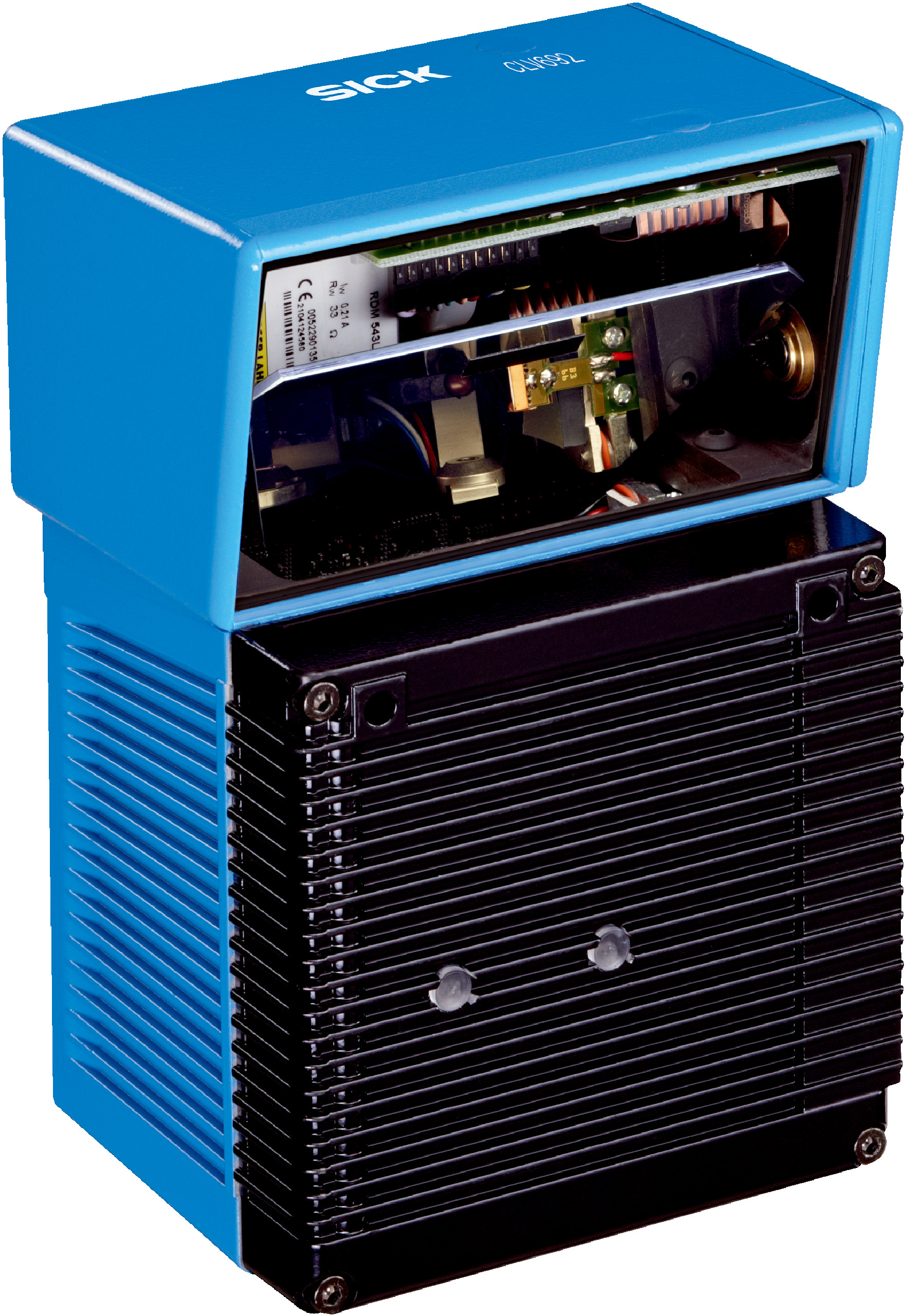

High Density Barcode Scanner | Oscillating Mirror Sensor | Auto Focus | IP65 Rated | by SICK
The High Density Barcode Scanner features an oscillating mirror sensor and auto focus, making it ideal for industrial automation and logistics applications. With a reading distance of 400 mm to 1600 mm and a high scanning frequency of up to 1200 Hz, this scanner ensures efficient and reliable code scanning in various environments, including cold storage. Its durable IP65 rated aluminum housing guarantees longevity and performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Density Barcode Scanner | Oscillating Mirror Sensor | Auto Focus | IP65 Rated | by SICK
Brand: SICK
SKU: 1056611
Alternatively Known As: High Density Barcode Scanner, Oscillating Mirror Barcode Reader, Industrial Barcode Scanner, SICK CLV692 Scanner
Technical Specifications
- Version: High Density
- Sensor type: Oscillating mirror
- Optical focus: Auto focus (alternative: dynamic focus control)
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Light source: Visible red laser, 660 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 400 mm to 1600 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.17 mm to 0.4 mm
- Oscillating mirror functions: Fixed (adjustable position), oscillating (variable or fixed amplitude), one shot
- Oscillation frequency: 0.5 Hz to 4 Hz
- Angle of deflection: –20° to 20° (software adjustable)
- Heating and front screen heating included
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 80 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Weight: 2.2 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Ambient operating temperature: –35 °C to +35 °C
- Storage temperature: –20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 97mm x 182mm x 128mm
- Weight: 2.2 kg
Key Features
- High density version with oscillating mirror sensor
- Auto focus with alternative dynamic focus control
- Reading distance from 400 mm to 1600 mm
- Laser class 2, visible red light at 660 nm
- Oscillating mirror with adjustable angle and frequency
- Front screen heating for cold storage applications
- IP65 rated aluminum die cast housing
- Supports multiple industrial communication interfaces including Ethernet, PROFINET, EtherNet/IP, CAN, PROFIBUS DP, and serial connections
- Integrated parameter storage in cloning plug
- High scanning frequency up to 1200 Hz
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper integration with industrial systems and compliance with safety standards.
Applications
- Industrial automation and manufacturing for barcode reading
- Logistics and warehousing for code scanning
- Cold storage environments requiring reliable barcode reading
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable IP65 housing reduces need for frequent replacements
- Efficient laser technology minimizes power consumption
- Front screen heating ensures reliable operation in cold environments, reducing downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV692-1001 High Density Oscillating Mirror Barcode Scanner is available for immediate purchase, ideal for industrial automation, logistics, and cold storage applications.
