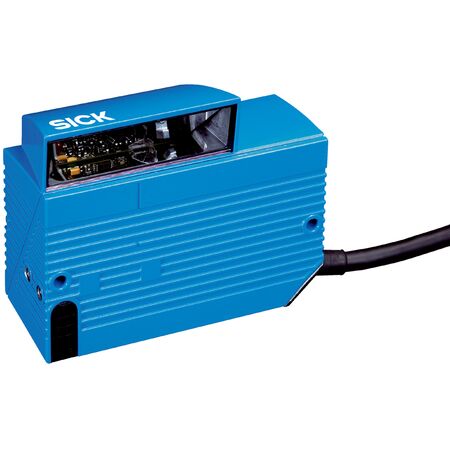

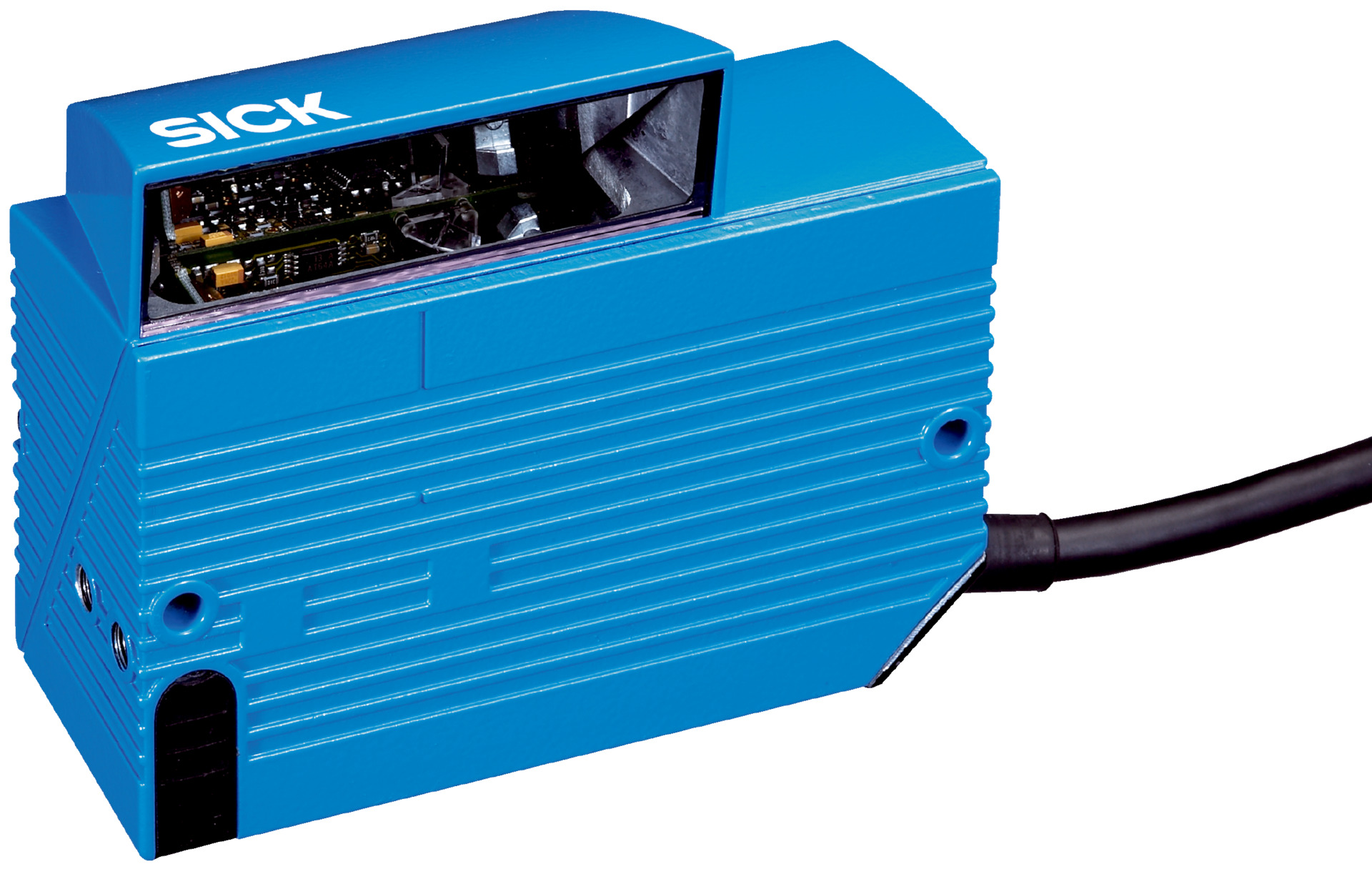

High Density Line Scanner SICK CLV642-2000 | Dynamic Focus Control | IP65 Rated | by SICK
The SICK CLV642-2000 High Density Line Scanner is designed for industrial barcode scanning, featuring dynamic focus control and a visible red laser light source. With a reading distance of 30 mm to 338 mm and support for all current 1D barcode types, it's perfect for automated production lines and logistics applications, ensuring efficient code verification and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Density Line Scanner SICK CLV642-2000 | Dynamic Focus Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1044875
Alternatively Known As: SICK CLV642-2000 Barcode Scanner, SICK High Density Line Scanner, Industrial Barcode Reader SICK CLV642
Technical Specifications
- Version: High Density
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Dynamic focus control
- Light source: Visible red laser, 655 nm
- Light spot: Circular
- Laser class: 2 (IEC 60825-1 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 30 mm to 338 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.15 mm to 0.25 mm
- Supply voltage: 18 V DC to 30 V DC
- Power consumption: 5.5 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65 (EN 60529)
- Protection class: III (EN 61140)
- Weight: 340 g with connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5,000 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Control elements: 2 buttons
- Configuration software: SOPAS ET
- Memory card: Optional MicroSD
- Dimensions (H x L x W): 38mm x 80mm x 96mm
- Weight: 0.34 kg
Key Features
- High density line scanner with dynamic focus control
- Visible red laser light source (655 nm) with circular light spot
- Reading field side angle of 105°
- Reading distance from 30 mm to 338 mm
- Scanning frequency between 400 Hz and 1200 Hz
- Supports all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple communication interfaces including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- Laser class 2 compliant with IEC 60825-1 standards
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Configuration via SOPAS ET software and optional MicroSD memory card
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial barcode scanning and reading
- Automated production lines
- Logistics and packaging code verification
- Quality control in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product lifespan reducing waste
- Low power consumption at 5.5 W supports energy efficiency
- Complies with electromagnetic compatibility standards to minimize interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV642-2000 High Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning and automated production environments.
