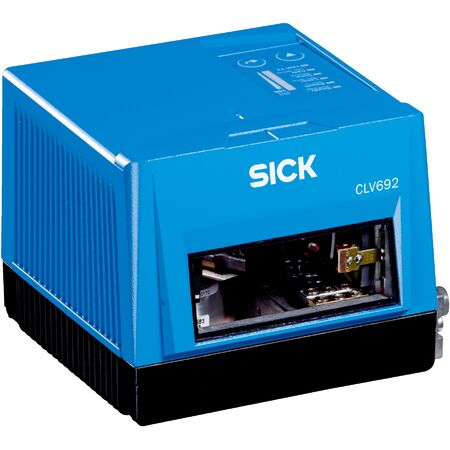

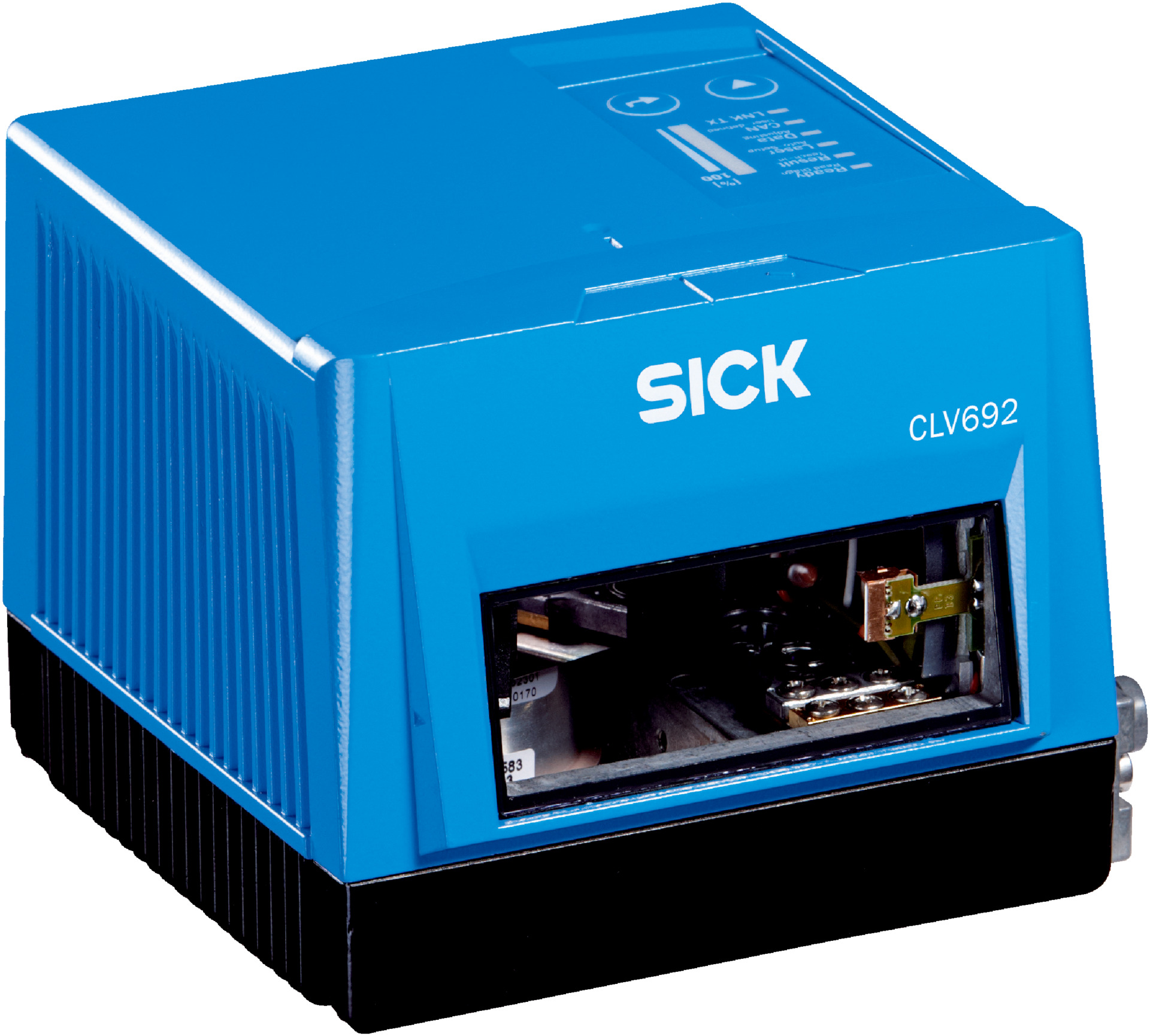

High Density Line Scanner SICK CLV692 | Auto Focus & Dynamic Control | IP65 Rated | by SICK
The High Density Line Scanner SICK CLV692 is designed for industrial barcode scanning, featuring auto focus and dynamic focus control for optimal performance. With a front reading field and laser light spot, it excels in cold storage applications and high-speed code reading in manufacturing and logistics. Its robust IP65 rated aluminum housing ensures durability, making it a reliable choice for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Density Line Scanner SICK CLV692 | Auto Focus & Dynamic Control | IP65 Rated | by SICK
Brand: SICK
SKU: 1056610
Alternatively Known As: SICK CLV692 Barcode Scanner, SICK High Density Line Scanner, Industrial Barcode Reader SICK CLV692
Technical Specifications
- Version: High Density
- Connection type: Depending on the cloning plug used
- Reading field: Front
- Sensor type: Line scanner
- Optical focus: Auto focus or dynamic focus control
- Number of distance configurations: ≤ 8
- Focus adjustment time: ≤ 20 ms
- Focus trigger source: Data interface / Digital inputs
- Light source: Laser, visible red 660 nm, Class 2
- Aperture angle: ≤ 60°
- Reading distance: 400 mm to 1600 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.17 mm to 0.4 mm
- Heating: Included
- Front screen heating: Included
- Cold storage applications: Supported
- Supply voltage: 21.6 V DC to 28.8 V DC
- Power consumption: 78 W
- Housing material: Aluminum die cast
- Housing color: Light blue (RAL 5012)
- Window material: Glass
- Enclosure rating: IP65
- Weight: 1.5 kg
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 5000
- Number of multiple readings: 1 to 100
- Interfaces: Ethernet (TCP/IP), PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP
- Digital inputs: 6
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Control elements: 2 buttons
- Parameter storage: Integrated in cloning plug
- Configuration software: SOPAS ET
- Electromagnetic compatibility: EN 61000-6-4 + A1 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Operating temperature: -35 °C to +35 °C
- Storage temperature: -20 °C to +70 °C
- Permissible relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Barcode print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 94mm x 117mm x 117mm
- Weight: 1.5 kg
Key Features
- High density line scanner with auto focus and dynamic focus control
- Front reading field with laser light spot (660 nm, Class 2 laser)
- Up to 8 distance configurations with focus adjustment time ≤ 20 ms
- Heating and front screen heating for cold storage applications
- Supports reading of 1D codes including Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN
- Multiple interface options including Ethernet, PROFINET, EtherNet/IP™, Serial (RS-232, RS-422, RS-485), CAN, and PROFIBUS DP
- IP65 rated aluminum die cast housing with glass window
- High scanning frequency from 400 Hz to 1200 Hz
- Supports up to 50 codes per reading interval and 5000 characters per reading interval
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical wiring standards to ensure compliance and optimal performance.
Applications
- Industrial barcode scanning and reading
- Cold storage barcode reading
- High-speed code reading in manufacturing and logistics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy efficient operation reduces power consumption
- Supports cold storage applications minimizing need for additional heating equipment
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CLV692-0001 High Density Line Scanner is available for immediate purchase, ideal for industrial barcode scanning applications including cold storage and manufacturing environments.
