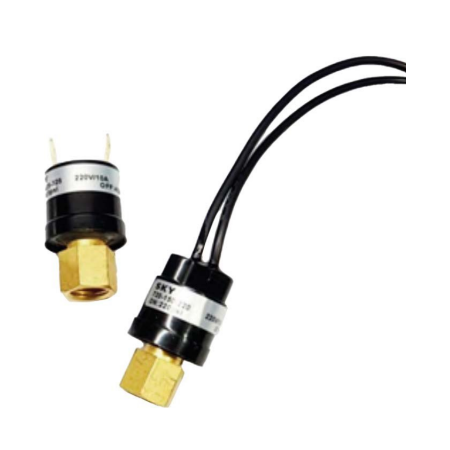

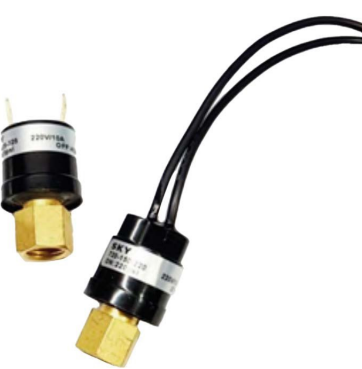

High Flow Rotalock Pressure Switch 720-160-130 | 160 psi Cut-In | 130 psi Cut-Out | Encapsulated Design | by Aspen Pumps
The High Flow Rotalock Pressure Switch 720-160-130 is designed for efficient liquid control and pressure regulation in HVAC systems and water pumps. With a pressure cut-in of 160 psi and cut-out of 130 psi, this encapsulated switch ensures reliable operation and protection. Ideal for professional installation, it meets AS/NZS 4801 standards, making it a durable choice for fluid management applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Flow Rotalock Pressure Switch 720-160-130 | 160 psi Cut-In | 130 psi Cut-Out | Encapsulated Design | by Aspen Pumps
Brand: Aspen Pumps
SKU: 720-160-130
Alternatively Known As: Encapsulated Pressure Switch 720-160-130, Rotalock Pressure Switch, High Flow Pressure Switch
Technical Specifications
- Pressure cut-in: 160 psi
- Pressure cut-out: 130 psi
- Voltage rating: 240V
- Current rating: 10A
- Connection type: Rotalock valve
- Encapsulated switch for protection
- Dimensions (H x L x W): 50mm x 100mm x 70mm
- Weight: 0.3 kg
Key Features
- High flow Rotalock valve connections
- Encapsulated pressure switch design
- Pressure cut-in at 160 psi
- Pressure cut-out at 130 psi
- Lead-wire connection
- Rated for 240V, 10A operation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure correct pressure settings and electrical connections.
Applications
- Liquid control systems requiring pressure regulation
- HVAC systems
- Water pumps and fluid management systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Helps maintain efficient pump operation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Aspen Pumps 720-160-130 Rotalock High Flow Pressure Switch is available now for immediate purchase. Ideal for liquid control and pump pressure regulation applications.
