Trade Discount 20%

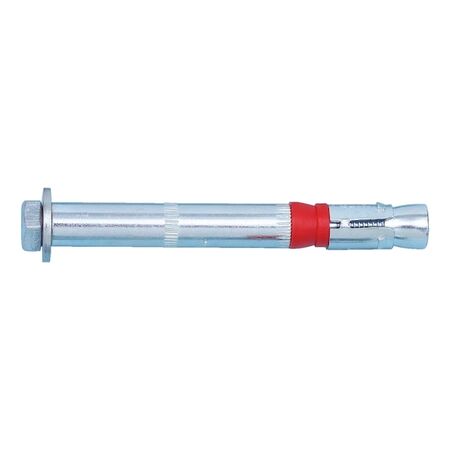

High Performance Anchor with Hexagon Screw | M12x117 | Zinc Plated Steel | Heavy-Duty Load Capacity | @Pack of 20 | by Wurth
High Performance Anchor with Hexagon Screw is designed for heavy-duty anchoring in both cracked and non-cracked concrete. With a robust zinc-plated steel construction, it offers exceptional corrosion resistance and high load-bearing capacities. Ideal for construction and structural applications, this anchor ensures immediate load-bearing capacity without waiting, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M12
- Anchor length: 117 mm
- Max. attachment height: 10 mm
- Width across flats: 19 mm
- Nominal drill-bit diameter: 18 mm
- Drill hole depth: 105 mm
- Effective anchoring depth: 80 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 80 Nm
- Through-hole in the component to be connected: 20 mm
- Dimensions (H x L x W): 117mm x 117mm x 19mm
- Weight: 0.3 kg
Key Features
- Heavy-duty anchor for high loads in cracked and non-cracked concrete
- Zinc-plated steel for corrosion resistance
- High load-bearing capacities
- Time-saving push-through installation
- Immediate load-bearing capacity with no waiting
- Torque-controlled expanding galvanized steel anchor
- Proof of Performance ETA-02/0031 certified
- Fire resistance according to DIN 1363-1:1999-10 and TR020
Professional Installation Requirements
- Installation should be performed by a qualified professional following the ETA-02/0031 guidelines and torque specifications for safety and performance.
Applications
- Heavy-duty anchoring in cracked and non-cracked concrete
- Suitable for seismic performance category C1 and C2
- Fire-resistant applications with ratings F30, F60, F90, F120
- Use in construction and structural fastening requiring high load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements, minimizing waste
- High load capacity reduces material usage by requiring fewer anchors
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth High Performance Anchor with Hexagon Screw M12x117 is available for immediate purchase, ideal for heavy-duty concrete anchoring in construction and structural applications.
