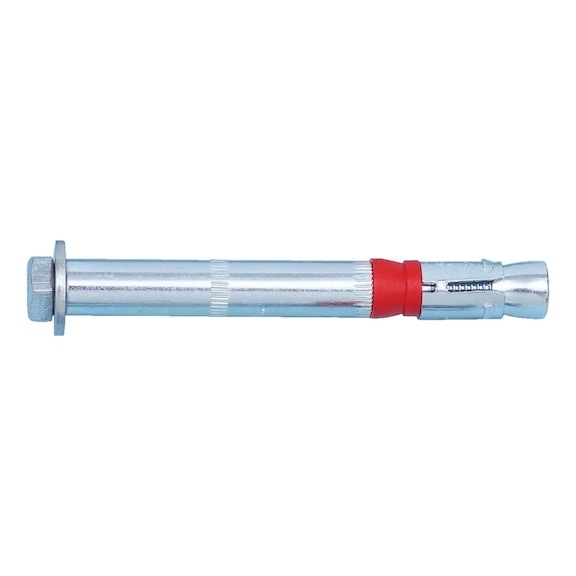

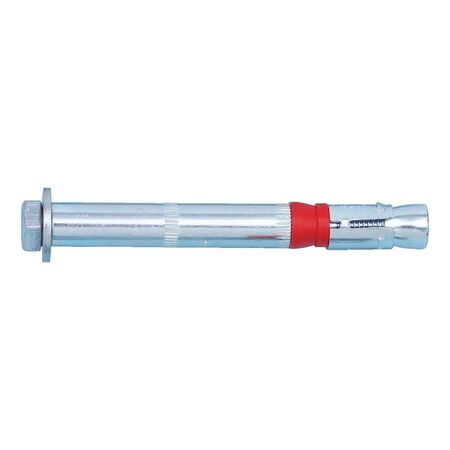

High Performance Anchor M8 | Zinc Plated Steel | Heavy-Duty for High Loads | @Pack of 50 | by Wurth
High Performance Anchor M8 is designed for heavy-duty anchoring in both cracked and non-cracked concrete. With its zinc-plated steel construction, it offers excellent corrosion resistance and immediate load-bearing capacity, making it ideal for construction and structural applications. This anchor is perfect for professionals seeking reliable performance in seismic conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M8
- Anchor length: 107 mm
- Max. attachment height: 30 mm
- Width across flats: 13 mm
- Nominal drill-bit diameter: 12 mm
- Drill hole depth: 80 mm
- Effective anchoring depth: 60 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 30 Nm
- Through-hole in the component to be connected: 14 mm
- Dimensions (H x L x W): 107mm x 107mm x 13mm
- Weight: 0.2 kg
Key Features
- Heavy-duty anchor for high loads in cracked and non-cracked concrete
- Zinc-plated steel for corrosion resistance
- High load-bearing capacities
- Time-saving push-through installation
- Immediate load-bearing capacity with no waiting
- Torque-controlled expanding galvanised steel anchor
- Proof of Performance ETA-02/0031 certified
- Fire resistance ratings F30, F60, F90, F120 and R30, R60, R90, R120 according to DIN 1363-1:1999-10
Professional Installation Requirements
- Installation should be performed by a qualified professional following the ETA-02/0031 guidelines and torque specifications to ensure safety and performance.
Applications
- Heavy-duty anchoring in cracked and non-cracked concrete
- Suitable for seismic performance category C1 and C2
- Fire-resistant applications with ratings F30 to F120 and R30 to R120
- Ideal for construction and structural fastening requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel construction extends product life and reduces replacement frequency
- Certified fire resistance enhances building safety and longevity
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
The Wurth High Performance Anchor with Hexagon Screw M8x105 is available for immediate purchase, ideal for heavy-duty concrete anchoring in construction and structural applications.
