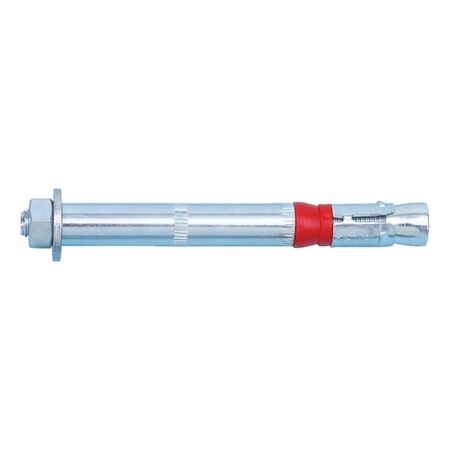

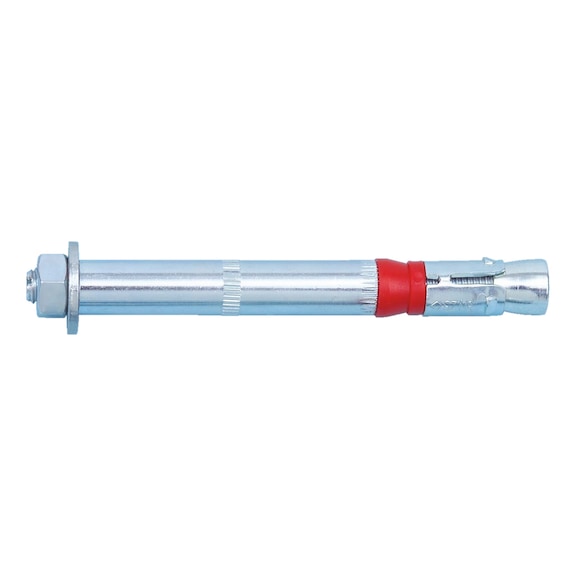

High-Performance Anchor with Threaded Bolt | Heavy-Duty for High Loads | Zinc Plated Steel | @Pack of 25 | by Wurth
High-Performance Anchor with Threaded Bolt is designed for heavy-duty applications, providing reliable support in both cracked and non-cracked concrete. With its zinc-plated steel construction, this anchor offers excellent corrosion resistance and high load-bearing capacities, making it ideal for structural and seismic performance. Perfect for professional installations, it ensures immediate load-bearing capacity without waiting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 111 mm
- Max. attachment height: 15 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter: 15 mm
- Drill hole depth: 95 mm
- Effective anchoring depth: 71 mm
- Torque during anchoring: 50 Nm
- Through-hole diameter in component: 17 mm
- Material: Steel
- Surface finish: Zinc plated
- Dimensions (H x L x W): 111mm x 111mm x 17mm
- Weight: 0.3 kg
Key Features
- Heavy-duty anchor for high loads in cracked and non-cracked concrete
- Zinc-plated steel construction for corrosion resistance
- High load-bearing capacities
- Time-saving push-through installation
- Immediate load-bearing capacity with no waiting
- Torque-controlled expanding galvanised steel anchor
- Proof of Performance ETA-02/0031 certified
- Fire resistance according to DIN 1363-1:1999-10 and TR020
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct torque application and compliance with structural safety standards.
Applications
- Suitable for high load applications in cracked and non-cracked concrete
- Ideal for structural and seismic performance category C1 and C2 attachments
- Used in fire-resistant installations with ratings F30, F60, F90, F120 and R30, R60, R90, R120
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces the need for frequent replacements, minimizing waste
- Efficient installation reduces energy and resource consumption on site
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
Wurth High-Performance Anchor with Threaded Bolt 25 PCS is available for immediate purchase, ideal for construction and structural applications requiring high load-bearing anchors.
