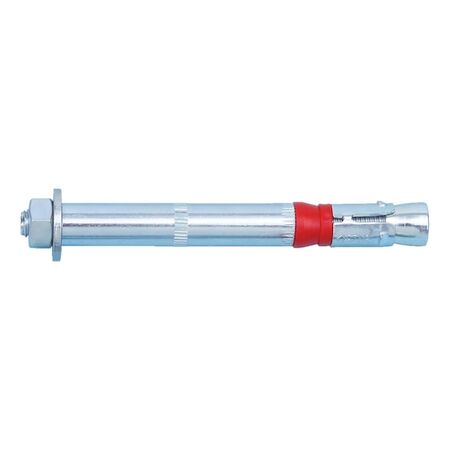

High-Performance Anchor with Threaded Bolt | M10 Diameter | Zinc Plated Steel | @Pack of 25 | by Wurth
High-Performance Anchor with Threaded Bolt is designed for heavy-duty anchoring in both cracked and non-cracked concrete. With a robust M10 diameter and zinc-plated steel construction, it offers excellent corrosion resistance and high load-bearing capacities. Ideal for construction and structural fastening, this anchor ensures immediate load-bearing capacity, making it perfect for seismic performance applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M10
- Anchor length: 141 mm
- Max. attachment height: 45 mm
- Width across flats: 17 mm
- Nominal drill-bit diameter: 15 mm
- Drill hole depth: 95 mm
- Effective anchoring depth: 71 mm
- Torque during anchoring: 50 Nm
- Through-hole diameter in component: 17 mm
- Material: Steel
- Surface finish: Zinc plated
- Dimensions (H x L x W): 141mm x 141mm x 17mm
- Weight: 0.5 kg
Key Features
- Heavy-duty anchor for high loads in cracked and non-cracked concrete
- Zinc-plated steel construction for corrosion resistance
- High load-bearing capacities
- Time-saving push-through installation
- Immediate load-bearing capacity with no waiting
- Torque-controlled expanding galvanised steel anchor
- Proof of Performance ETA-02/0031 certified
- Fire resistance according to DIN 1363-1:1999-10 and TR020
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct torque application and compliance with structural safety standards.
Applications
- Heavy-duty anchoring in cracked and non-cracked concrete
- Suitable for seismic performance category C1 and C2
- Fire-resistant applications with ratings F30, F60, F90, F120
- Construction and structural fastening requiring immediate load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable zinc-plated steel reduces need for frequent replacements, minimizing waste
- Efficient installation reduces construction time and associated environmental impact
Warranty Information
Warranty details available upon request from Wurth, typically covering manufacturing defects.
Available Now
Wurth High-Performance Anchor with Threaded Bolt 25 PCS is available for immediate purchase, ideal for heavy-duty construction and structural anchoring applications.
