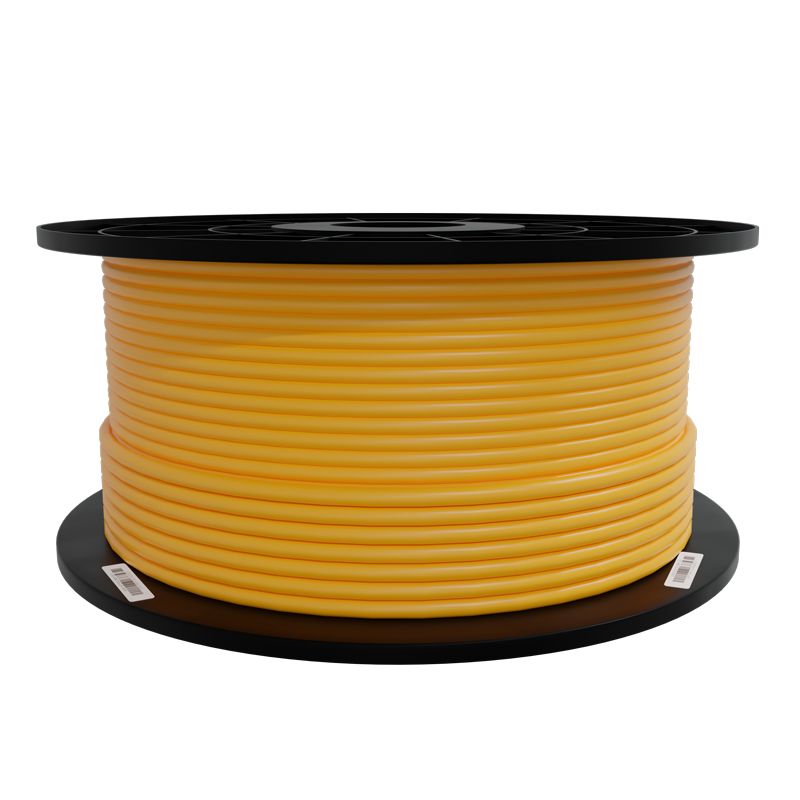

CERTECH High Performance Speaker Cable, 4 Core 16 AWG, LSZH Jacket, 152m

High Performance Speaker Cable 4 Core 16 AWG | LSZH Jacket | 152m by Certech

BRAND: CERTECH

SKU: SC164CLSZH152

$366.50 List price: $452.40

Free pick up (over 25 kg and over 1 meter)

For delivery quote message

30 Days Return Delivery Options

High performance speaker cable with 4 core 16 AWG and LSZH jacket—ideal for home and professional audio systems. Built for superior sound quality, with low smoke emissions for safety.

Description
Attachments

Product Name/Title: High Performance Speaker Cable 4 Core 16 AWG | LSZH Jacket | 152m by Certech

Brand: CERTECH

SKU: SC164CLSZH152

Alternatively Known As: 16 AWG Speaker Cable, 4 Core Speaker Wire, LSZH Speaker Cable

Technical Specifications

Conductor Material: Annealed Bare Copper, Oxygen Free Copper
Construction: 65x0.16±0.005mm
Nominal O.D: 1.49mm
Nominal Cross Section Area: 1.31 mm2
AWG: 16
Max. DCR @ 20C: 14.3 ohm / km
Insulation Material: Coloured LSZH
Nominal Wall Thickness: 0.30mm
Colour Code: Red, Black, Green & White, 4 Cores Stranded
Sheath Material: Yellow LSZH Jacket, RAL1021
External O.D: 5.30±0.30mm
Nominal Wall Thickness: 0.55 ±0.05mm
Operating Temperature Range: -20°C to 75°C
Cable Weight: 76kg/km
Dimensions (H x L x W): 2.1mm x 152000mm x 5.3mm
Weight: 76 kg

Key Features

4 Core 16 AWG speaker cable with LSZH jacket
Annealed Bare Copper, Oxygen Free Copper conductor
Colour coded cores: Red, Black, Green & White
Yellow LSZH jacket (RAL1021) for safety and durability
Operating temperature range from -20°C to 75°C

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Residential: Home audio systems
Commercial: Professional audio installations
General: Any application requiring high-quality speaker connections

Standards & Compliance

AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment

Environmental Benefits

Low Smoke Zero Halogen (LSZH) jacket reduces harmful emissions in case of fire.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CERTECH High Performance Speaker Cable, 4 Core 16 AWG, LSZH Jacket, 152m is available now for immediate purchase. Ideal for both residential and commercial audio applications.

Specification Sheet (sc164clszh152_u.pdf, 605 Kb) [Download]
