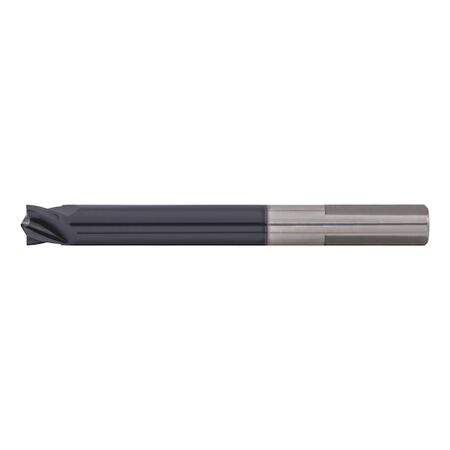

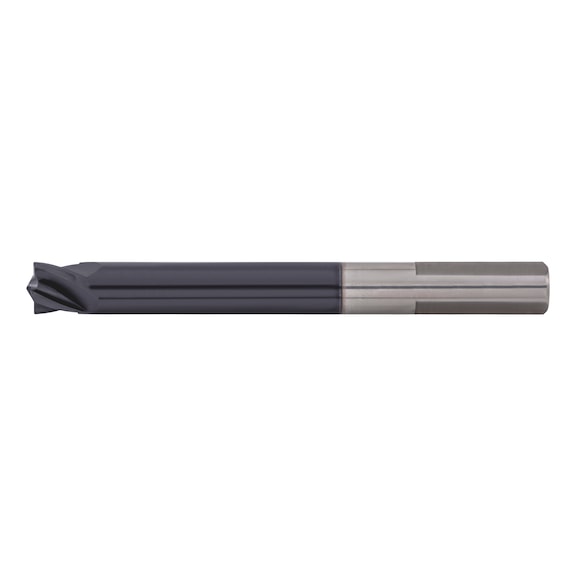

High-Performance Spot Weld Cutter | Solid Carbide | MAGMA Coating | 6mm Diameter | by Wurth
The High-Performance Spot Weld Cutter is designed for precision removal of spot welds on body panels, featuring a robust solid carbide construction and MAGMA multilayer coating for enhanced durability. Ideal for automotive professionals, this cutter offers exceptional thermal stability and lasts up to 9 times longer than standard options, ensuring efficient and reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Performance Spot Weld Cutter | Solid Carbide | MAGMA Coating | 6mm Diameter | by Wurth
Brand: Wurth
SKU: 710789060
Alternatively Known As: Spot Weld Drill, Spot Weld Removal Cutter, Body Panel Spot Weld Cutter, High-Performance Spot Weld Cutter
Technical Specifications
- Quality: ZEBRA-Premium
- Cutting material: Solid Carbide (SC)
- Surface: MAGMA multilayer coating
- Suitable for tensile strength up to: 1500 N/mm²
- Diameter: 6 mm
- Length: 66 mm
- Chip flute length: 28 mm
- Shank diameter: 6 mm
- Shank style: 3-face shank
- Type: DIN 1897 solid carbide multi-performance
- Service life rating: 4 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 4 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Dimensions (H x L x W): 6mm x 66mm x 6mm
- Weight: 0.1 kg
Key Features
- 4 cutting edges for demanding work
- High thermal and oxidation stability up to 800 °C
- Extremely robust and abrasion-resistant with hardness approximately 3,500 HV
- Lasts up to 9 times longer than standard spot weld cutters
- Lasts up to twice as long as traditional coatings such as TiN
- MAGMA multilayer coating for enhanced durability
- 3-face shank design for faster, more comfortable use with hand-held drills
- No drill chuck rotation, optimal power transmission, and drill chuck protection
Professional Installation Requirements
- Use by trained professionals or under supervision is recommended to ensure safety and optimal performance.
Applications
- Removing spot welds on body panels including high-strength components
- Suitable for use on A-pillar, B-pillar, car door sill protector and various vehicle types
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during use
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific terms.
Available Now
The Wurth Universal High-Performance Spot Weld Cutter is available for immediate purchase, ideal for automotive body repair and machining applications.
