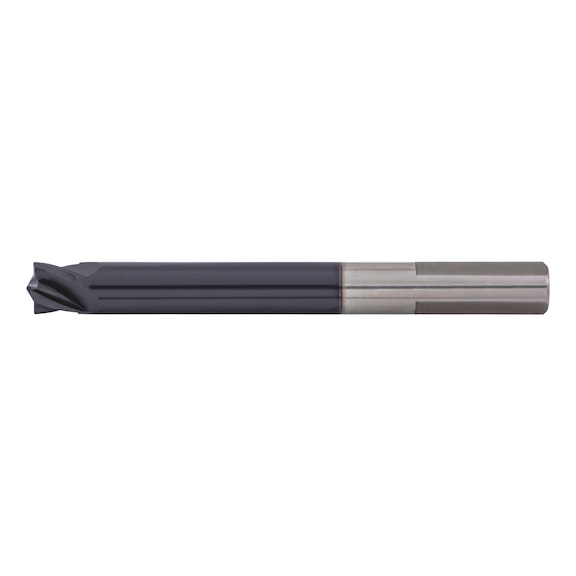

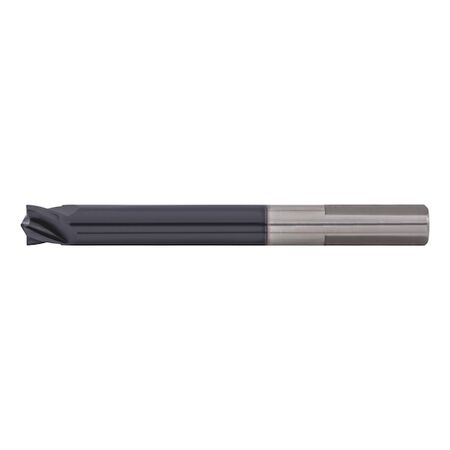

High-Performance Spot Weld Cutter | Solid Carbide | MAGMA Coating | 8mm Diameter | by Wurth
The High-Performance Spot Weld Cutter is designed for removing spot welds on body panels, featuring a solid carbide construction and MAGMA multilayer coating for enhanced durability. With 4 cutting edges and high thermal stability, it’s perfect for automotive professionals seeking efficiency and longevity in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Performance Spot Weld Cutter | Solid Carbide | MAGMA Coating | 8mm Diameter | by Wurth
Brand: Wurth
SKU: 710789080
Alternatively Known As: Spot Weld Cutter, Spot Weld Drill Bit, Body Panel Spot Weld Remover, High-Performance Spot Weld Cutter
Technical Specifications
- Quality: ZEBRA-Premium
- Cutting material: Solid Carbide (SC)
- Surface: MAGMA multilayer coating
- Suitable for tensile strength up to: 1500 N/mm²
- Diameter: 8 mm
- Length: 79 mm
- Chip flute length: 37 mm
- Shank diameter: 8 mm
- Shank style: 3-face shank
- Type: DIN 1897 solid carbide multi-performance
- Service life rating: 4 of 4 points
- Drilling speed rating: 4 of 4 points
- Bore hole quality rating: 4 of 4 points
- Versatility rating: 4 of 4 points
- Drilling behaviour rating: 4 of 4 points
- Dimensions (H x L x W): 8mm x 79mm x 8mm
- Weight: 0.1 kg
Key Features
- 4 cutting edges for demanding work
- High thermal and oxidation stability up to 800 °C
- Extremely robust and abrasion-resistant with hardness approximately 3,500 HV
- Lasts up to 9 times longer than standard spot weld cutters
- Lasts up to twice as long as traditional coatings such as TiN
- MAGMA multilayer coating for enhanced durability
- 3-face shank design for faster, more comfortable work with hand-held drills
- No drill chuck rotation, optimal power transmission, and drill chuck protection
Professional Installation Requirements
- Use by trained professionals or experienced technicians recommended for safety and optimal performance.
Applications
- Removing spot welds on body panels including high-strength components
- Suitable for use on A-pillar, B-pillar, car door sill protector and other vehicle body parts
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Longer tool life reduces waste and frequency of replacements
- Efficient cutting reduces energy consumption during use
Warranty Information
Wurth standard warranty applies; covers manufacturing defects.
Available Now
The Wurth Universal High-Performance Spot Weld Cutter is available now for immediate purchase. Ideal for automotive body repair and machining applications.
