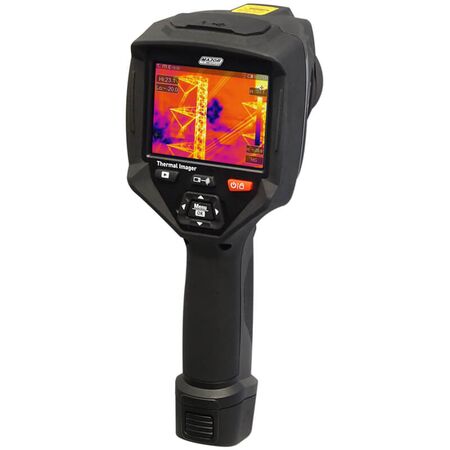

High Performance Thermal Imager | 384 x 288 Resolution | Built-in Laser Distance Meter & 32X Digital Zoom | -20°C to 650°C | Majortech
Experience precision with the High Performance Thermal Imager featuring a 384 x 288 resolution and built-in laser distance meter—ideal for HVAC, automotive, and food service inspections. With a temperature range of -20°C to 650°C and 32X digital zoom, this handheld device is perfect for quick and accurate thermal assessments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Performance Thermal Imager | 384 x 288 Resolution | Built-in Laser Distance Meter & 32X Digital Zoom | -20°C to 650°C | Majortech
Brand: Majortech
SKU: MTi60
Alternatively Known As: Thermal Imaging Camera, Infrared Camera, Thermal Imager, IR Camera, Thermal Imaging Device
Technical Specifications
- Resolution: 384 x 288 pixels at 50Hz
- Field of View: 17° x 12.7° at 0.5m
- Spatial Resolution (IFOV): 0.77 mrad
- Thermal Sensitivity/NETD: <0.08° at 30°C (80mK)
- Focus Mode: Manual
- Zoom: 1-32x continuous digital zoom
- Focal Length: 22mm
- Spectral Range: 8-14 µm
- Display: 3.5 inch LCD touch screen, 640 x 480 pixels
- Image Modes: IR image, Visual image, Picture in Picture, Auto Fusion, Laser Distance
- Colour Palettes: Iron, Rainbow, Grey, Grey inverted, Brown, Blue red, Hot cold, Feather, Above/Below Alarm, Zone Alarm
- Temperature Range: Low -20°C to 150°C, High 0°C to 650°C
- Temperature Accuracy: ±2°C or ±2% of reading (environment 10°C - 35°C)
- Spot Measurements: Centre spot plus 3 manual spots
- Line Measurements: 2 lines (horizontal or vertical)
- Area Measurements: 3 areas with max/min/average
- Automatic Hot/Cold Detection
- Emissivity Correction: Variable 0.01 to 1.0 with standard emissivity table
- Measurement Corrections: Emissivity, Reflective temp, Ambient temp, Distance compensation, Relative humidity, Infrared compensation
- Laser Distance Meter Range: 0.05 to 30m
- Video Storage: 8GB Micro SD card, 3.4GB internal EMMC
- Video Format: MPEG-4, 640 x 480 @ 30fps
- Image Format: JPEG or .HIR files including measurement data
- Built-in Camera: 5 Megapixels
- Interfaces: USB-mini, HDMI
- Power Source: Lithium-ion battery, 4 hours operating time
- Charging: In-camera AC adapter
- Enclosure: Over moulded casing
- Weight: 860g
- Dimensions: 260 x 101 x 120 mm
- Dimensions (H x L x W): 101mm x 120mm x 260mm
- Weight: 0.86 kg
Key Features
- 384 x 288 pixel resolution at 50Hz
- Built-in Laser Distance meter
- Wi-Fi for image transfer and live video
- Manual focus with large bright 3.5 inch touch screen
- Up to 3 manual spot or area measurements
- Hot/Cold spot marker automatically finds hottest and coldest spots
- Adjustable zone alarm
- Temperature range from -20°C to 650°C
- 32X continuous digital zoom
- HDMI video output
- On-screen adjustable level and span
- Over moulded casing for durability
- Lithium-ion battery with 4 hours operating time
- In-camera charging system
Professional Installation Requirements
- No professional installation required; device is handheld and ready to use out of the box with user manual guidance.
Applications
- Plant / General Maintenance
- HVAC/R
- Transportation / Automotive
- Cooling and Reheating
- Serving areas and Cold storage
- Food service equipment
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables early detection of equipment faults to prevent energy waste and reduce emissions
- Non-contact temperature measurement reduces the need for invasive inspections
- Supports energy efficiency improvements in HVAC and industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to Majortech for specific warranty details.
Available Now
The Majortech MTi60 Thermal Imager is available now for immediate purchase. Ideal for industrial, HVAC, automotive, and food service equipment inspections.
