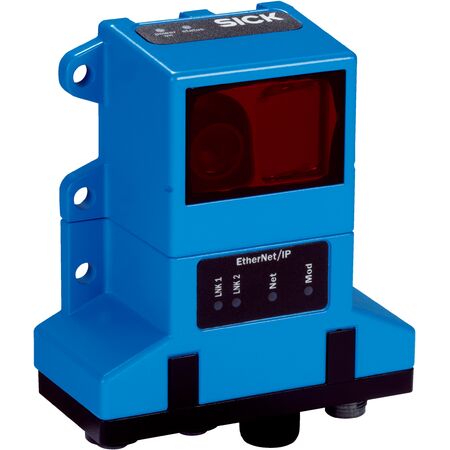

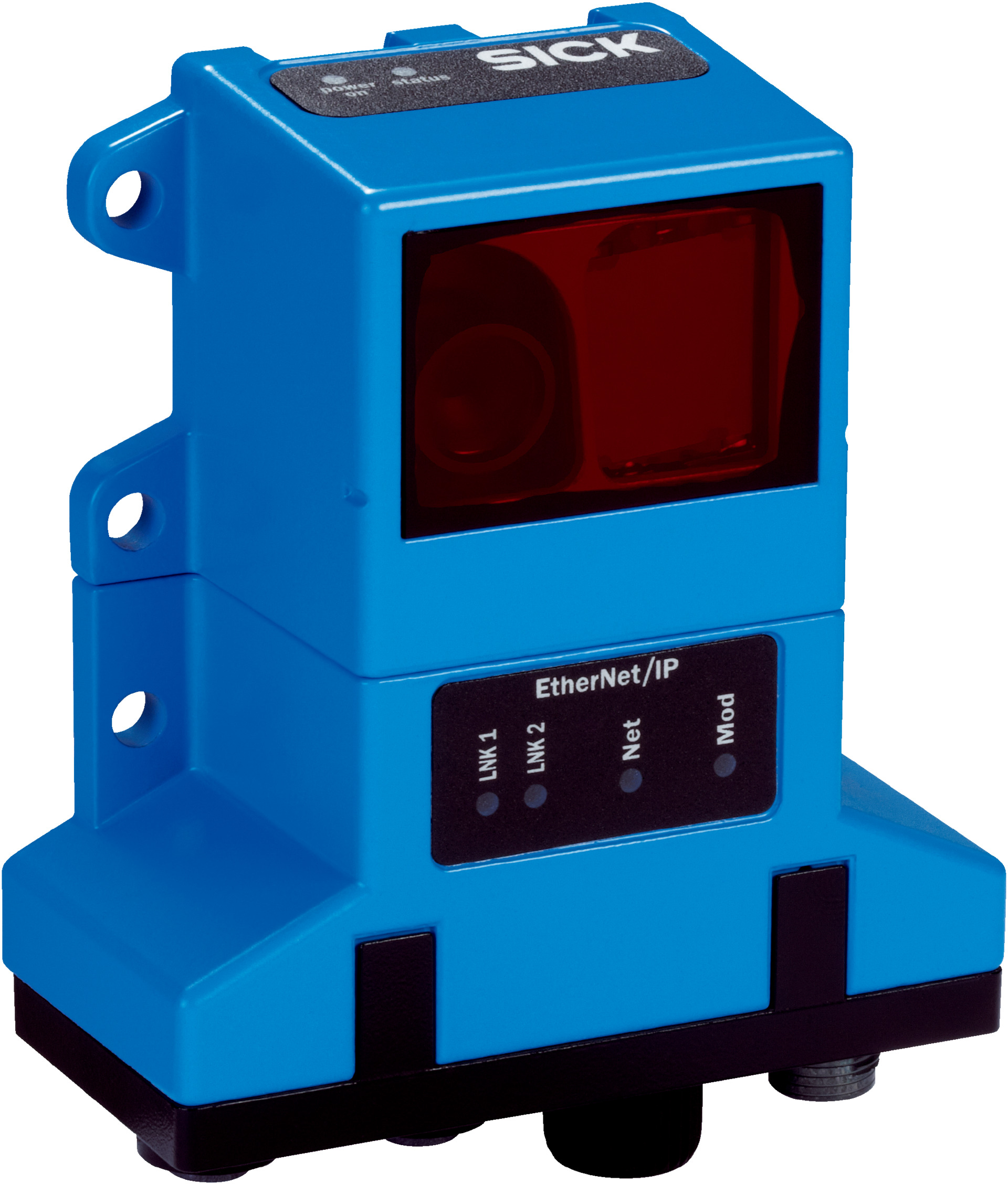

High Precision Optical Measurement Sensor OLM200-1008 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
The OLM200-1008 high precision optical measurement sensor is designed for industrial automation, offering a measuring range of up to 10,000 m with resolution options from 0.1 mm to 100 mm. With a fast response time of 10 ms and robust IP65 enclosure, it’s perfect for applications in material handling, robotics, and quality control, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Precision Optical Measurement Sensor OLM200-1008 | 10,000 m Range | 0.1 mm Resolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1058813
Alternatively Known As: OLM200-1008 Measurement Sensor, SICK Position Sensor, Industrial Distance Sensor, High Precision Optical Sensor
Technical Specifications
- Measuring range: 0 m to 10,000 m
- Resolution: 0.1 mm, 1 mm, 10 mm, 100 mm
- Repeatability: 0.15 mm
- Response time: 10 ms
- Output time: 2.5 ms
- Light source: Red LED
- Accuracy of speed output: ±5 mm/s
- Max. movement speed: 7 m/s
- Reading distance: 100 mm ± 20 mm
- Barcode width: 30 mm
- Supply voltage: DC 18 V to 30 V
- Power consumption: < 5.5 W
- Enclosure rating: IP65
- Protection class: III
- Operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +75°C
- EMC standards: EN 61000-6-2, EN 61000-6-4
- Vibration resistance: DIN/EN 60068-2-6, DIN/EN 60068-2-64
- Shock resistance: DIN/EN 60068-2-27
- Dimensions (H x L x W): 80mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Measuring range up to 10,000 m
- High resolution options: 0.1 mm to 100 mm
- Fast response time of 10 ms with output time of 2.5 ms
- Red LED light source for reliable detection
- Multiple digital outputs with PNP/NPN types
- Robust IP65 rated enclosure for harsh environments
- Wide operating temperature range from -30°C to +60°C
- High vibration and shock resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Industrial automation for precise position and speed measurement
- Material handling and conveyor systems
- Robotics and manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 61000 – Electromagnetic compatibility (EMC) standards
Environmental Benefits
- Low power consumption under 5.5 W reduces energy usage
- Durable IP65 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty of 12 months against defects in materials and workmanship.
Available Now
The SICK OLM200-1008 sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
