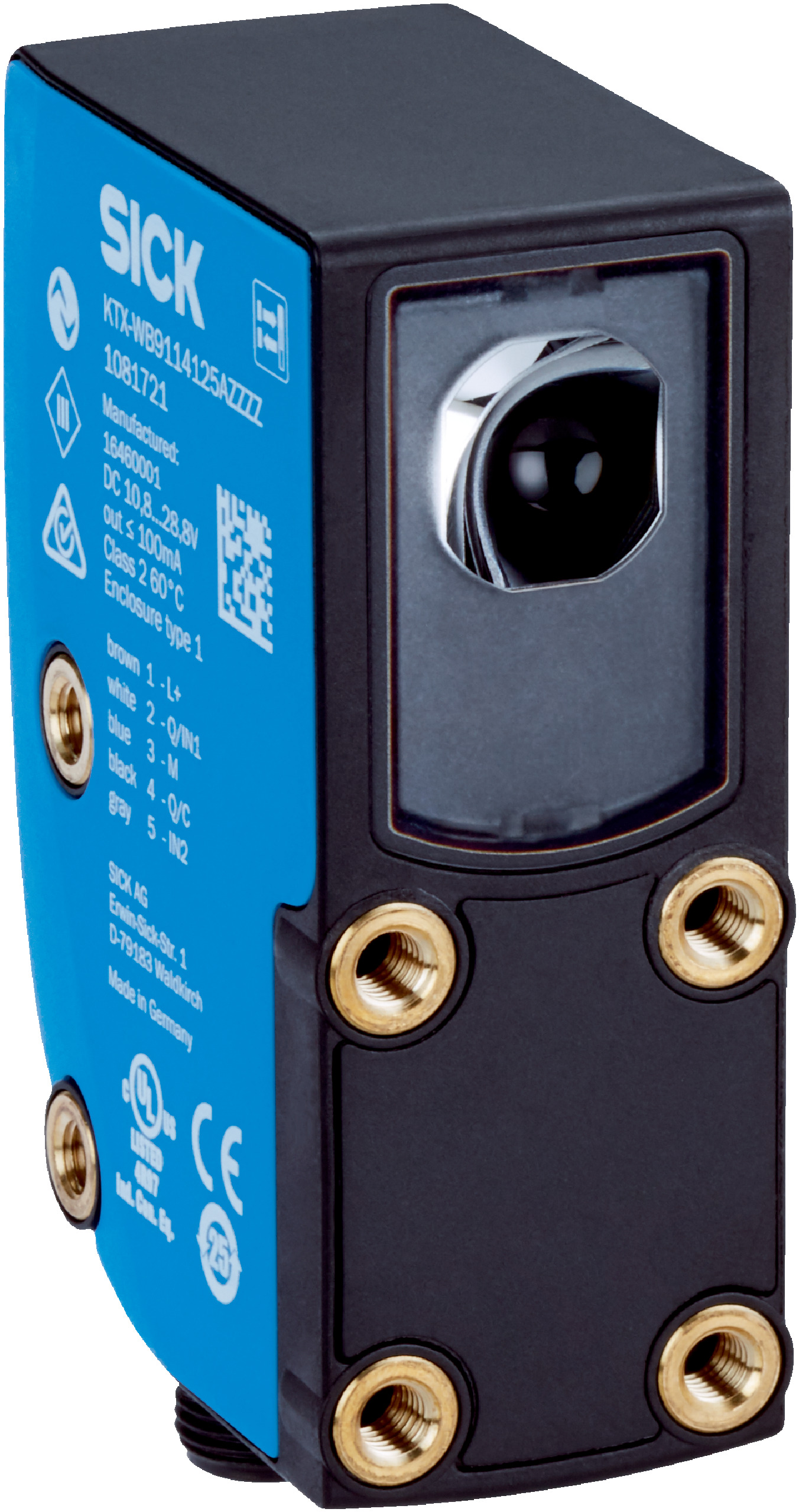

High Precision RGB Sensor | 13 mm Sensing Distance | IP67 Rated | by SICK
The High Precision RGB Sensor is designed for industrial automation, offering a sensing distance of up to 13 mm and an LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm. Ideal for object detection and quality control systems, this sensor features a robust IP67 enclosure, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 13 mm with ±5 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light spot size: 0.9 mm x 3.8 mm, vertical direction
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 70 kHz
- Response time: 3 µs
- Switching output: Push-pull PNP/NPN, max output current 100 mA
- Protection class: III with reverse polarity and short-circuit protection
- Connection type: Plug, M12, 5-pin
- Housing material: VISTAL®, Optics material: COP
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g / 11 ms according to IEC 60068-2-27
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- High precision sensing with a sensing distance up to 13 mm
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from the long side of housing with a small light spot size of 0.9 mm x 3.8 mm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Push-pull PNP/NPN switching output with light/dark switching function
- Adjustable delay time and standard key lock setting
- IO-Link interface for advanced communication and diagnostics
- Robust housing with IP67 enclosure rating suitable for harsh environments
- Wide ambient operating temperature range from -20 °C to +60 °C
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for high precision sensing
- Object detection in manufacturing processes
- Quality control systems requiring accurate light/dark switching
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WB9114125AZZZZ sensor is available for immediate purchase, ideal for high precision industrial sensing applications.
