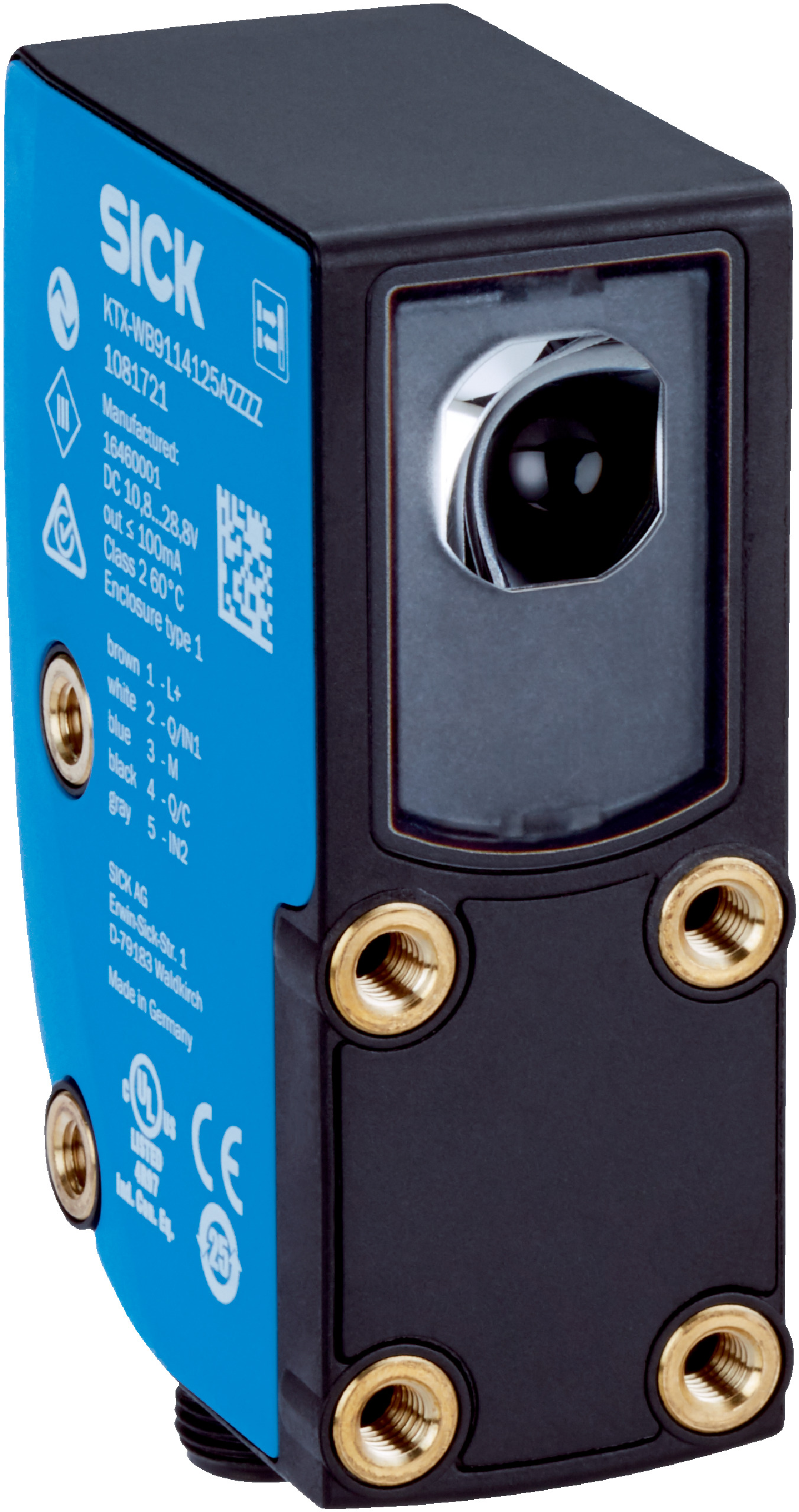

High Precision RGB Sensor | ±5 mm Tolerance | IP67 Rated | 3 µs Response Time | by SICK
The High Precision RGB Sensor is designed for industrial automation, offering a sensing distance tolerance of ±5 mm and an LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for quality control systems and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 13 mm with ±5 mm tolerance
- Light source: LED RGB with wavelengths 470 nm, 525 nm, 625 nm
- Light emission from long side of housing with 0.9 mm x 3.8 mm spot size
- Switching output: NPN, HIGH = VS, LOW ≤ 3 V, max output current 100 mA
- Supply voltage: 10.8 V DC to 28.8 V DC with ripple ≤ 5 V pp
- Current consumption: < 100 mA
- Switching frequency: 70 kHz
- Response time: 3 µs
- Protection class: III with reverse polarity and short-circuit protection
- Housing material: VISTAL®, Optics material: COP
- Connection: Plug M12, 5-pin
- Enclosure rating: IP67
- Operating temperature: –20 °C to +60 °C
- Storage temperature: –25 °C to +75 °C
- Shock load: 30 g/11 ms per IEC 60068-2-27
- Safety-related parameters MTTFD: 291 years
- Dimensions (H x L x W): 53mm x 79mm x 30mm
- Weight: 0.1 kg
Key Features
- High precision sensing with a distance tolerance of ±5 mm
- LED RGB light source with wavelengths of 470 nm, 525 nm, and 625 nm
- Adjustable delay time and multiple teach-in modes including 1-point, 2-point, dynamic, and auto
- NPN switching output with a maximum output current of 100 mA
- Robust housing made of VISTAL® with COP optics material
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from –20 °C to +60 °C
- Short response time of 3 µs and switching frequency of 70 kHz
- Reverse polarity and short-circuit protected output
- Plug connection type M12, 5-pin
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for precise object detection
- Quality control systems requiring high accuracy
- Robotics and manufacturing process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10.8 V DC to 28.8 V DC
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTX-WN91141252ZZZZ sensor is available for immediate purchase, ideal for high precision industrial sensing applications.
