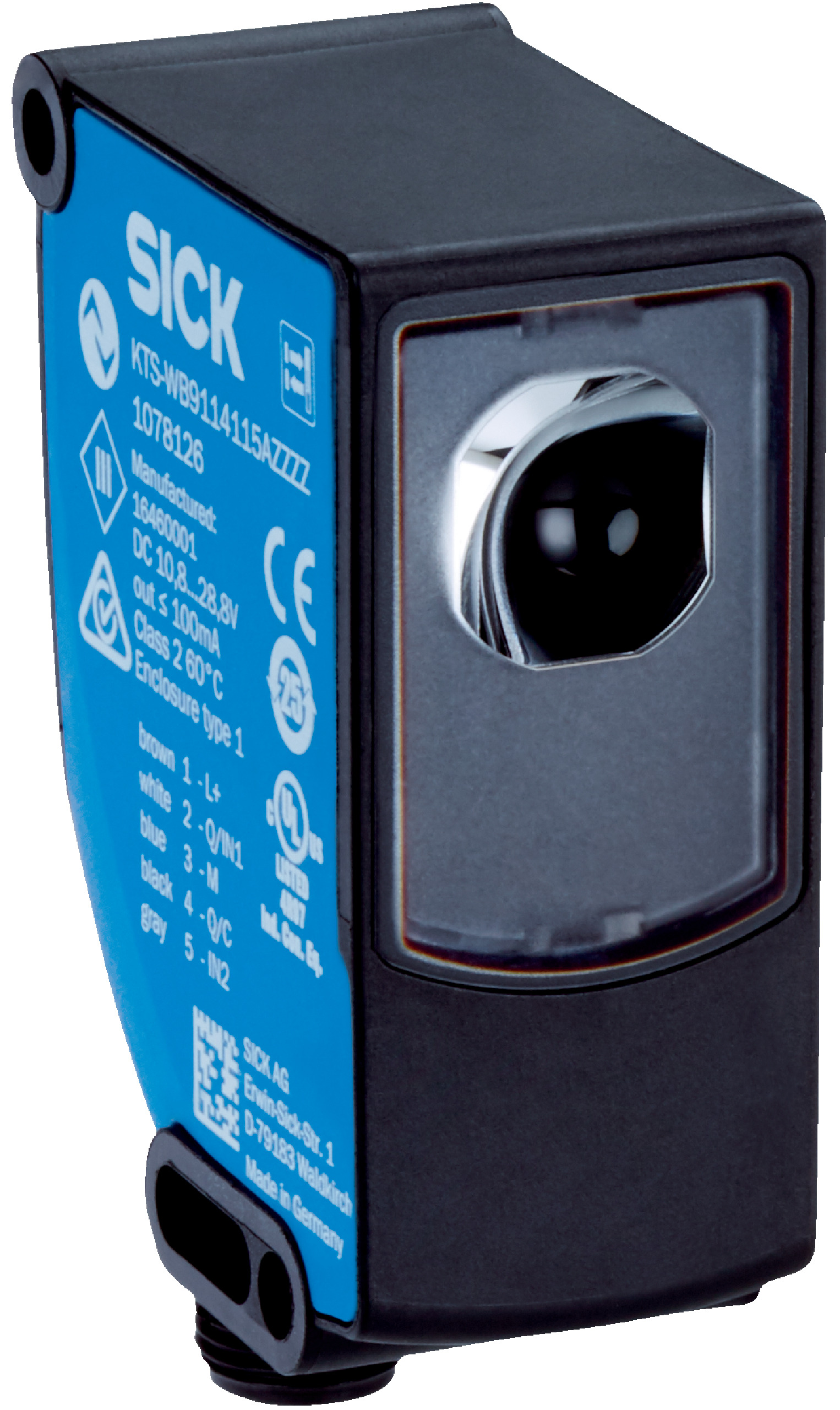

High Precision RGB Sensor | IP67 Rated | IO-Link Standard | 25mm Sensing Distance | by SICK
The High Precision RGB Sensor is designed for industrial automation, featuring a sensing distance of up to 25 mm with ±6 mm tolerance. With an IP67 rating, it ensures robust performance in harsh environments. Ideal for process control applications, this sensor offers light/dark switching output and multiple teach-in modes, making it a versatile choice for precision sensing needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 25 mm with ±6 mm tolerance
- Light source: LED RGB (470 nm, 525 nm, 625 nm)
- Light emission: Long side of housing with 5.3 mm x 1.2 mm spot size
- Output function: Light/dark switching with push-pull PNP/NPN
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching frequency: 70 kHz
- Response time: 3 µs
- Protection class: III
- Enclosure rating: IP67
- Connection type: Plug, M12, 5-pin
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Weight: 68 g
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- High precision sensing with sensing distance up to 25 mm and ±6 mm tolerance
- LED RGB light source with wavelengths 470 nm, 525 nm, 625 nm
- Multiple teach-in modes including 1-point, 2-point, dynamic, and auto mode
- Push-pull PNP/NPN switching output with max output current 100 mA
- IO-Link communication interface for advanced data exchange
- Robust housing made of VISTAL® with COP optics material
- IP67 rated enclosure for protection against dust and water
- Operating temperature range from -20 °C to +60 °C
- Short response time of 3 µs and switching frequency of 70 kHz
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety compliance.
Applications
- Industrial automation requiring high precision sensing
- Process control with light/dark switching output
- Environments needing robust IP67 rated sensors
- Applications requiring adjustable delay time and teach-in modes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product lifespan reducing waste
- Non-volatile memory reduces need for frequent recalibration
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK KTS-WB9224115AZZZZ sensor is available for immediate purchase, ideal for high precision industrial sensing and automation applications.
