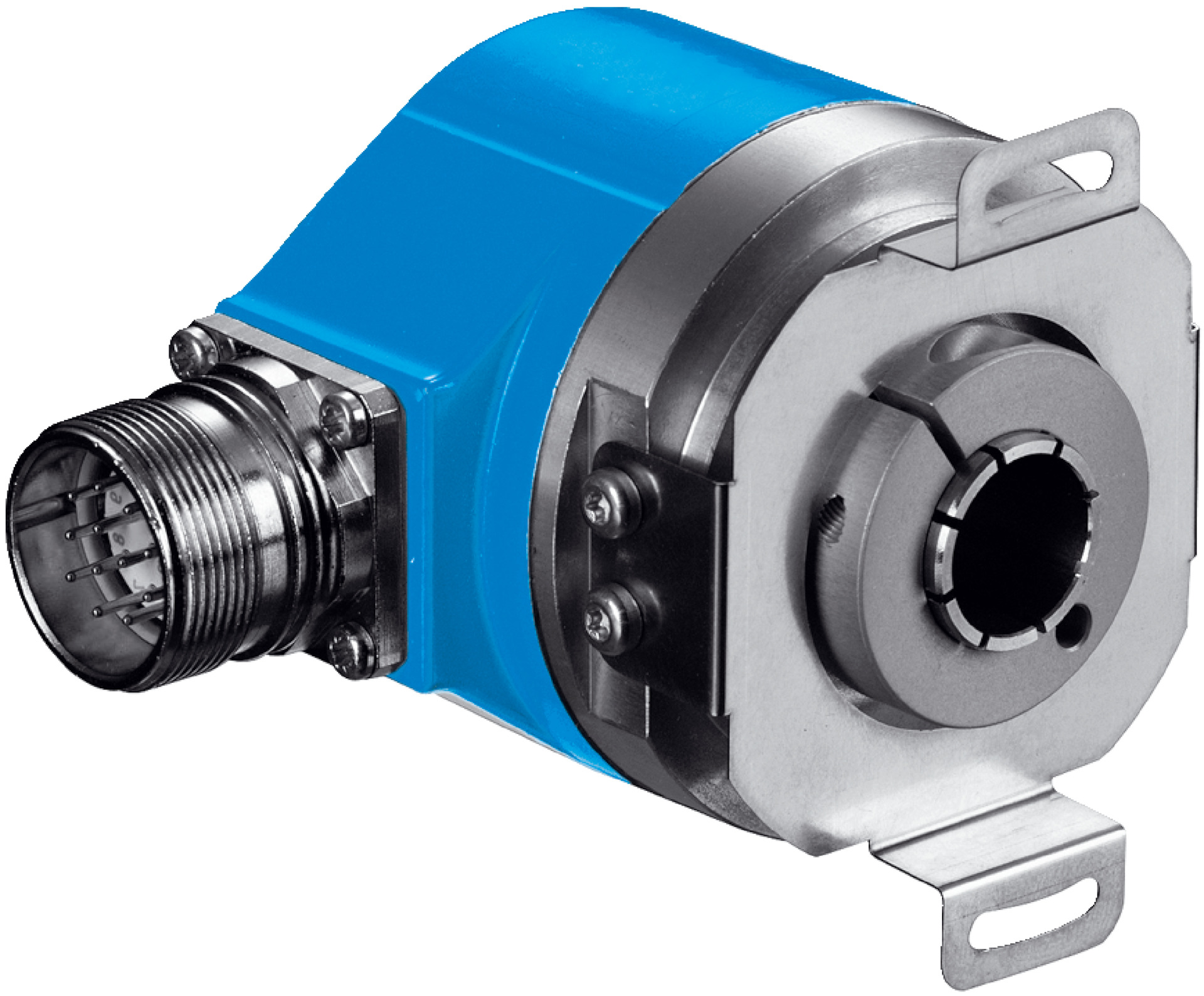

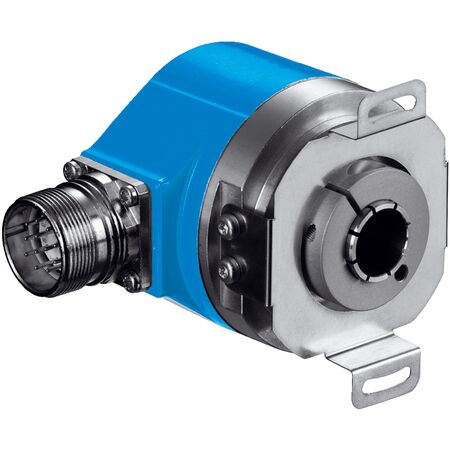

High Precision Rotary Encoder ARS60 | 1024 Steps/Rev | IP65 Rated | by SICK
The High Precision Rotary Encoder ARS60 is designed for industrial automation, featuring 1,024 steps per revolution for accurate position and speed measurement. With a robust aluminum die cast housing and an IP65 rating, it ensures durability in harsh environments. Ideal for robotics and machine tools, this encoder operates efficiently within a temperature range of -20 °C to +85 °C, making it perfect for safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 1,024 (10 bit)
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Code sequence adjustable: CW increasing when viewing clockwise shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Male connector, M23, 21-pin, radial
- Supply voltage: 10 to 32 V
- Operating current: Typical 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Blind hollow shaft
- Shaft diameter: 15 mm
- Housing material: Aluminum die cast
- Start up torque: Typical 0.6 Ncm
- Operating torque: Typical 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Safety-related parameter MTTFD of 300 years according to EN ISO 13849-1
- Robust aluminum die cast housing with IP65 rating
- Blind hollow shaft design with 15 mm shaft diameter and front clamp
- Low start-up torque (0.6 Ncm) and operating torque (0.4 Ncm)
- Operating speed up to 3,000 min⁻¹
- High resistance to shocks (50 g) and vibration (20 g)
- Parallel data world communication interface with Gray code
- Operating temperature range from -20 °C to +85 °C
- EMC compliant with EN 61000-6-2 and EN 61000-6-3 standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper integration and compliance.
Applications
- Industrial automation for precise position and speed measurement
- Robotics requiring accurate angular feedback
- Machine tools and manufacturing equipment
- Safety-related systems in industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-FAA01024 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
