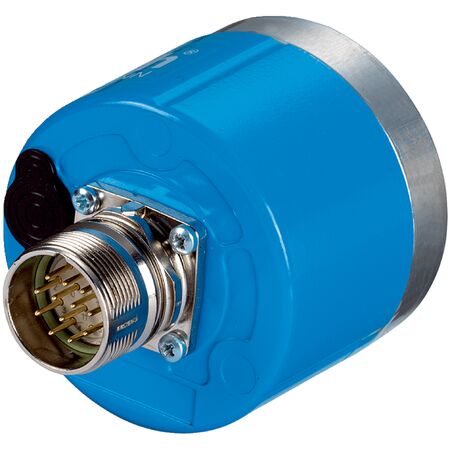

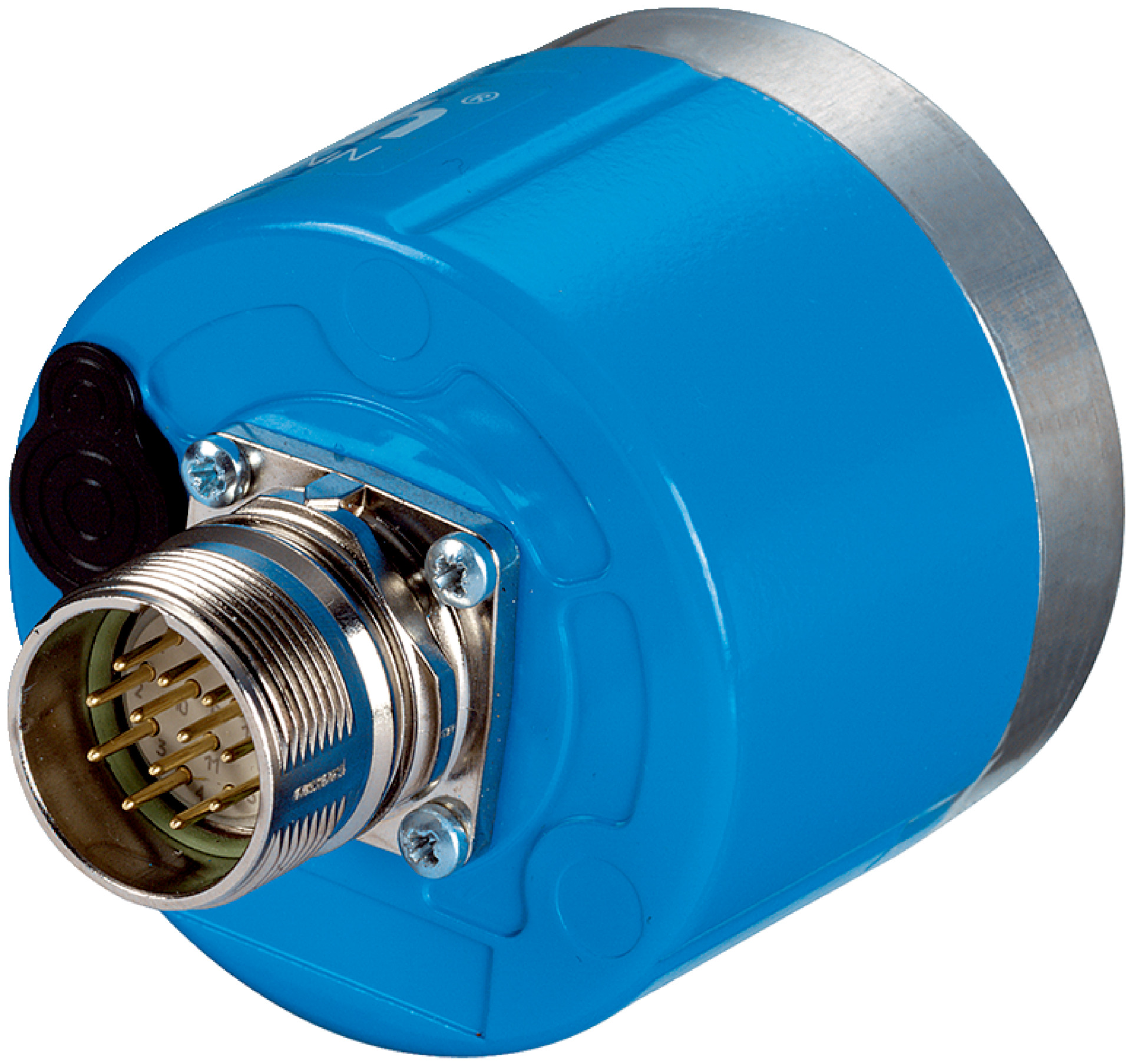

High Precision Rotary Encoder ARS60 | 360 Steps/Rev | IP65 Rated | by SICK
The High Precision Rotary Encoder ARS60 is designed for industrial automation, featuring a maximum resolution of 360 steps per revolution and an IP65 rated enclosure for protection against dust and water. With a wide operating temperature range from -20°C to +85°C and robust aluminum die cast housing, it's perfect for robotics, motion control, and safety-related monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Precision Rotary Encoder ARS60 | 360 Steps/Rev | IP65 Rated | by SICK
Brand: SICK
SKU: 1038161
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Precision Rotary Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Maximum resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, axial
- Mechanical design: Blind hollow shaft with 15 mm diameter
- Start up torque: Typically 0.6 Ncm
- Operating torque: Typically 0.4 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: Up to 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: Up to 500,000 rad/s²
- EMC compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Robust aluminum die cast housing
- Blind hollow shaft with front clamp
- IP65 rated enclosure for protection against dust and water
- Low operating and start-up torque
- High resistance to shocks and vibrations
- Wide operating temperature range from -20°C to +85°C
- Certified with multiple international conformity declarations
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial rotary encoders and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Safety-related monitoring in machinery
- Precision measurement in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-HAB00360 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
