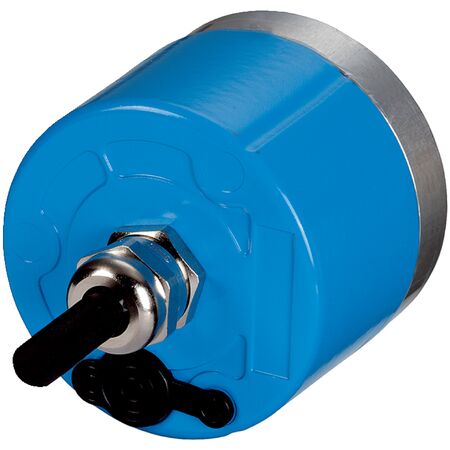

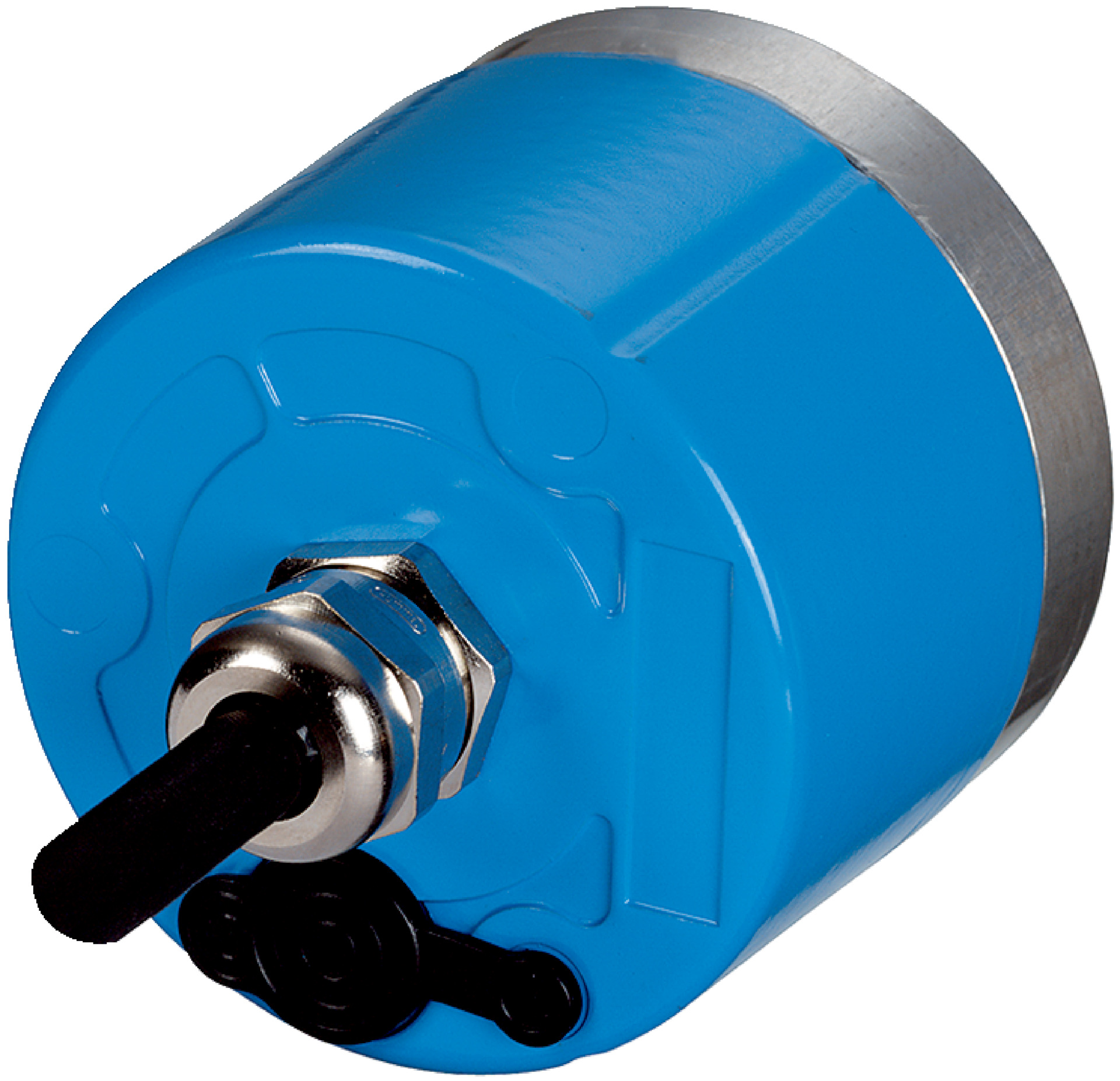

High Precision Rotary Encoder ARS60-G4R00360 | 360 Steps/Rev | IP66 Enclosure | by SICK
The High Precision Rotary Encoder ARS60-G4R00360 offers exceptional resolution with 360 steps per revolution, making it ideal for industrial automation and robotics applications. With an IP66 rated enclosure for dust and water protection, it operates efficiently in temperatures ranging from -20°C to +85°C. Designed for precision measurement and safety monitoring, this encoder ensures high reliability and performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Precision Rotary Encoder ARS60-G4R00360 | 360 Steps/Rev | IP66 Enclosure | by SICK
Brand: SICK
SKU: 1031653
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Precision Rotary Encoder
Technical Specifications
- Resolution: 360 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Shaft diameter: 10 mm with flat
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP66
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 360 steps per revolution
- Gray code type with trimmed code sequence
- Solid shaft with face mount flange design
- IP66 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque and start-up torque
- High resistance to shock (50 g) and vibration (20 g)
- Cable connection with 22 wires, 1.5 m length
- Mean time to dangerous failure (MTTFD) of 300 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Safety-related monitoring in machinery
- Precision measurement in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum die-cast housing reduces material waste through long product life
- Energy-efficient operation with low current consumption
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-G4R00360 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety applications.
