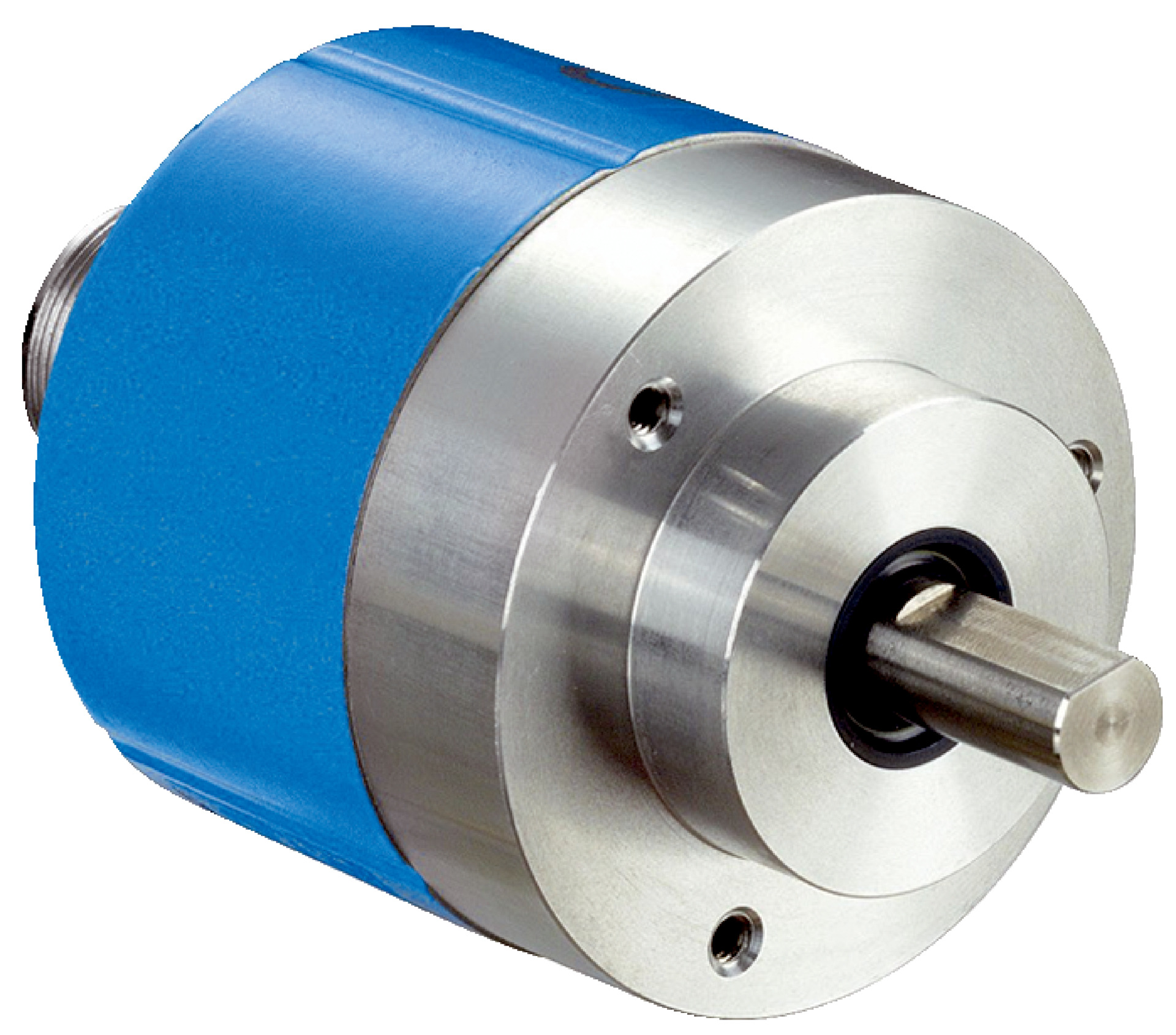

High Precision Rotary Encoder ARS60 | 400 Steps/Rev | IP65 Enclosure | by SICK

BRAND: SICK
SKU: 1035074
$2,228.00 List price: $2,800.40
+ −
30 Days Return Delivery Options
The High Precision Rotary Encoder ARS60 is designed for industrial automation and precision measurement, featuring a maximum resolution of 400 steps per revolution and an IP65 rated enclosure for protection against dust and water. With a robust aluminum die cast housing and a wide operating temperature range from -20°C to +85°C, this encoder ensures reliable performance in demanding environments.

Product Name/Title: High Precision Rotary Encoder ARS60 | 400 Steps/Rev | IP65 Enclosure | by SICK

Brand: SICK

SKU: 1035074

Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Precision Rotary Encoder

Technical Specifications
  • Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
  • Maximum resolution: 400 steps per revolution
  • Measuring step deviation: 0.016°
  • Error limits G: 0.046°
  • Repeatability standard deviation σr: 0.005°
  • Communication interface: Parallel data world
  • Initialization time: 80 ms
  • Code type: BCD
  • Supply voltage: 10 to 32 V
  • Operating current: Typically 90 mA
  • Connection type: Male connector, M23, 21-pin, axial
  • Mechanical design: Solid shaft with flat, face mount flange
  • Shaft diameter: 10 mm, Shaft length: 19 mm
  • Start up torque: Typically 0.4 Ncm
  • Operating torque: Typically 0.3 Ncm
  • Permissible shaft loading: 20 N radial, 10 N axial
  • Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
  • Moment of inertia of rotor: 54 gcm²
  • Bearing lifetime: 3.6 x 10⁹ revolutions
  • Angular acceleration: Up to 500,000 rad/s²
  • EMC compliance: EN 61000-6-2 and EN 61000-6-3
  • Enclosure rating: IP65 (IEC 60529)
  • Operating temperature range: -20°C to +85°C
  • Storage temperature range: -40°C to +100°C
  • Shock resistance: 50 g, 11 ms
  • Vibration resistance: 20 g, 10 Hz to 2,000 Hz
  • Dimensions (H x L x W): 60mm x 80mm x 60mm
  • Weight: 0.3 kg
Key Features
  • High resolution with 400 steps per revolution
  • Solid shaft with face mount flange design
  • Robust aluminum die cast housing
  • IP65 rated enclosure for protection against dust and water
  • Wide operating temperature range from -20°C to +85°C
  • Low operating and start-up torque for efficient performance
  • High resistance to shocks (50 g) and vibration (20 g)
  • Parallel data communication interface with BCD code
  • Long bearing lifetime and high mechanical durability
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with rotary encoder integration and electrical safety standards.
Applications
  • Industrial automation and control systems
  • Robotics and motion control
  • Precision measurement in manufacturing
  • Position and speed feedback in machinery
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces need for frequent replacements, minimizing waste
  • Energy-efficient operation with low power consumption
  • Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information

Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.

Available Now

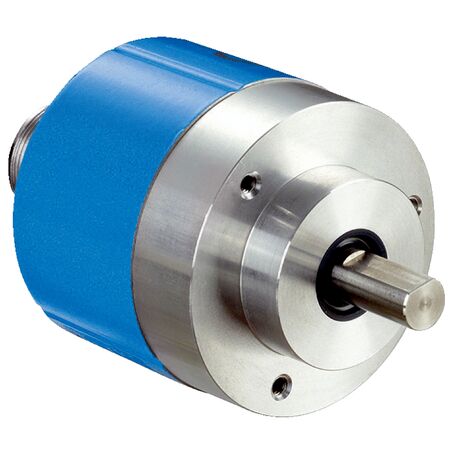

The SICK ARS60-J4B00400 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
