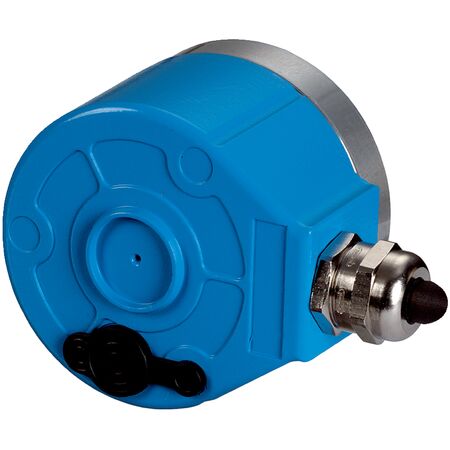

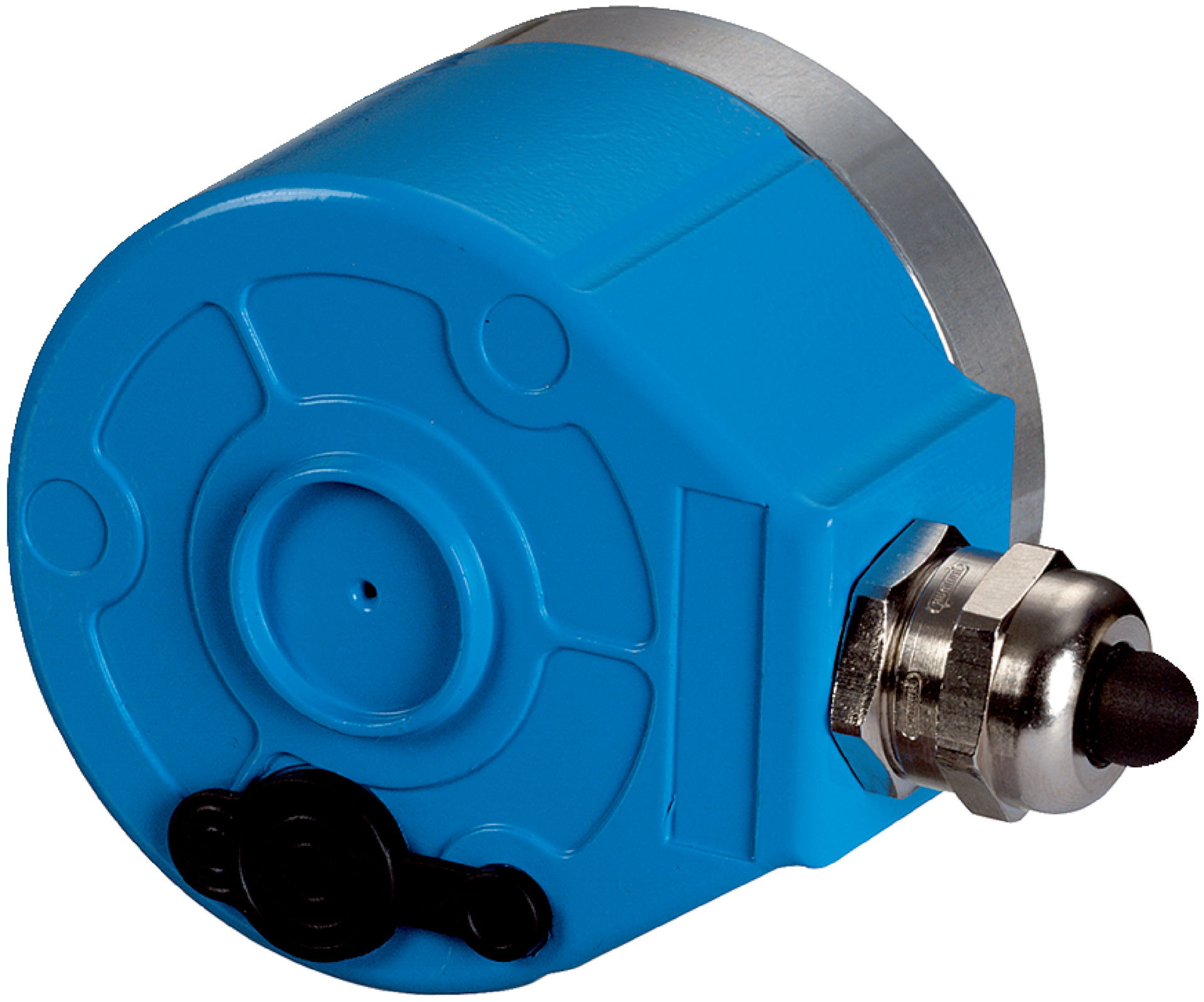

High Precision Rotary Encoder ARS60 | 512 Steps/Rev | IP66 Enclosure | by SICK
The High Precision Rotary Encoder ARS60 is designed for industrial automation and precision measurement, featuring a resolution of 512 steps per revolution and an IP66 rated enclosure for dust and water protection. With a low start-up torque and a wide operating temperature range from -20°C to +85°C, this encoder is perfect for robotics and motion control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 512 steps per revolution (9 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 54 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 512 steps per revolution (9 bit)
- Solid shaft with face mount flange design
- IP66 rated enclosure for dust and water protection
- Low start-up torque of typically 0.4 Ncm
- Operating temperature range from -20°C to +85°C
- Cable connection with 22 wires, 3 meters radial length
- High resistance to shocks (50 g) and vibration (20 g)
- Mean time to dangerous failure (MTTFD) of 300 years
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure safety and optimal performance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Safety-related monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum die-cast housing extends product lifespan reducing waste
- Low power consumption with typical operating current of 90 mA
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-H4L00512 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
