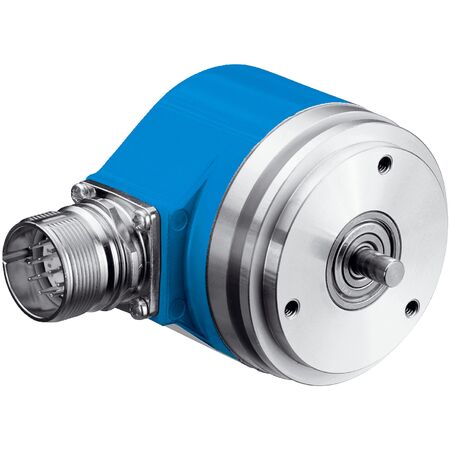

High Precision Rotary Encoder ARS60 | 720 Steps per Revolution | IP65 Rated | by SICK
The High Precision Rotary Encoder ARS60 is designed for industrial automation, featuring 720 steps per revolution and a robust aluminum die cast housing with an IP65 rating. Ideal for robotics and precision measurement, it offers excellent repeatability and a wide operating temperature range from -20°C to +85°C, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Precision Rotary Encoder ARS60 | 720 Steps per Revolution | IP65 Rated | by SICK
Brand: SICK
SKU: 1035429
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Precision Rotary Encoder, Industrial Rotary Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 720
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Mechanical design: Solid shaft, Servo flange
- Shaft diameter: 6 mm
- Shaft length: 10 mm
- Housing material: Aluminum die cast
- Start up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 720 steps per revolution
- Solid shaft with servo flange and flat for secure mounting
- Robust aluminum die cast housing with IP65 rating
- Low start-up and operating torque for efficient operation
- High operating speed up to 10,000 min⁻¹ without shaft seal
- Excellent repeatability with standard deviation of 0.005°
- Parallel data communication interface with Gray code
- Wide operating temperature range from -20°C to +85°C
- Certified for safety and compliance with multiple international standards
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial rotary encoders and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing processes
- Safety-related motion control applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-F1A00720 rotary encoder is available for immediate purchase, ideal for precision industrial automation and safety-related applications.
