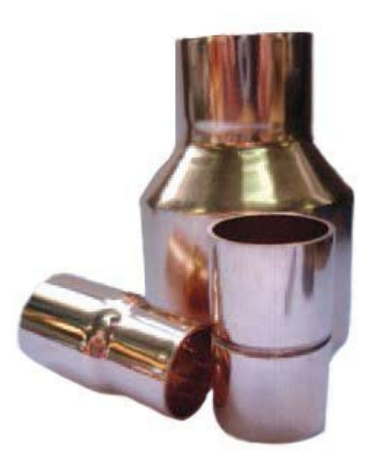

High Pressure Copper Bushing | 1-1/8 ID to 7/8 ID | R-410A Compatible | CO2 60 Bar Rated | by Aspen Pumps
The High Pressure Copper Bushing is designed for HVAC and refrigeration systems, featuring a 1-1/8 inch to 7/8 inch inner diameter and rated for CO2 60 Bar and R-410A refrigerants. Manufactured to exceed ISO/AS 5149.2 standards, this copper fitting ensures reliable performance and safety in high-pressure applications, making it ideal for industrial and commercial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Pressure Copper Bushing | 1-1/8 ID to 7/8 ID | R-410A Compatible | CO2 60 Bar Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 101-1814-HP60
Alternatively Known As: Copper Bushing, Copper Reducer Bush, High Pressure Copper Fitting, R-410A Copper Bush
Technical Specifications
- Inner Diameter: 1-1/8 inch to 7/8 inch
- Pressure Rating: CO2 60 Bar
- Refrigerant Compatibility: R-410A
- Manufactured to exceed ISO/AS 5149.2 standards
- Quality Assurance: Batch verification burst testing
- Material: High-quality copper
- Installation: Use 15% silver solder for brazing in high-pressure applications
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology. Use 15% silver solder for brazing and ensure pipework design avoids mechanical and thermal stress.
Applications
- HVAC systems requiring high-pressure copper fittings
- Refrigeration systems using R-410A refrigerant
- Industrial and commercial copper piping installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Supports use in energy-efficient HVAC and refrigeration systems
- Manufactured under ISO9001 standards ensuring quality and reduced waste
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps 1-1/8 ID X 7/8 ID Copper Bush HP60 is available for immediate purchase, ideal for high-pressure HVAC and refrigeration system applications.
