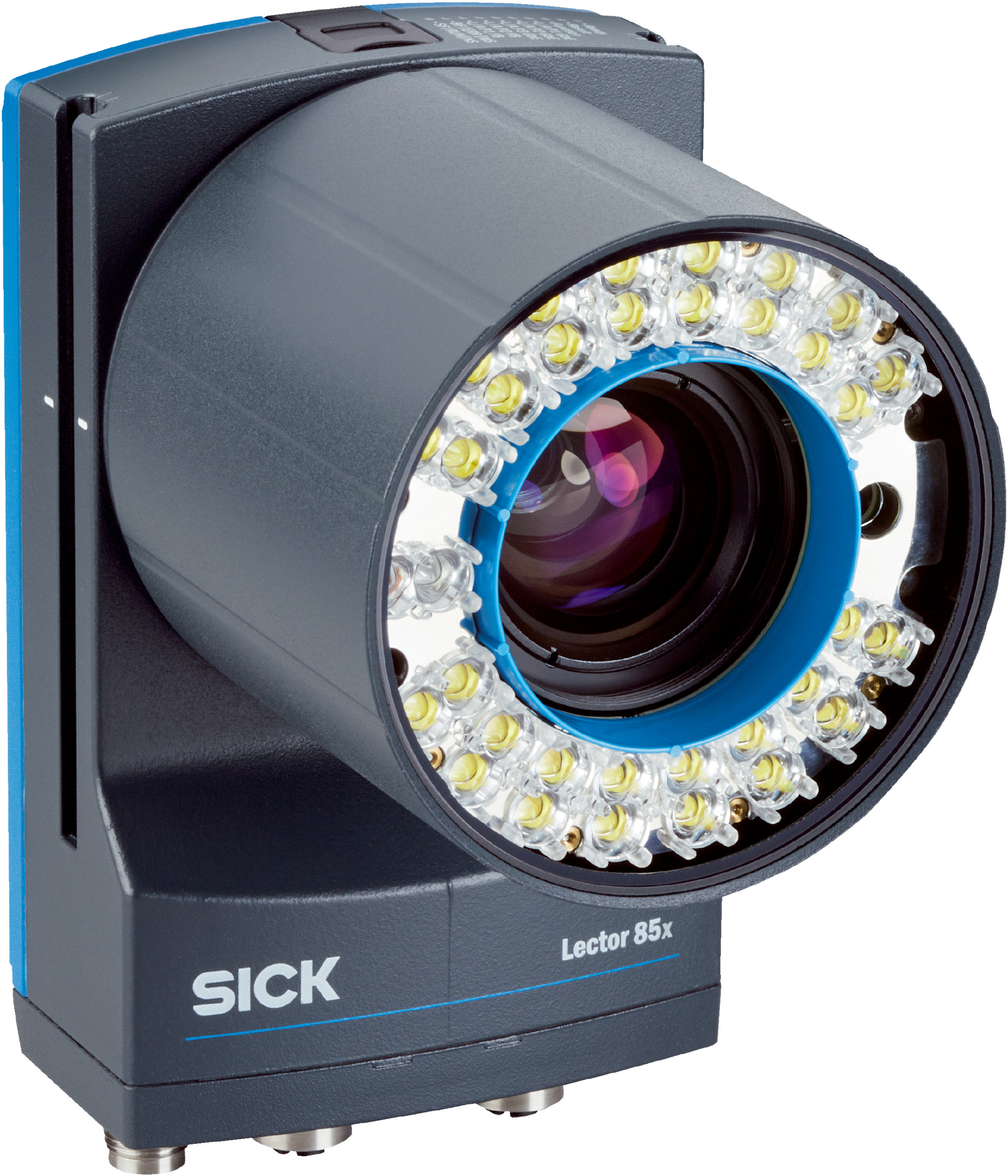

High-Resolution Barcode Scanner | 12 Megapixel CMOS Sensor | Integrated LED Illumination | IP65 Rated | by SICK
The high-resolution barcode scanner features a 12 Megapixel CMOS sensor and integrated LED illumination, making it perfect for indoor industrial barcode scanning applications. With a scanning frequency of 15 Hz and support for various barcode types, this scanner is designed for reliability and efficiency in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 12 Megapixel resolution (6048 x 2048 px)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with EN 60825-1
- C-mount lens with 1" optical format, 25 mm focal length, aperture range 1.8 to 16
- Scanning frequency of 15 Hz at 12 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple connection types including M12 connectors for power, CAN, serial, Ethernet, and Gigabit Ethernet
- Supply voltage 24 V DC ± 20%
- Typical power consumption 24 W, max current 2 A
- Aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure
- Electrical safety compliant with EN 61010 standards
- MTBF of 100,000 hours
- Supports 1D, 2D, and stacked barcode types including Code 128, GS1-128, EAN, UPC, Data Matrix ECC200, QR code, Aztec, and PDF417
- Multiple industrial network interfaces including Ethernet TCP/IP, EtherNet/IP™, CAN, Serial RS-232/422, USB 2.0, PROFINET
- Digital inputs and configurable digital I/Os
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistance compliant with EN 60068 standards
- Operating temperature 0 °C to +50 °C, storage temperature -20 °C to +70 °C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing and scratch-proof glass extend product lifespan
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

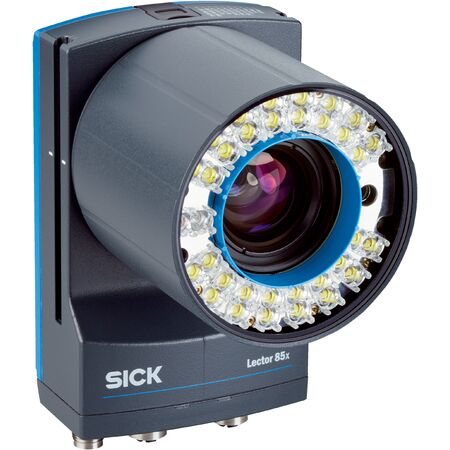

The SICK V2D8512R-1WCKEXAF2SXXXX barcode scanner is available for immediate purchase. Ideal for indoor industrial barcode scanning applications requiring high resolution and multiple interface options.
