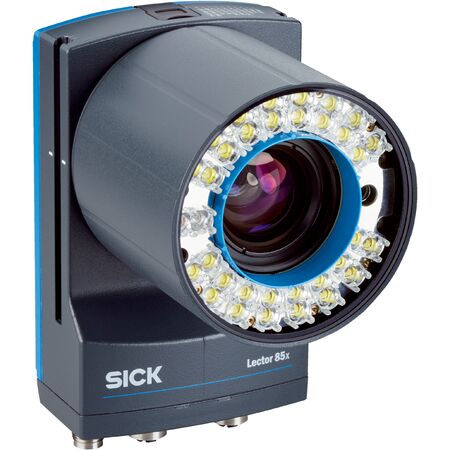

High-Resolution Barcode Scanner | 12 Megapixel CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The high-resolution barcode scanner features a 12 Megapixel CMOS monochrome sensor with a stunning 4096 x 3008 px resolution, making it perfect for indoor industrial barcode scanning. With adjustable manual optical focus and integrated white LED illumination, it ensures accurate code reading of 1D, 2D, and stacked codes. Built to last with an IP65 rating and robust aluminum housing, this scanner is ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- 12 Megapixel CMOS monochrome sensor with 4096 x 3008 px resolution
- Integrated white LED illumination with 32 LEDs
- Low risk LED and laser classes compliant with international safety standards
- C-mount lens with 16 mm focal length and aperture range 1.8 to 16
- Reads 1D, 2D, and stacked codes including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple interfaces including Ethernet, CAN, Serial RS-232/422, USB 2.0
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Wide operating temperature range 0°C to +50°C and high MTBF of 100,000 hours
Professional Installation Requirements
- Professional installation recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Energy-efficient LED illumination minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK V2D8512R-1MCIDXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
