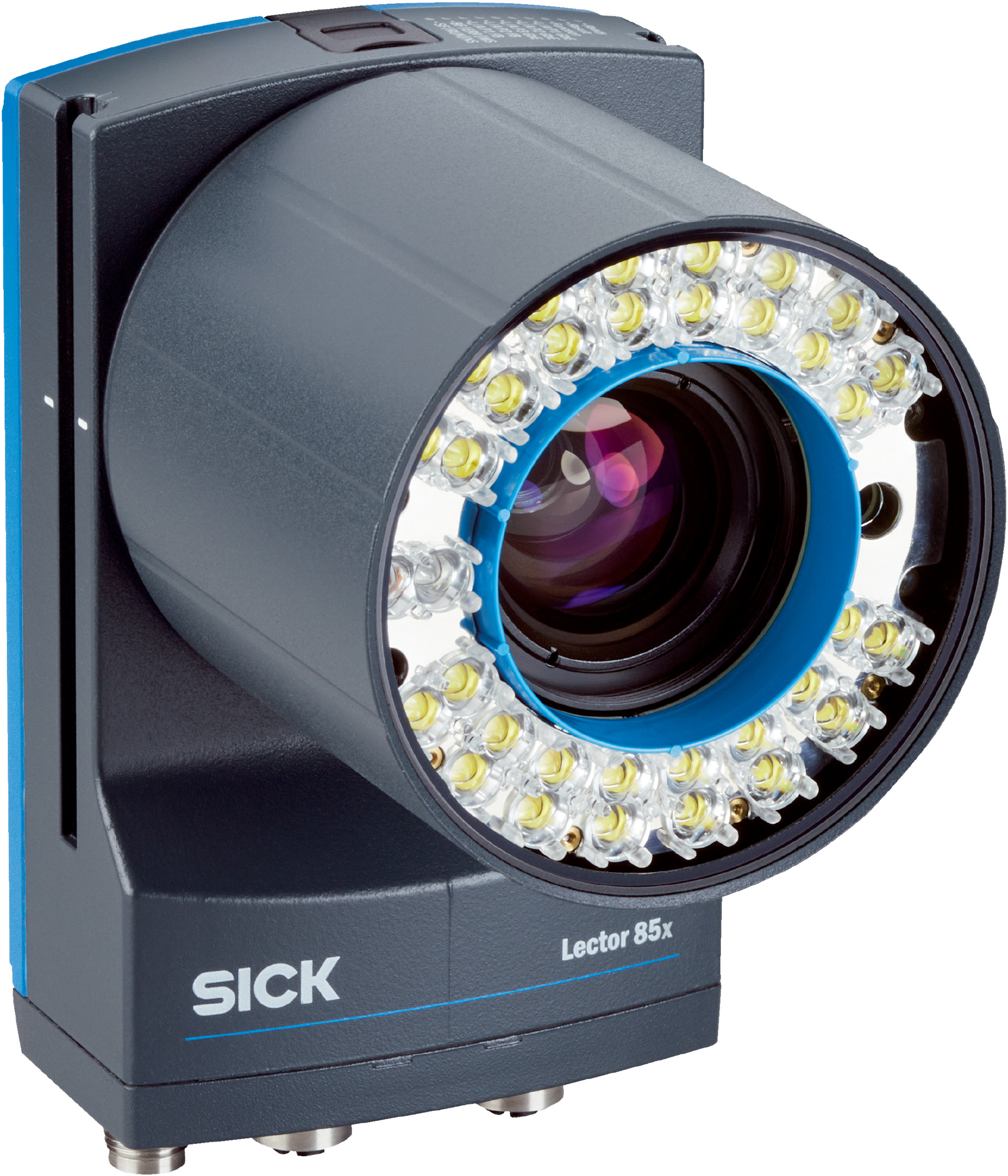

High-Resolution Barcode Scanner | 9 Megapixel CMOS Sensor | Adjustable Optical Focus | IP65 Rated | by SICK
The High-Resolution Barcode Scanner features a 9 Megapixel CMOS sensor and adjustable optical focus, making it perfect for indoor industrial barcode scanning applications. With integrated white LED illumination and an IP65 rated enclosure, this scanner ensures reliable performance in various environments, providing accurate code reading for 1D, 2D, and stacked codes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 x 2176 px (9 Megapixel)
- Illumination: Integrated white LED, 32 LEDs, 31° aperture angle
- Optical focus: Adjustable manual
- Lens: C-mount, 1" optical format, 25 mm focal length, aperture 1.8 to 22
- Scanning frequency: 20 Hz at 9 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female), Gigabit Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W, max current 2 A
- Housing: Aluminum die cast, anthracite gray
- Window: 2 mm thick scratch-proof glass
- Enclosure rating: IP65
- Electrical safety: EN 61010 compliant
- Supported codes: 1D, 2D, stacked codes including Code 128, GS1, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet (TCP/IP), CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD for parameter cloning and data storage
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27
- Operating temperature: 0°C to +50°C
- Storage temperature: -20°C to +70°C
- Humidity: ≤ 90% non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 31° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with IEC 60825-1
- C-mount lens with 1" optical format, 25 mm focal length, aperture range 1.8 to 22
- Scanning frequency of 20 Hz at 9 Megapixel resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC ± 20%
- Power consumption typically 24 W, max current 2 A
- Aluminum die cast housing with anthracite gray color
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure
- Complies with electrical safety standards EN 61010
- Supports 1D, 2D, and stacked barcode types including Code 128, GS1, Data Matrix, QR code, PDF417
- Interfaces include Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs and configurable digital I/O
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistance compliant with EN 60068 standards
- Operating temperature 0°C to +50°C, storage -20°C to +70°C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing and scratch-proof glass extend product lifespan
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCKEXAL2SXXXX barcode scanner is available for immediate purchase, ideal for indoor industrial barcode scanning applications.
