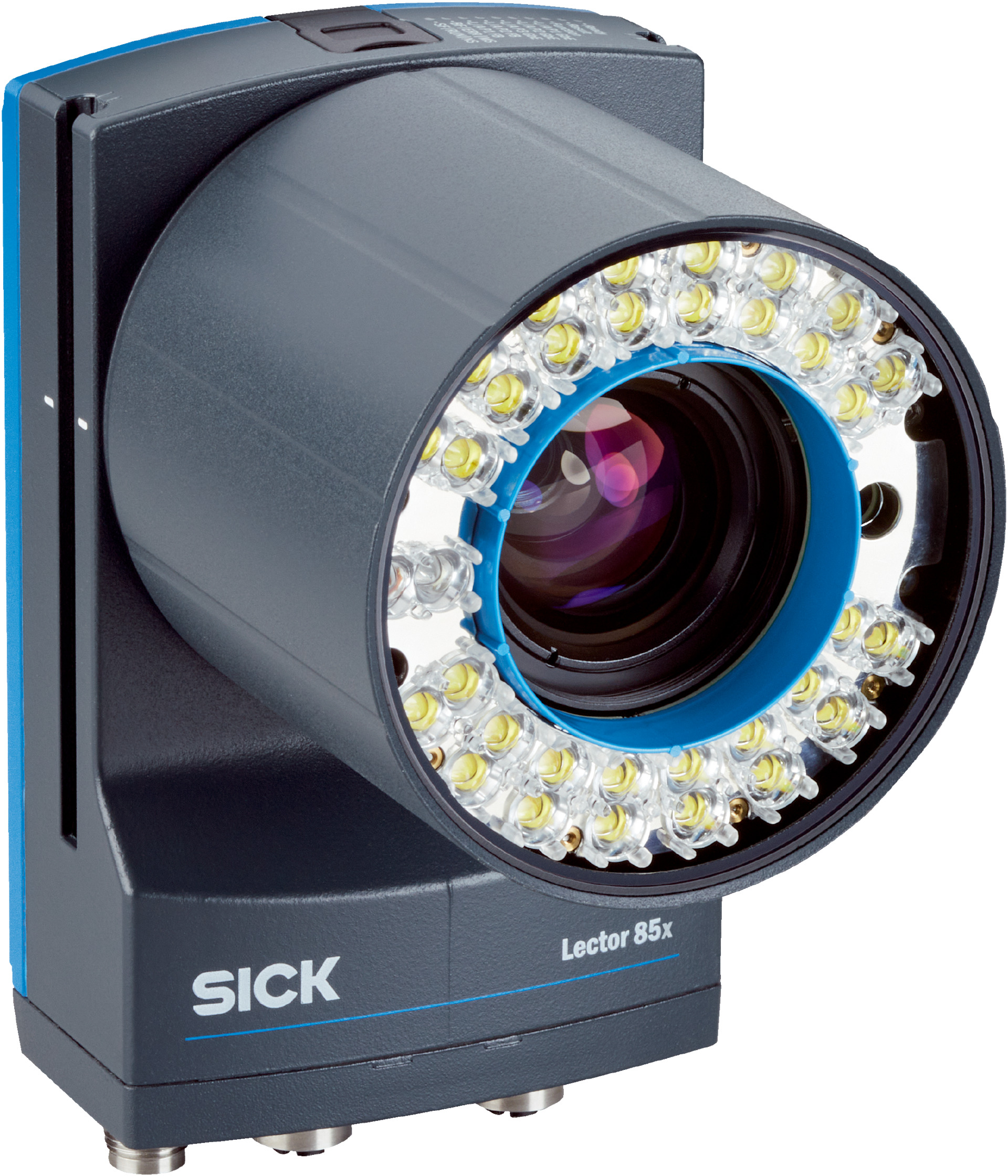

High-Resolution Barcode Scanner | 9 Megapixel CMOS Sensor | Integrated LED Illumination | IP65 Rated | by SICK
The high-resolution barcode scanner features a 9 Megapixel CMOS sensor and integrated white LED illumination, making it ideal for indoor barcode scanning applications. With a robust design and multiple connection options, this scanner ensures reliable performance in industrial settings, providing visible feedback and a wide working range from 500 mm to 3000 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Visible green and red LED feedback spots
- Red laser alignment aid (630 nm to 680 nm), laser class 1 compliant with IEC 60825-1
- C-mount lens with 1" optical format, 16 mm focal length, aperture range 1.8 to 16
- Scanning frequency of 20 Hz at 9 Megapixel resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 3000 mm
- Multiple connection types including M12 connectors for power, CAN, serial, Ethernet, and external illumination
- Supply voltage 24 V DC ± 20%
- Typical power consumption 24 W, max current 2 A
- Aluminum die cast housing with anthracite gray color (RAL 7016)
- Scratch-proof 2 mm thick glass window
- IP65 rated enclosure
- Electrical safety compliant with EN 61010 standards
- MTBF of 100,000 hours
- Supports 1D, 2D, and stacked barcode types including Code 128, GS1-128, EAN, UPC, Data Matrix ECC200, QR code, Aztec, and PDF417
- Multiple industrial network interfaces including Ethernet, EtherNet/IP, CAN, Serial RS-232/422, USB 2.0, PROFINET
- Digital inputs and configurable digital I/Os
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Robust electromagnetic compatibility and vibration/shock resistance
- Operating temperature 0°C to +50°C, storage -20°C to +70°C
- Non-condensing humidity up to 90%
- Altitude operation up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with electrical and safety standards.
Applications
- Indoor area barcode scanning and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Long MTBF reduces waste and replacement frequency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCIDXAF2SXXXX barcode scanner is available for immediate purchase. Ideal for indoor industrial barcode scanning applications requiring high resolution and multiple interface options.
