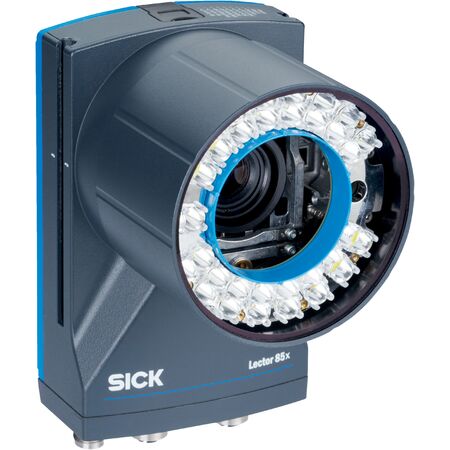

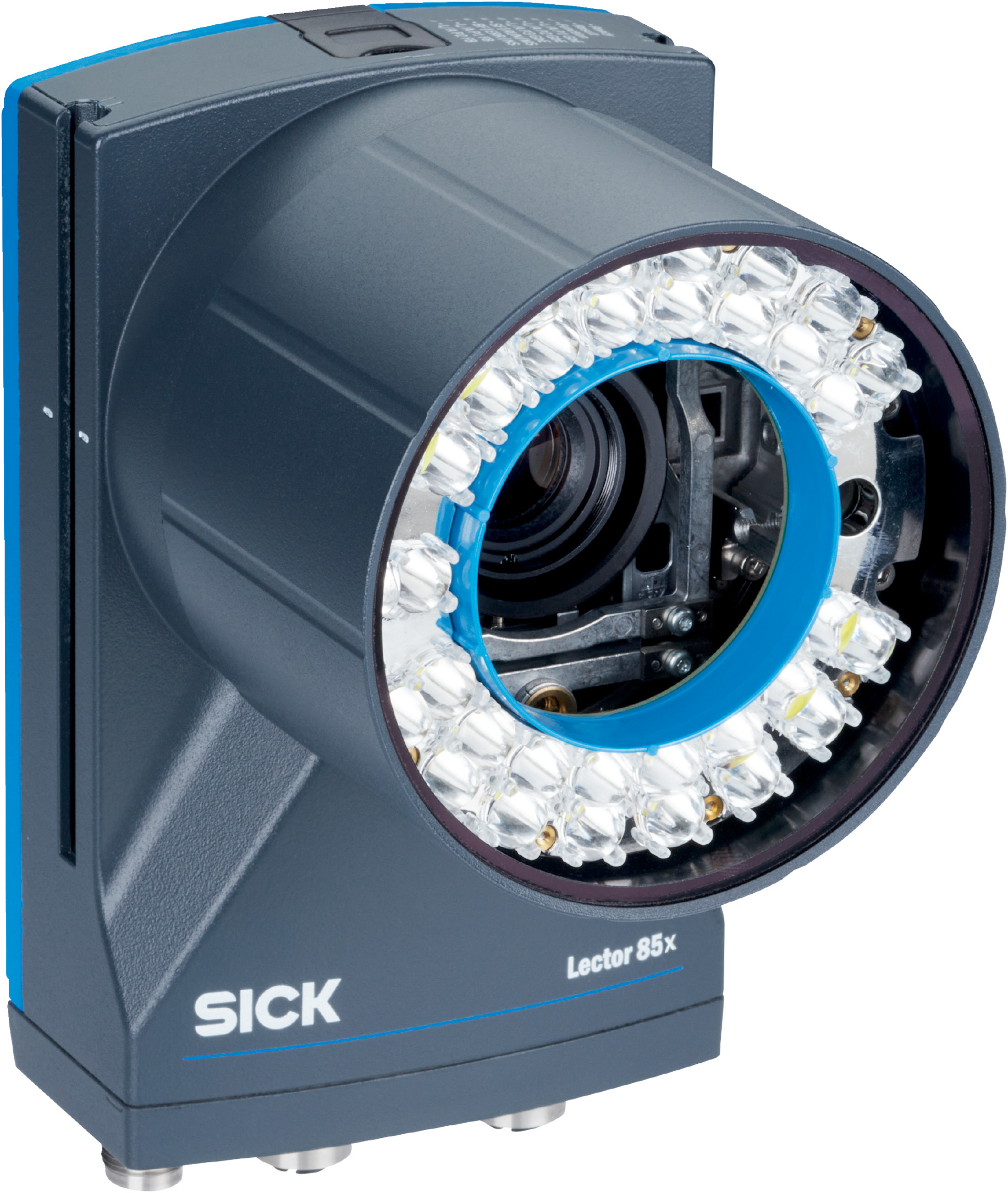

High-Resolution Barcode Scanner | 9 Megapixel CMOS Sensor | Integrated LED Illumination | IP65 Rated | by SICK
The High-Resolution Barcode Scanner features a 9 Megapixel CMOS sensor and integrated white LED illumination, making it perfect for indoor industrial barcode scanning and automation applications. With a scanning frequency of 20 Hz and a working range of 500 mm to 2400 mm, this scanner is designed for reliability and efficiency in logistics and quality control environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor: CMOS monochrome, 4096 px x 2176 px (9 Mpixel)
- Illumination: Integrated white LED, 32 LEDs, 47° aperture angle
- Laser alignment aid: Red laser 630-680 nm, Class 1
- Focal length: 25 mm, Aperture: 5.6
- Scanning frequency: 20 Hz at 9 Megapixels
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 2400 mm
- Connection types: M12 connectors (17-pin male, 5-pin male, 8-pin female), Gigabit Ethernet
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 27 W
- Housing: Aluminum die cast, anthracite gray
- Window: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65
- Electrical safety: EN 61010:2010 and amendments
- Weight: 975 g without lens and cables
- MTBF: 100,000 hours
- Supported codes: 1D, 2D, stacked codes including Code 128, GS1-128, Data Matrix ECC200, QR code, PDF417
- Interfaces: Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD for parameter cloning and data storage
- EMC: IEC 61000-6-2 and IEC 61000-6-4 compliant
- Vibration and shock resistance: EN 60068-2-6, EN 60068-2-64, EN 60068-2-27
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Humidity: ≤ 90% non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 1 kg
Key Features
- Dynamic focus control with 9 Megapixel CMOS monochrome sensor
- Integrated white LED illumination with 32 LEDs
- Aperture angle of 47° for illumination
- Low risk LED class 1 compliant with EC 62471-1 and EN 62471-1
- Red laser alignment aid with laser class 1 compliance
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 20 Hz at 9 Megapixel resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 2,400 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC with typical power consumption of 27 W
- Aluminum die cast housing with anthracite gray color
- IP65 rated enclosure with scratch-proof glass window
- Supports 1D, 2D, and stacked barcode types with ISO/IEC code qualification
- Multiple interfaces including Ethernet, CAN, Serial, USB
- Configurable digital inputs and outputs
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistance compliant with EN 60068 standards
- Operating temperature range 0 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical and network connections and compliance with safety standards.
Applications
- Indoor area barcode and code scanning
- Industrial automation and quality control
- Logistics and packaging code verification
Standards & Compliance
- AS/NZS 61010 – Safety requirements for electrical equipment for measurement, control, and laboratory use
Environmental Benefits
- Energy-efficient LED illumination reduces power consumption
- Durable aluminum housing extends product lifespan
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK V2D8509R-1MEKEXAL2SXXXX is available for immediate purchase, ideal for indoor industrial barcode scanning and automation applications.
