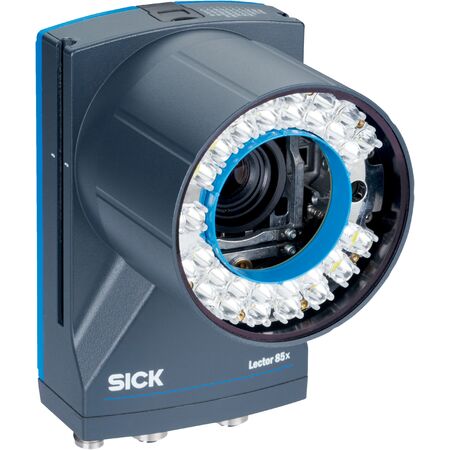

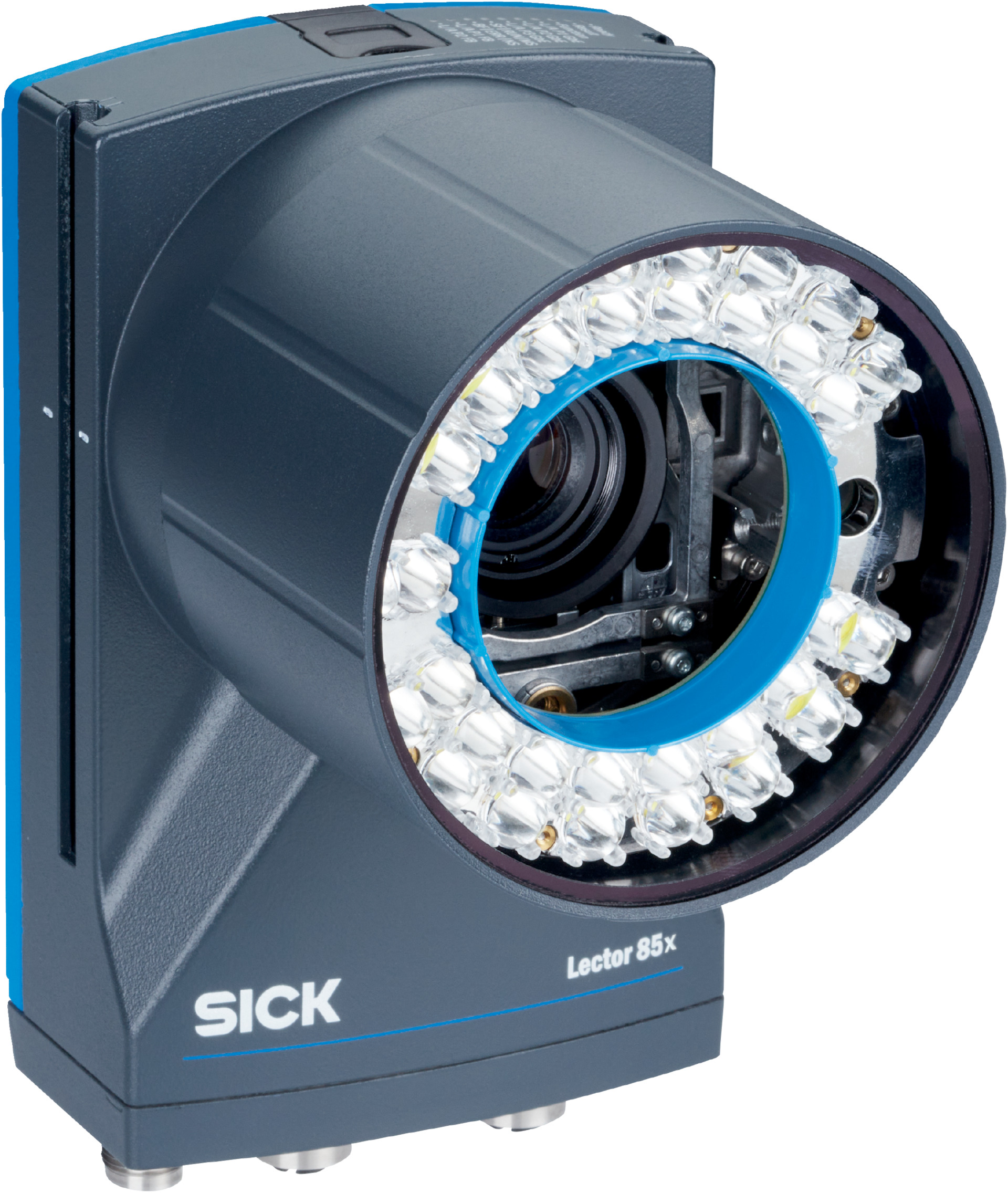

High Resolution CMOS Sensor | 12MP Resolution | Integrated LED Illumination | Dynamic Focus Control | by SICK
The High Resolution CMOS Sensor is designed for indoor industrial applications, offering a remarkable 12MP resolution and dynamic focus control for precise optical code reading. With integrated white LED illumination and a robust aluminum housing, this sensor ensures durability and reliability in various environments, making it ideal for high-precision tasks in manufacturing and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 106mm x 143mm x 90mm
- Weight: 0.975 kg
Key Features
- Dynamic focus control with CMOS monochrome sensor
- 12 Megapixel resolution (4096 px x 3008 px)
- Integrated white LED illumination with 32 LEDs
- Risk group 1 low risk LED class compliant with EC 62471-1 and EN 62471-1
- Laser alignment aid with class 1 laser safety
- Focal length 25 mm with aperture 5.6
- Scanning frequency of 15 Hz at 12 megapixels resolution
- Code resolution ≥ 0.1 mm
- Working range from 500 mm to 2400 mm
- Multiple connection types including M12 connectors and Gigabit Ethernet
- Supply voltage 24 V DC with typical power consumption of 27 W
- Aluminum die cast housing with anthracite gray color and IP65 rating
- Glass window with scratch-proof coating
- Supports 1D, 2D, and stacked barcode types with ISO/IEC code qualification
- Multiple interfaces: Ethernet, CAN, Serial (RS-232, RS-422), USB 2.0
- Configurable digital inputs and outputs
- Web server operator interface and SOPASair configuration software
- Micro SD memory card slot for parameter cloning and data storage
- Electromagnetic compatibility compliant with IEC 61000-6-2 and IEC 61000-6-4
- Vibration and shock resistance compliant with EN 60068 standards
- Operating temperature 0 °C to +50 °C, storage temperature -20 °C to +70 °C
- Non-condensing humidity up to 90%, altitude up to 5000 m
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution optical sensing and code reading
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing and scratch-proof glass window increase product lifespan
- Low power consumption of 27 W reduces energy usage
- Compliant with China-RoHS and other environmental regulations
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK V2D8512R-1MEKEXAL2SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring high precision optical code reading.
