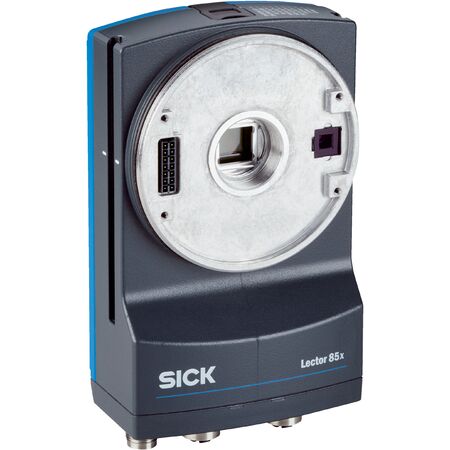

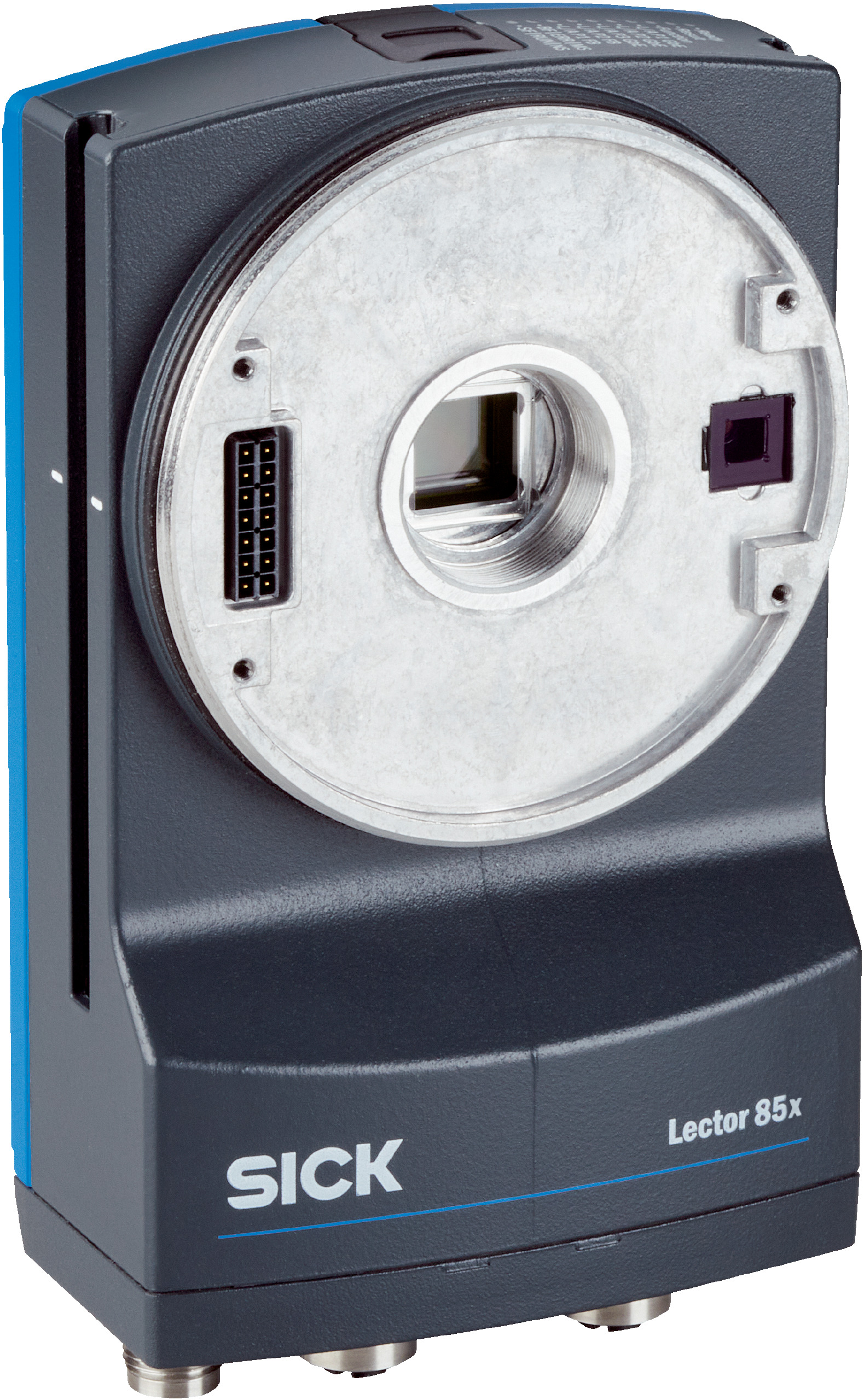

High-Resolution CMOS Sensor | 9 Megapixel | Adjustable Optical Focus | IP65 Rated | by SICK
The High-Resolution CMOS Sensor offers a stunning 9 Megapixel resolution, perfect for indoor applications requiring precise code reading and scanning. With adjustable optical focus and robust IP65-rated housing, this sensor is designed for durability and high performance in industrial environments. Ideal for professionals seeking reliable and efficient scanning solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 4096 px x 2176 px (9 Megapixel)
- Optical focus: Adjustable (manual)
- Illumination: Ordered separately as accessories
- Feedback spot: LED green (530 nm ± 15 nm), LED red (660 nm ± 20 nm)
- Alignment aid: Red laser (630 nm to 680 nm), Laser Class 1
- Lens: C-mount, optical format 1", focal lengths 12 mm, 16 mm, 25 mm (ordered separately)
- Scanning frequency: 20 Hz at 9 Megapixel resolution
- Code resolution: ≥ 0.1 mm
- Working range: 500 mm to 3000 mm
- Connection types: Multiple M12 connectors (17-pin, 5-pin, 4-pin, 8-pin) supporting power, CAN, serial, Ethernet, external illumination, I/O
- Supply voltage: 24 V DC ± 20%
- Power consumption: Typical 24 W
- Current consumption: Max 2 A
- Housing material: Aluminum die cast, color anthracite gray (RAL 7016)
- Window material: 2 mm thick glass with scratch-proof coating
- Enclosure rating: IP65 (IEC 60529)
- Electrical safety: EN 61010 standards
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, Stacked codes
- Supported code types: Code 128, GS1-128, EAN 8/13, UPC-A/E, Interleaved 2 of 5, Codabar, Code 93, Postal code, Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code, Aztec, PDF417
- Data transmission rates: Ethernet 10/100/1000 Mbit/s, EtherNet/IP 10/100 Mbit/s, CAN 500 kbit/s, Serial 1.2 kBaud to 115.2 kBaud, USB 2.0 at 480 Mbit/s, PROFINET 10/100 Mbit/s
- Digital inputs: 2 insulated inputs, configurable digital I/O
- Optical indicators: 12 LEDs for status and feedback
- Operator interface: Web server
- Configuration software: SOPASair
- Memory card slot: Micro SD (not included)
- Ambient operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: ≤ 90%, non-condensing
- Altitude: < 5000 m
- Dimensions (H x L x W): 46mm x 143mm x 90mm
- Weight: 0.64 kg
Key Features
- Adjustable manual optical focus
- CMOS monochrome sensor with 9 Megapixel resolution (4096 x 2176 px)
- LED feedback spots in green (530 nm) and red (660 nm)
- Red laser alignment aid (630 nm to 680 nm), Laser Class 1 compliant
- Supports 1D, 2D, and stacked code reading including Code 128, QR code, Data Matrix ECC200, PDF417
- Multiple industrial interfaces including Ethernet, EtherNet/IP™, CAN, Serial (RS-232, RS-422), USB 2.0, PROFINET
- Robust aluminum die cast housing with IP65 rating and scratch-proof glass window
- Operating temperature range 0 °C to +50 °C, storage -20 °C to +70 °C
- High electromagnetic compatibility and vibration/shock resistance
- Micro SD memory card slot for parameter cloning and data storage
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Indoor area applications requiring high-resolution code reading and scanning
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Energy-efficient operation with typical power consumption of 24 W
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK V2D8509R-1MCXXXAF0SXXXX sensor is available for immediate purchase, ideal for indoor industrial applications requiring high-precision code reading and scanning.
