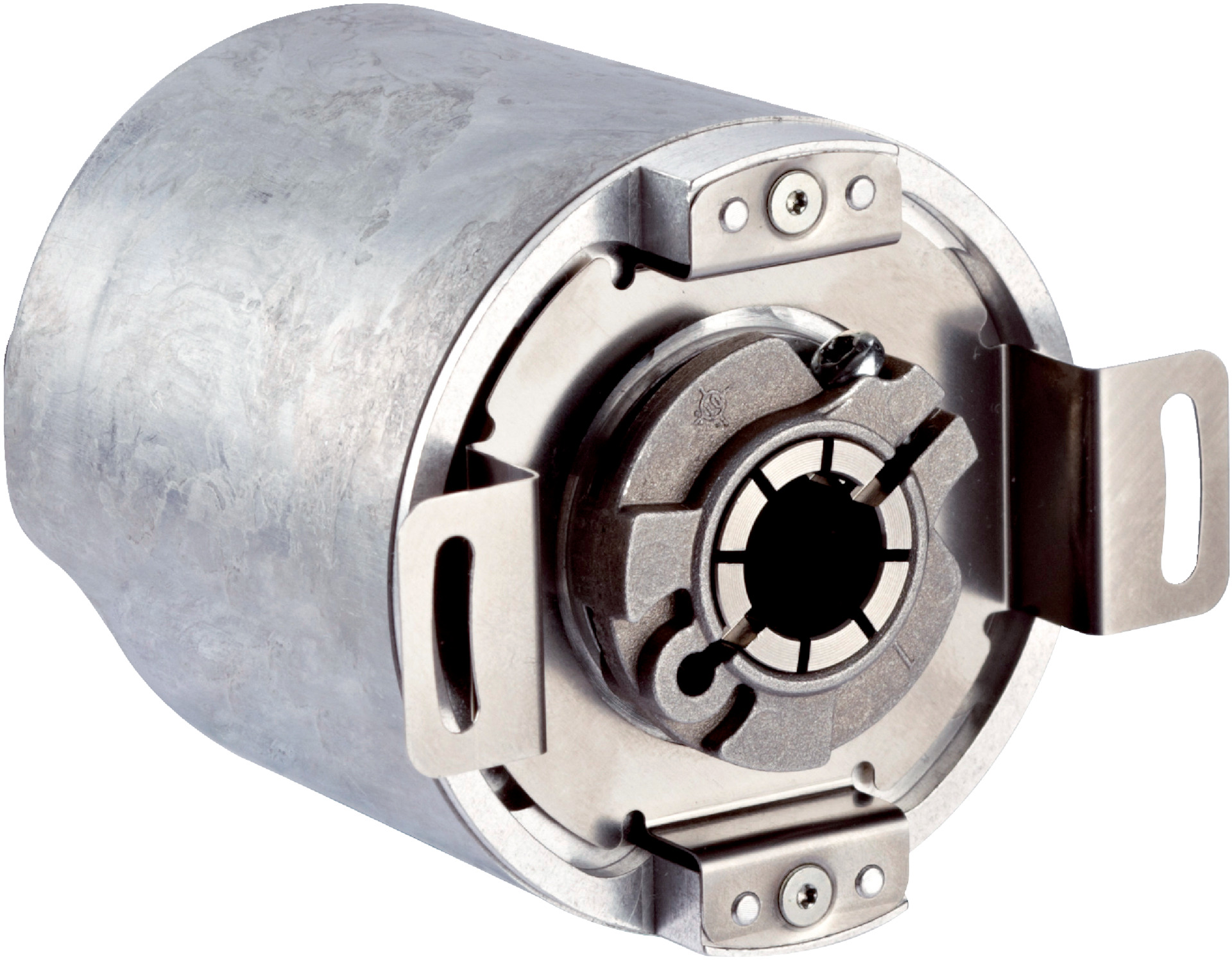

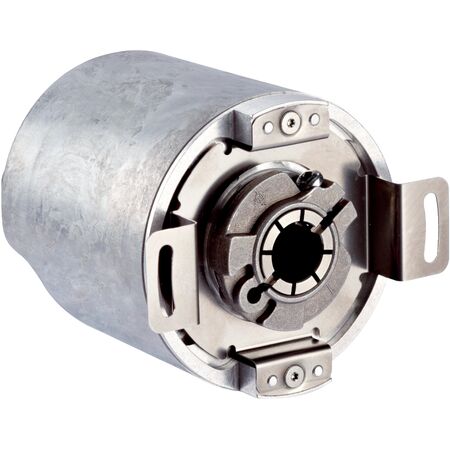

High-Resolution EtherCAT Encoder | 18-Bit Precision | IP65/IP67 Rated | by SICK
The High-Resolution EtherCAT Encoder AFS60A-BDEB262144 delivers exceptional 18-bit precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. With EtherCAT communication and robust mechanical design, it ensures reliable performance in high-speed machinery and safety-related applications. Its low power consumption and long bearing lifetime further enhance its value for motion control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 s
- Cycle time: 125 µs to 100 ms
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Blind hollow shaft, 10 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum
- Flange material: Zinc diecast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- EtherCAT communication interface with CoE (CAN over EtherCAT®)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- High operating speed up to 6,000 min⁻¹
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection
- Low power consumption ≤ 3 W
- Comprehensive diagnostics data available
- Long bearing lifetime of 3 x 10^9 revolutions
