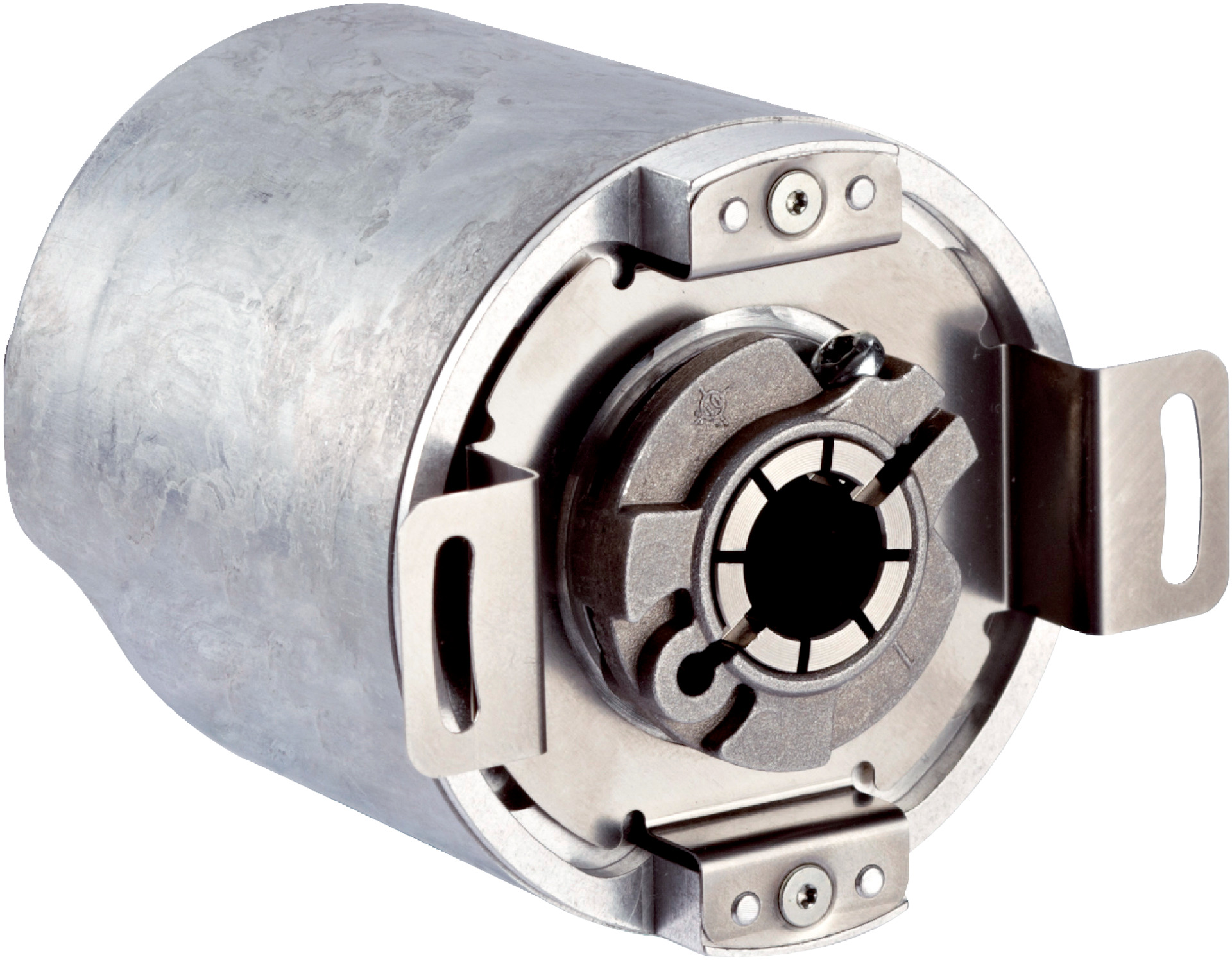

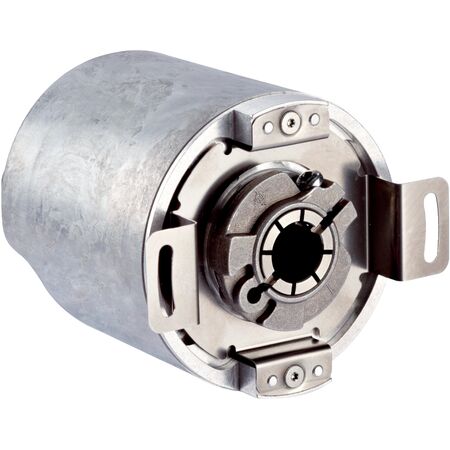

High-Resolution EtherCAT Encoder | 262,144 Steps | IP65/IP67 Rated | by SICK
The High-Resolution EtherCAT Encoder offers 262,144 steps per revolution, ensuring precise position feedback for industrial automation and robotics. With a robust mechanical design featuring a stainless steel shaft and IP65/IP67 ratings, it’s built for harsh environments. Ideal for motion control systems and factory automation, this encoder supports extensive diagnostic data for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 s
- Cycle time: 125 µs to 100 ms
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Blind hollow shaft with 5/8 inch diameter
- Shaft material: Stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: –40 °C to +85 °C
- Storage temperature range: –40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- Communication via EtherCAT with CoE (CAN over EtherCAT®) protocol
- IP65 rated shaft side and IP67 rated housing side for harsh environments
- Low power consumption ≤ 3 W with reverse polarity protection
- High repeatability with standard deviation σr of 0.002°
- Wide operating temperature range from –40 °C to +85 °C
- Supports extensive diagnostic data including temperature, speed, position monitoring, and operating hours
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and electrical safety standards to ensure proper connection and operation.
Applications
- Industrial automation and robotics requiring precise position feedback
- Motion control systems
- Machine tool positioning
- Factory automation requiring high reliability and accuracy
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-BJEB262144 encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
