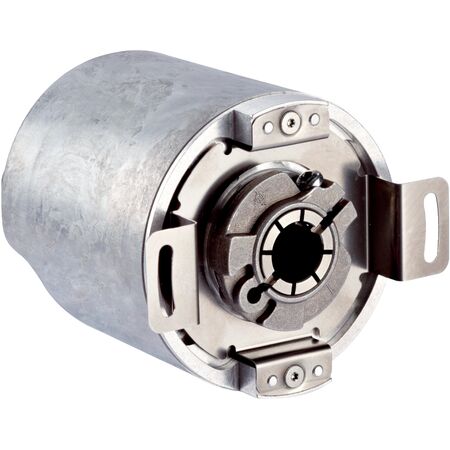

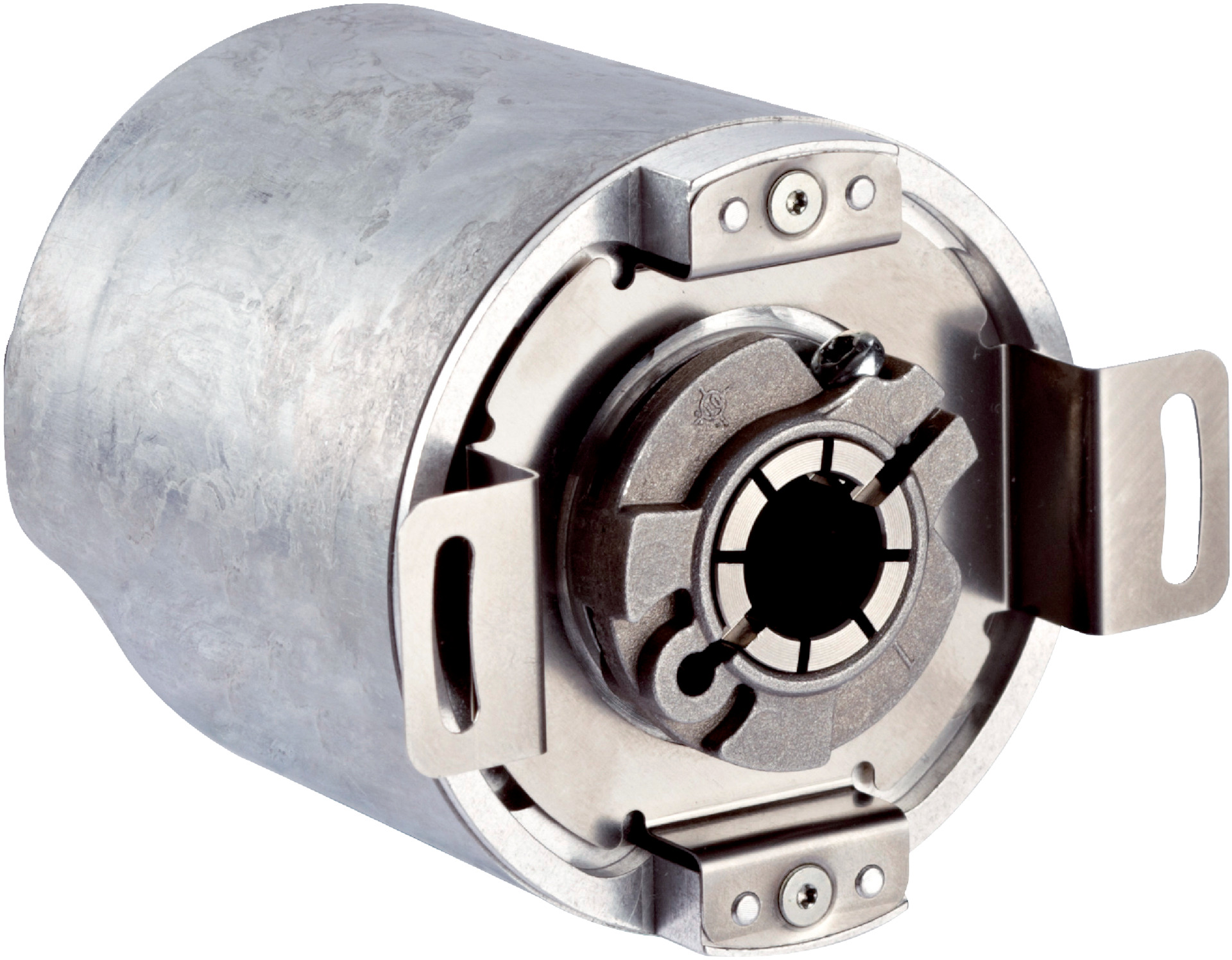

High-Resolution EtherCAT Encoder AFS60A-BFEB262144 | 262,144 Steps | IP65/IP67 Rated | by SICK
The High-Resolution EtherCAT Encoder AFS60A-BFEB262144 delivers exceptional precision with 262,144 steps per revolution and a robust design featuring a stainless steel shaft. Ideal for industrial automation and robotics, it operates within a wide temperature range of -40 °C to +85 °C, ensuring reliability in demanding environments. With EtherCAT communication and high repeatability, this encoder is perfect for motion control systems requiring accuracy and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 80 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 s
- Cycle time: 125 µs to 100 ms
- Connection type: Male connector M12 4-pin axial, Female connector M12 4-pin axial
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Mechanical design: Blind hollow shaft with 1/2 inch diameter
- Shaft material: Stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum
- Start up torque: 0.8 Ncm at +20 °C
- Operating torque: 0.6 Ncm at +20 °C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- EtherCAT communication interface with CoE (CAN over EtherCAT®)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- High repeatability with standard deviation of 0.002°
- Wide operating temperature range from -40 °C to +85 °C
- IP65 rated shaft side and IP67 rated housing side for protection against dust and water
- Reverse polarity protection and low power consumption (≤ 3 W)
- Comprehensive diagnostics data available including temperature, speed, position monitoring, and operating hours
