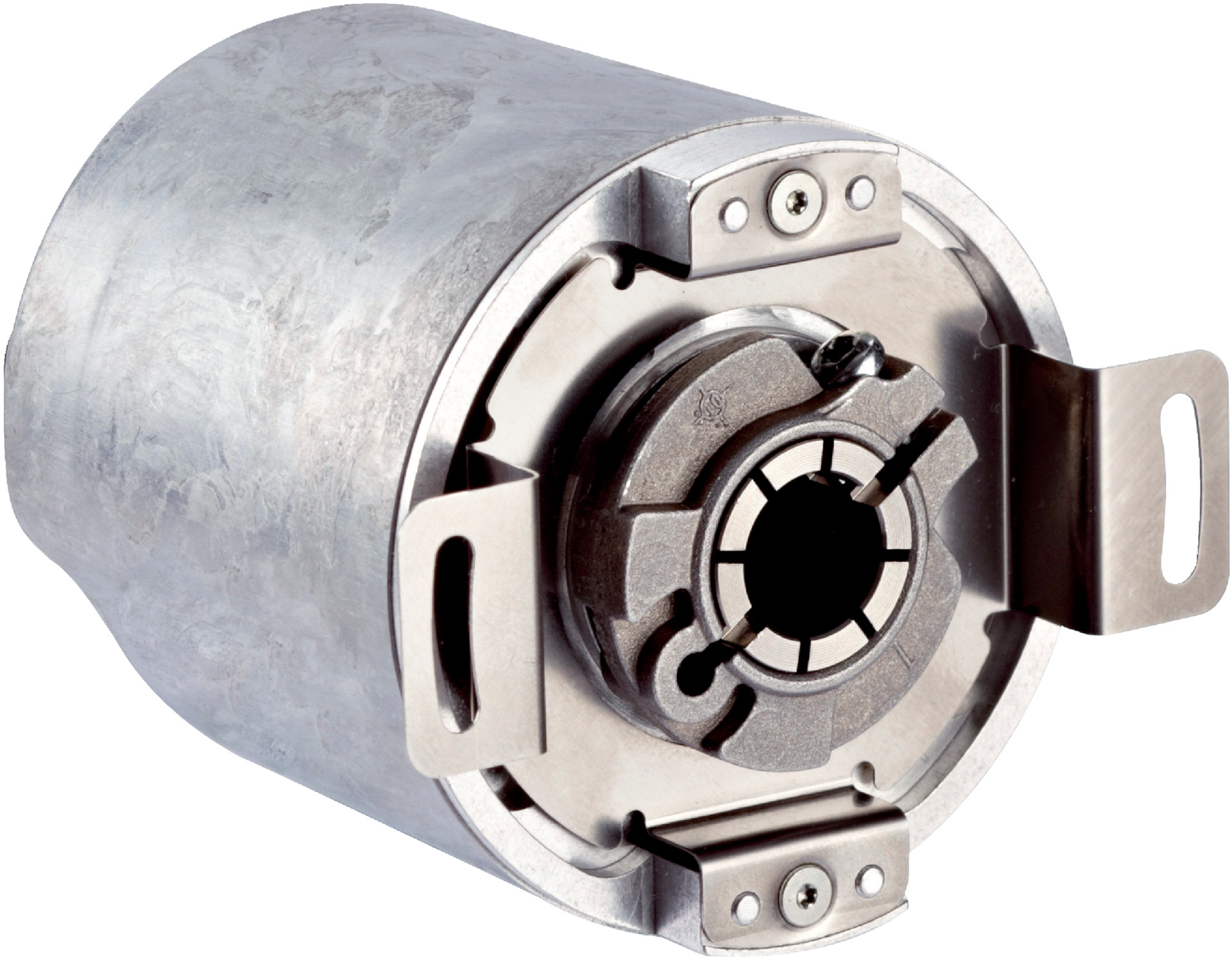

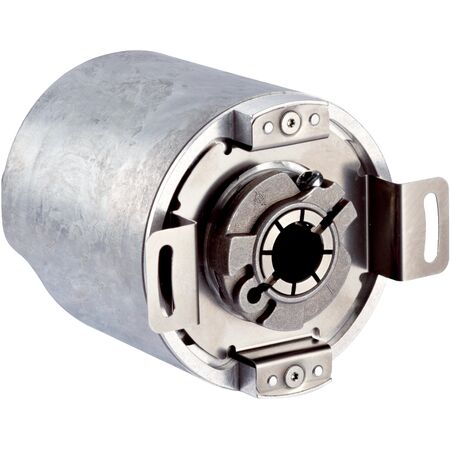

High-Resolution EtherCAT Encoder AFS60A-BHEB262144 | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
The High-Resolution EtherCAT Encoder AFS60A-BHEB262144 delivers exceptional precision with 262,144 steps per revolution, making it ideal for industrial automation and robotics. Designed for high-speed machinery monitoring, it features a robust stainless steel shaft and an IP65/IP67 rating for superior protection against dust and water. With low power consumption and comprehensive diagnostics, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 80 years (EN ISO 13849-1)
- Resolution: 262,144 steps per revolution (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: EtherCAT with CoE (CAN over EtherCAT®)
- Data transmission rate: 10 Mbit/s, 100 Mbit/s
- Transmission medium: CAT-5e cable
- Initialization time: 6 s
- Cycle time: 125 µs to 100 ms
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 3 W (without load)
- Connection type: Male and female M12, 4-pin axial connectors
- Mechanical design: Blind hollow shaft, 15 mm diameter
- Shaft material: Stainless steel
- Housing material: Aluminum
- Flange material: Zinc diecast
- Start up torque: 0.8 Ncm (+20 °C)
- Operating torque: 0.6 Ncm (+20 °C)
- Permissible movement static: ±0.3 mm radial, ±0.5 mm axial
- Permissible movement dynamic: ±0.05 mm radial, ±0.1 mm axial
- Operating speed: ≤ 6,000 min⁻¹
- Moment of inertia of rotor: 40 gcm²
- Bearing lifetime: 3 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 shaft side, IP67 housing side
- Operating temperature range: -40 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 30 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.2 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- EtherCAT communication interface with CoE (CAN over EtherCAT®)
- Robust mechanical design with blind hollow shaft and stainless steel shaft
- High operating speed up to 6,000 min⁻¹
- IP65 shaft side and IP67 housing side protection
- Reverse polarity protection
- Comprehensive diagnostics data available
- Low power consumption ≤ 3 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with EtherCAT systems and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and robotics requiring precise position feedback
- Motion control systems in manufacturing
- High-speed machinery monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFS60A-BHEB262144 encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
