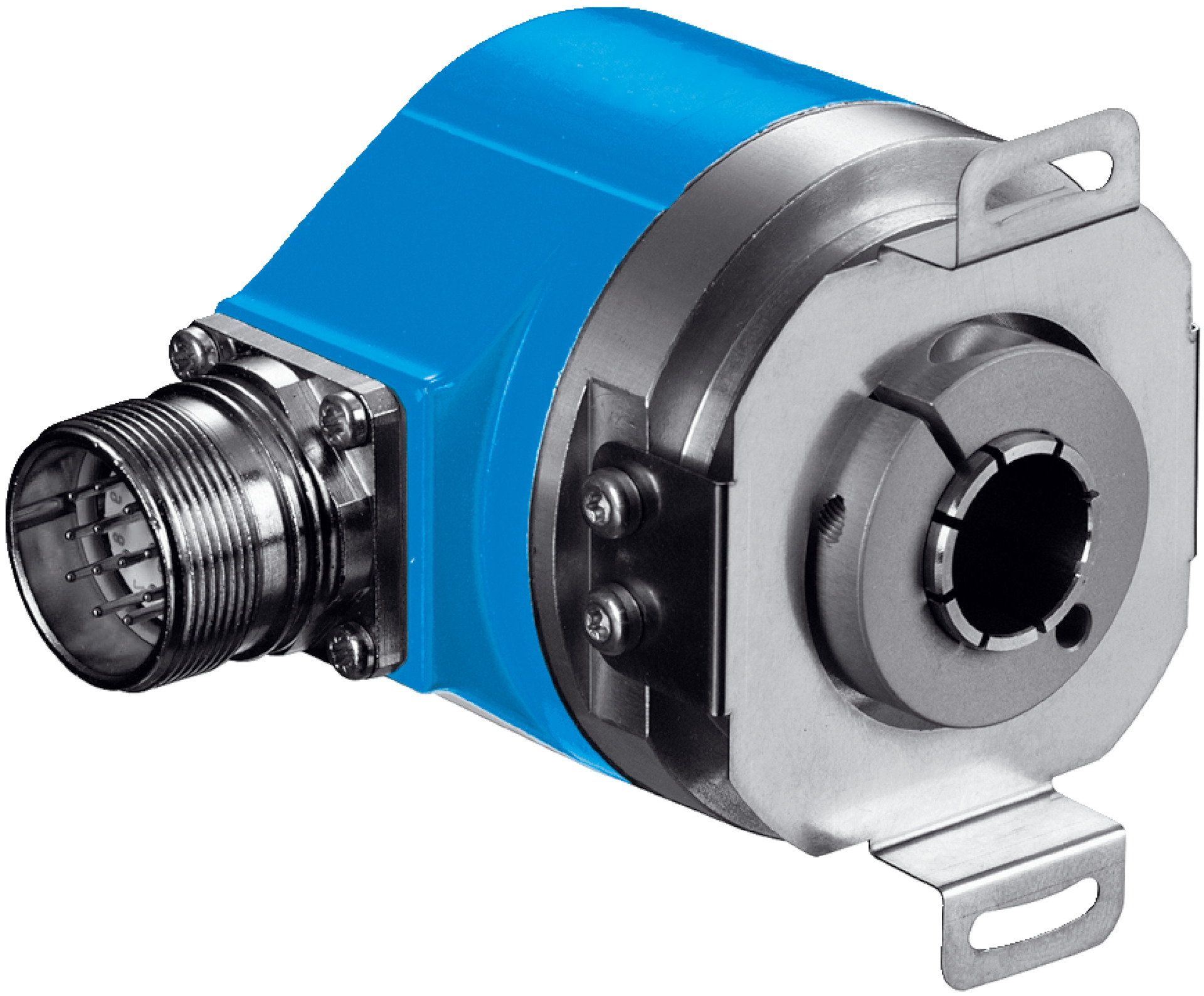

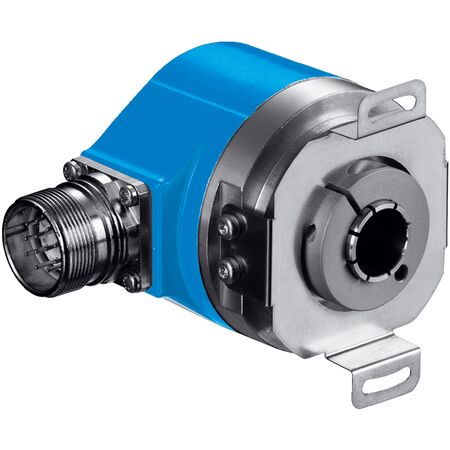

High-Resolution Rotary Encoder ARS60-HDA10000 | 10,000 Steps/Rev | IP64 Enclosure | by SICK
The High-Resolution Rotary Encoder ARS60-HDA10000 features an impressive 10,000 steps per revolution and a robust aluminum die cast housing, making it ideal for industrial automation and precision measurement applications. With an IP64 rating for dust and splash protection, this encoder ensures reliable performance in challenging environments, while its fast initialization time of 80 ms and high repeatability standard deviation of 0.005° make it perfect for robotics and motion control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High-Resolution Rotary Encoder ARS60-HDA10000 | 10,000 Steps/Rev | IP64 Enclosure | by SICK
Brand: SICK
SKU: 1031712
Alternatively Known As: Rotary Encoder ARS60, High-Resolution Encoder, SICK ARS60 Encoder, Industrial Rotary Encoder
Technical Specifications
- Mean Time To Dangerous Failure (MTTFD): 300 years (EN ISO 13849-1)
- Number of steps per revolution: 10,000
- Measuring step: 360° / number of steps
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: Binary
- Code sequence parameter adjustable: CW increasing when viewing clockwise shaft
- Measured value backlash: 0.005°
- Response threshold: 0.003°
- Connection type: Male connector, M23, 21-pin, radial
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level of control inputs: Logic H = 0.7 x US, Logic L = 0 to 0.3 x US
- Actuation of set button: ≥ 100 ms
- Mechanical design: Through hollow shaft
- Shaft diameter: 12 mm
- Shaft characteristics: Front clamp
- Housing material: Aluminum die cast
- Start up torque: Typically 2.2 Ncm
- Operating torque: Typically 1.6 Ncm
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: ≤ 3,000 min⁻¹
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP64 (IEC 60529)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20 °C to +85 °C
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 11 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 100mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 10,000 steps per revolution
- Through hollow shaft design with 12 mm shaft diameter
- Robust aluminum die cast housing
- IP64 rated enclosure for dust and splash protection
- Low start-up torque of 2.2 Ncm and operating torque of 1.6 Ncm
- High repeatability with standard deviation of 0.005°
- Fast initialization time of 80 ms
- Male M23 21-pin radial connector for reliable connection
- Wide operating temperature range from -20 °C to +85 °C
- Resistance to shocks up to 50 g and vibration up to 20 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper alignment and connection.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Manufacturing equipment requiring high accuracy
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation supports reduced power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-HDA10000 rotary encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
