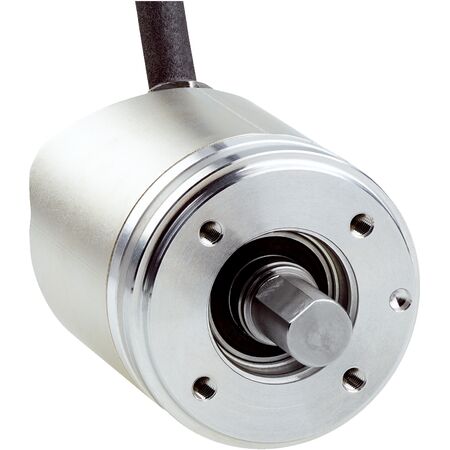

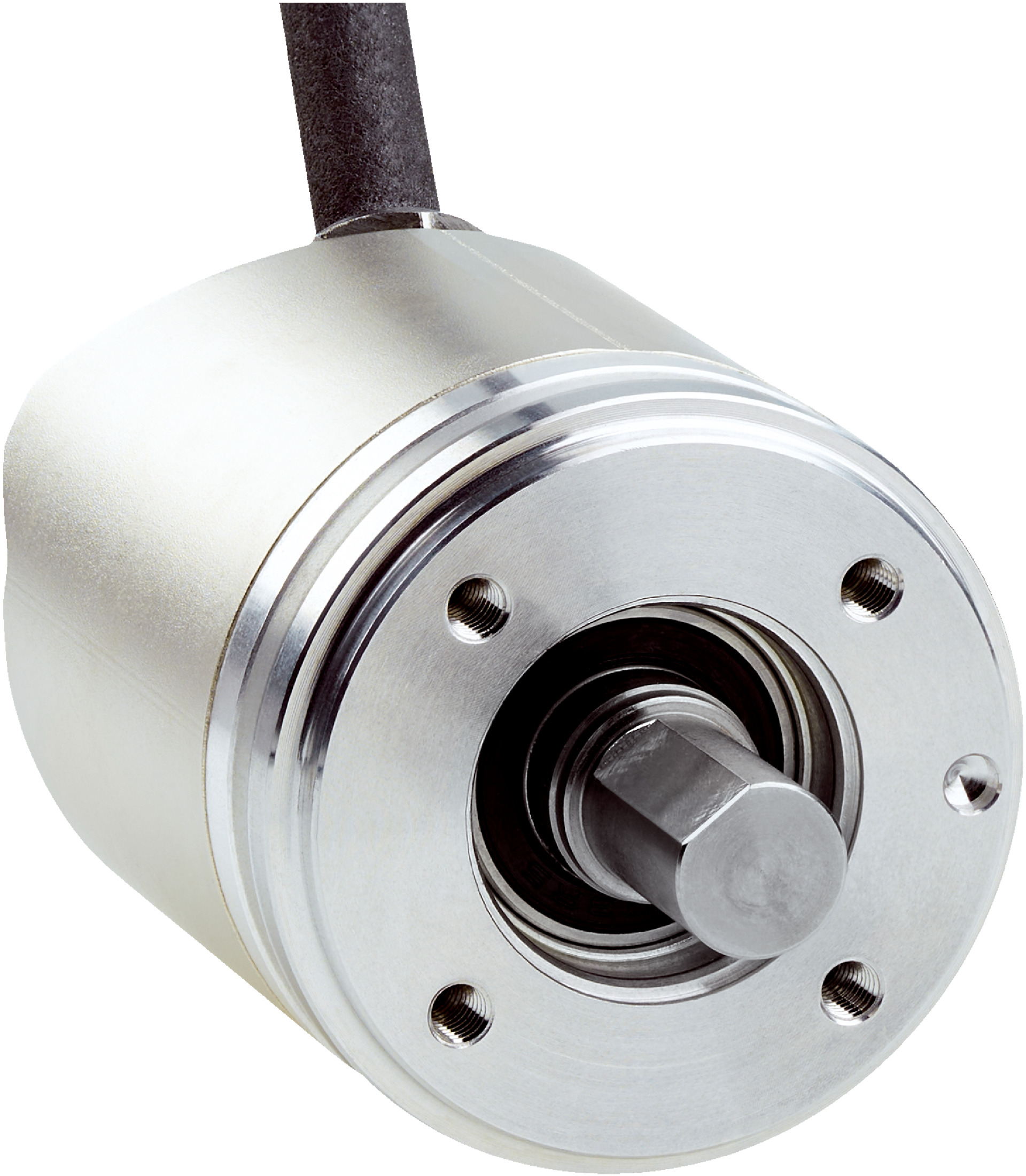

High-Resolution Rotary Encoder AHS36A-S1PK016384 | 16,384 Steps | IP66 & IP67 Rated | by SICK
The High-Resolution Rotary Encoder AHS36A-S1PK016384 offers exceptional precision with 16,384 steps per revolution, making it ideal for industrial automation and control systems. Designed for robust performance, it features an IP66 and IP67 rated enclosure, ensuring reliability in harsh environments. With a wide operating temperature range from -40°C to +100°C and low power consumption, this encoder is perfect for precision positioning and motion control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 230 years (EN ISO 13849-1)
- Number of steps per revolution: 16,384 (14 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication interface: SSI
- Initialization time: 100 ms
- Position forming time: 125 µs
- Code type: Gray, binary
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 1.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, servo flange
- Shaft diameter: 6 mm with flat
- Shaft length: 12 mm
- Materials: Stainless steel shaft, aluminum flange, zinc housing, PUR cable
- Start up torque: 1 Ncm at 20°C
- Operating torque: < 1 Ncm at 20°C
- Permissible shaft loading: 40 N radial, 20 N axial
- Operating speed: ≤ 6,000 min⁻¹
- Bearing lifetime: 3.6 x 10^8 revolutions
- Enclosure rating: IP66, IP67
- Operating temperature range: -40°C to +100°C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution (14 bit)
- Robust mechanical design with solid shaft and servo flange
- IP66 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -40°C to +100°C
- Reverse polarity protection and low power consumption (≤ 1.5 W)
- Fast initialization time of 100 ms and position forming time of 125 µs
- Communication via SSI interface with configurable code type (Gray, binary)
- High reliability with MTTFD of 230 years according to EN ISO 13849-1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder wiring and configuration to ensure proper operation and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision positioning and motion control
- Machine tool and manufacturing equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AHS36A-S1PK016384 SSI Encoder is available for immediate purchase, ideal for industrial automation and precision motion control applications.
