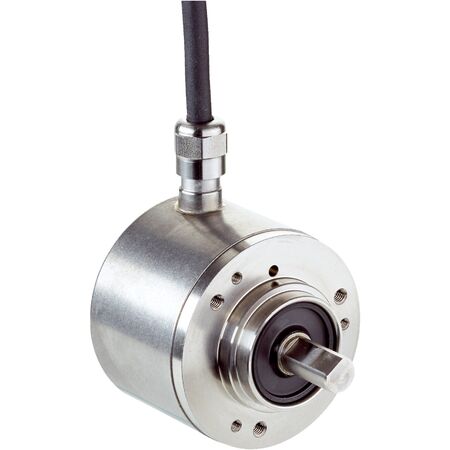

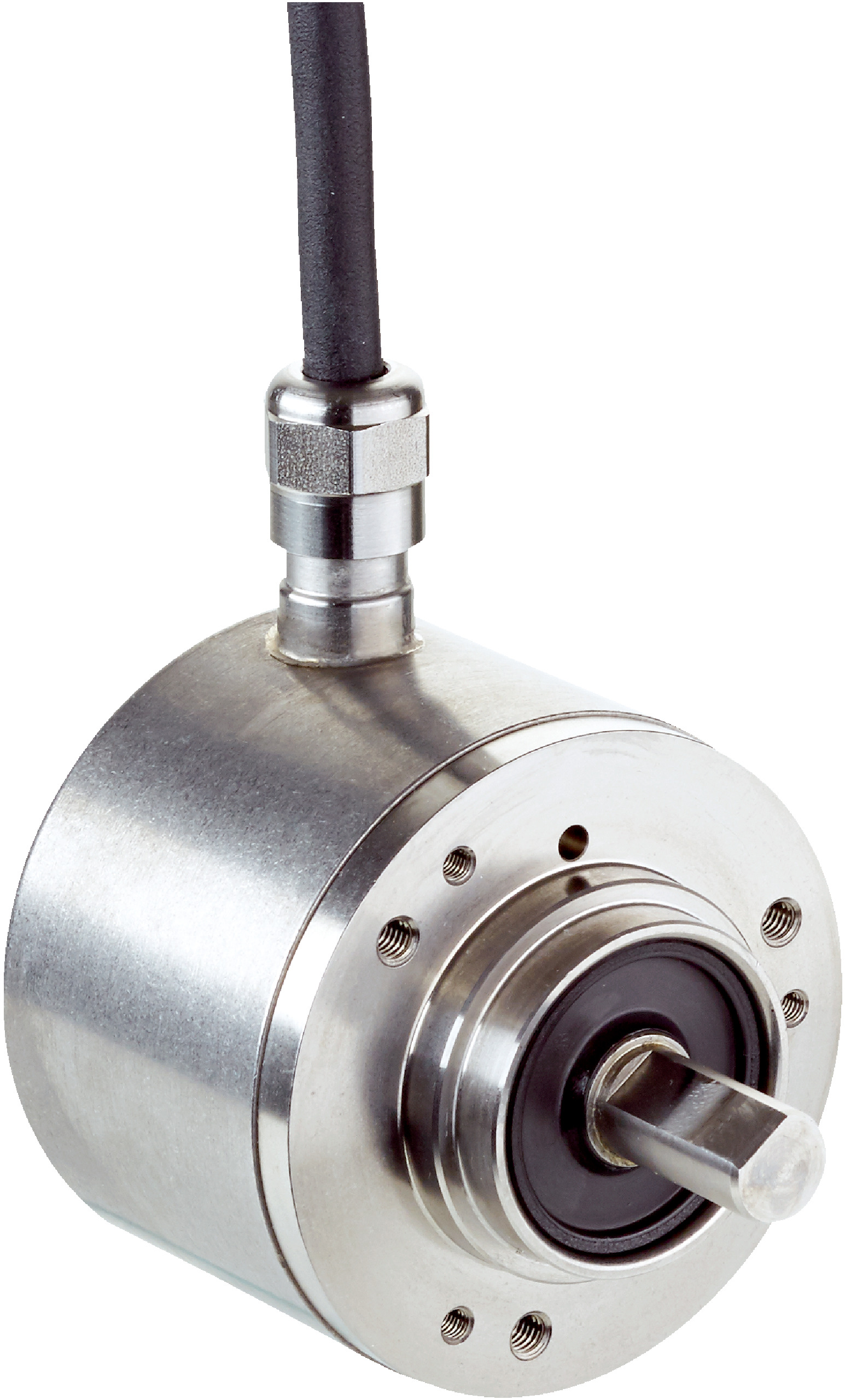

High-Resolution Rotary Encoder | 262,144 Steps | IP67 Rated | by SICK
The High-Resolution Rotary Encoder offers an impressive 262,144 steps per revolution, making it ideal for precision measurement and positioning in industrial automation and robotics. With a robust stainless steel housing and an IP67 rating, it ensures reliable performance in harsh environments. Fast initialization and low power consumption further enhance its suitability for safety-related applications requiring accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Number of steps per revolution: 262,144 (18 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray
- Clock frequency: 2 MHz
- Set (electronic adjustment): H-active (L = 0 - 3 V, H = 4.0 - U s V)
- CW/CCW counting sequence adjustable
- Connection type: Cable, 8-wire, universal, 5 m
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, face mount flange
- Shaft diameter: 10 mm
- Shaft length: 19 mm
- Shaft material: Stainless steel V2A
- Flange material: Stainless steel V2A
- Housing material: Stainless steel V2A
- Start up torque: 1 Ncm (+20 °C)
- Operating torque: 0.5 Ncm (+20 °C)
- Permissible shaft loading: 80 N (radial), 40 N (axial)
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: According to EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 (shaft side and housing side)
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: –40 °C to +100 °C
- Storage temperature range: –40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit)
- Robust stainless steel V2A housing, shaft, and flange
- Solid shaft with flat, 10 mm diameter and 19 mm length
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W
- Reverse polarity protection included
- Fast initialization time of 50 ms
- High operating speed up to 9,000 min⁻¹
- High resistance to shocks (100 g, 6 ms) and vibration (10 g, 10 Hz to 2,000 Hz)
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Low operating torque of 0.5 Ncm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Safety-related applications requiring reliable feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction extends product lifespan, reducing waste
- Low power consumption minimizes energy usage
- Robust design reduces need for frequent replacements
Warranty Information
Warranty details available upon request from manufacturer; typically includes coverage against manufacturing defects.
Available Now
The SICK AFS60I-S4AM262144 encoder is available for immediate purchase, ideal for industrial automation, robotics, and safety-related applications requiring high precision.
