High Resolution Rotary Encoder | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK

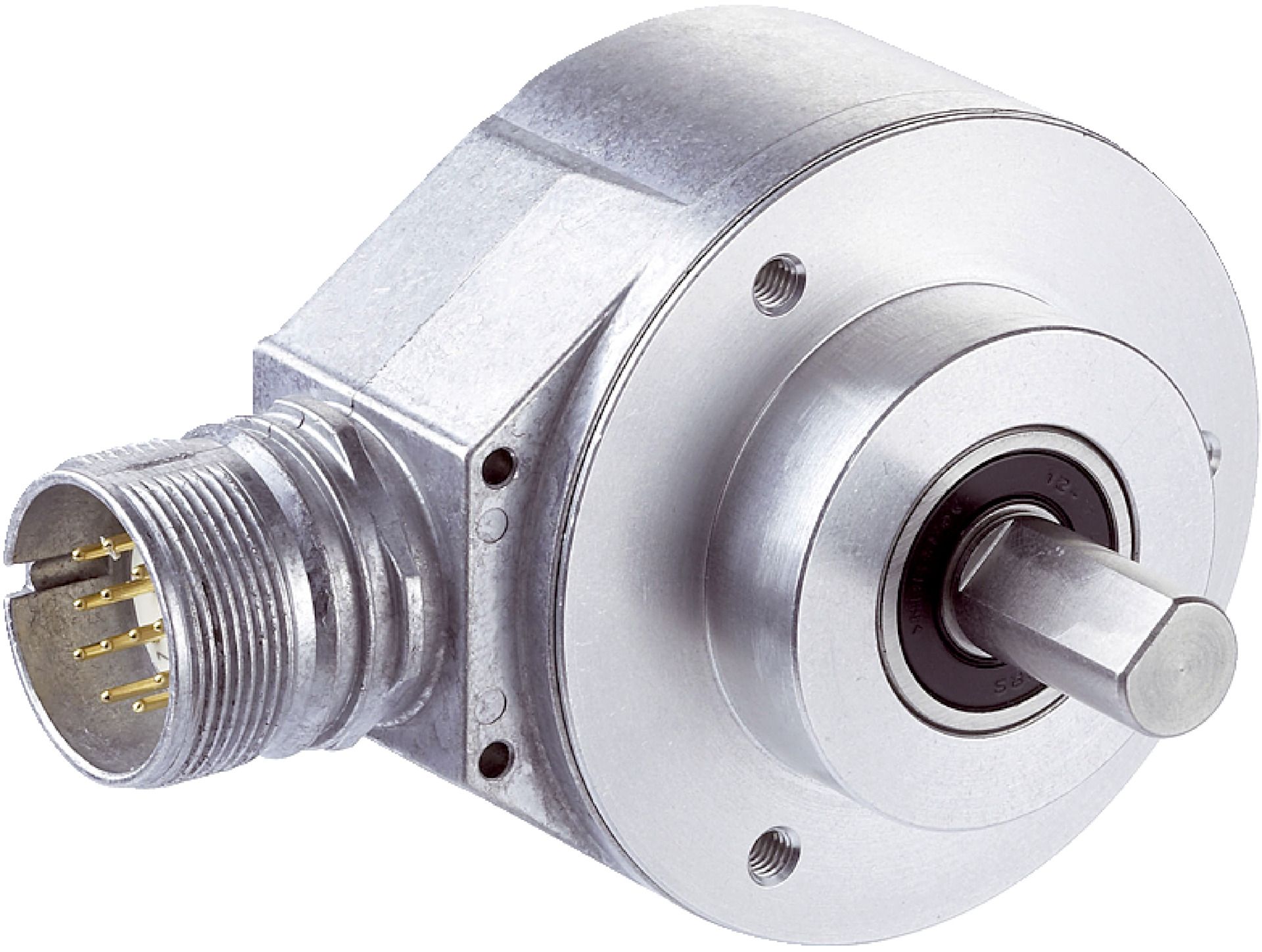

The High Resolution Rotary Encoder AFM60A-S4PA262144 delivers exceptional precision with 262,144 steps per revolution and a robust design for industrial automation. Ideal for robotics and motion control, it features an IP65/IP67 rating for dust and water protection, ensuring reliable performance in demanding environments. With a wide operating temperature range and long bearing lifetime, this encoder is perfect for safety-related applications in manufacturing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder | 262,144 Steps/Rev | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1037508
Alternatively Known As: High resolution rotary encoder, Solid shaft encoder, SSI encoder, Industrial position encoder
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: ≤ 2 MHz
- Supply voltage: 4.5 to 32 V
- Power consumption: ≤ 0.7 W (without load)
- Connection type: Male connector, M23, 12-pin, radial
- Shaft diameter: 10 mm with flat
- Shaft length: 19 mm
- Housing material: Aluminum die cast
- Flange material: Aluminum
- Operating speed: ≤ 9,000 min⁻¹
- Bearing lifetime: 3.0 x 10^9 revolutions
- Operating temperature range: -40 °C to +100 °C
- Enclosure rating: IP65 (shaft side), IP67 (housing side)
- Resistance to shocks: 60 g, 6 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Solid shaft with face mount flange design
- Stainless steel shaft with flat for secure mounting
- Robust aluminum die cast housing and flange
- IP65 rated on shaft side and IP67 on housing side for dust and water protection
- Low start-up torque (<0.5 Ncm) and operating torque (<0.3 Ncm)
- High operating speed up to 9,000 min⁻¹
- Reverse polarity protection included
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Wide operating temperature range from -40 °C to +100 °C
- Resistance to shocks (60 g, 6 ms) and vibration (20 g, 10 Hz to 2,000 Hz)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and mechanical mounting for optimal performance and safety.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision machinery requiring accurate position feedback
- Safety-related applications in manufacturing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption (≤ 0.7 W) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60A-S4PA262144 encoder is available for immediate purchase, ideal for high-precision industrial automation and safety-related applications.
