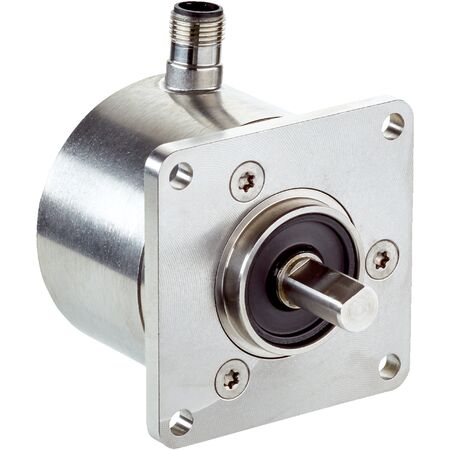

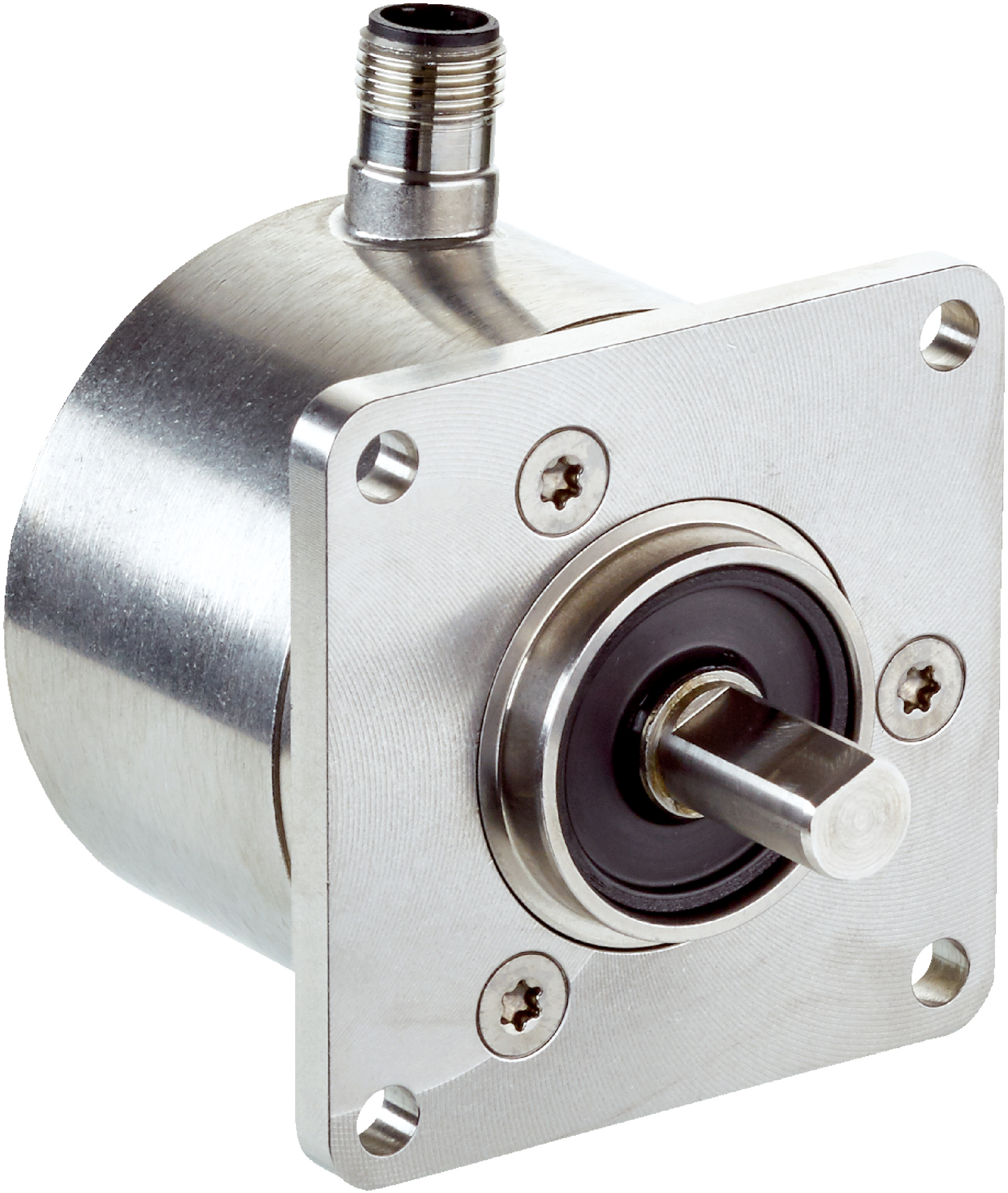

High-Resolution Rotary Encoder | 262,144 Steps/Rev | IP67 Rated | by SICK
The High-Resolution Rotary Encoder offers an impressive 262,144 steps per revolution and a robust IP67 rated enclosure, making it perfect for industrial automation and precision measurement applications. Designed for high reliability, it features low power consumption and fast initialization, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps per revolution (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI with Gray code
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Clock frequency: 2 MHz
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W (without load)
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Operating torque: 0.5 Ncm at +20 °C
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Enclosure rating: IP67 (shaft and housing side)
- Operating temperature range: -40 °C to +100 °C
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibration: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 80mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Solid shaft with stainless steel V2A housing and flange
- IP67 rated enclosure for protection against dust and water
- Low power consumption ≤ 0.5 W
- Reverse polarity protection
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Fast initialization time of 50 ms and position forming time under 1 µs
- Communication via SSI interface with Gray code
- Adjustable code sequence parameter (CW/CCW)
- Operating temperature range from -40 °C to +100 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of rotary encoders to ensure proper connection and alignment.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Safety-related applications requiring high reliability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable stainless steel construction extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AFM60I-Q4PC262144 rotary encoder is available for immediate purchase, ideal for industrial automation and precision positioning applications.
