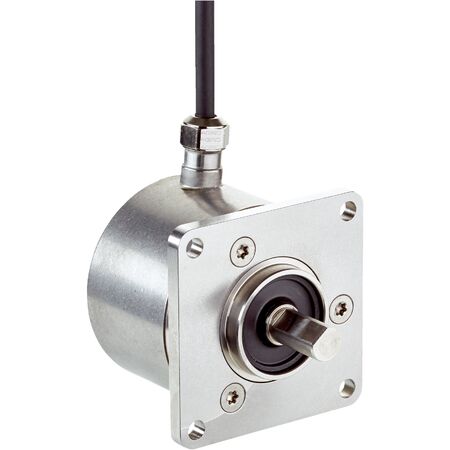

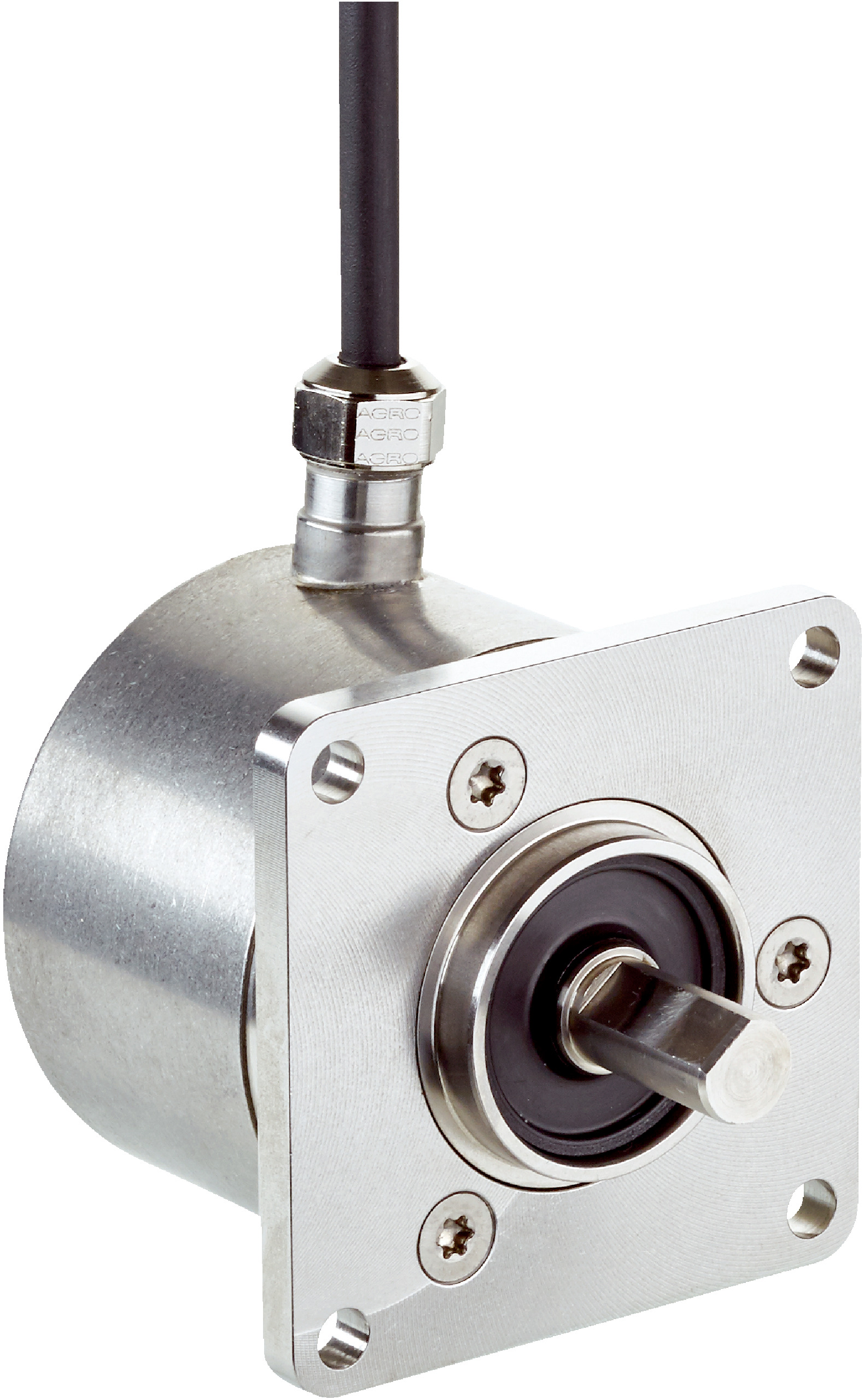

High Resolution Rotary Encoder AFM60I-Q4LM262144 | 262,144 Steps/Rev | IP67 Rated | by SICK
The High Resolution Rotary Encoder AFM60I-Q4LM262144 offers exceptional precision with 262,144 steps per revolution and a robust IP67 enclosure, making it ideal for industrial automation and motion control applications. Designed for durability, it features a solid stainless steel shaft and low power consumption, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 250 years (EN ISO 13849-1)
- Max resolution: 262,144 steps/rev (18 bit) x 4,096 revolutions (12 bit)
- Error limits G: 0.03°
- Repeatability standard deviation σr: 0.002°
- Communication interface: SSI + incremental / HTL
- Initialization time: 50 ms
- Position forming time: < 1 µs
- Code type: Gray code
- Clock frequency: 2 MHz
- Output frequency: ≤ 820 kHz
- Load current: ≤ 30 mA
- Connection type: 12-wire cable, 5 m length
- Supply voltage: 4.5 to 32 V DC
- Power consumption: ≤ 0.5 W
- Reverse polarity protection: Yes
- Mechanical design: Solid shaft, square flange
- Shaft diameter: 10 mm with flat
- Start up torque: 1 Ncm
- Operating torque: 0.5 Ncm
- Permissible shaft loading: 80 N radial, 40 N axial
- Operating speed: 9,000 min⁻¹
- Moment of inertia of rotor: 6.2 gcm²
- Bearing lifetime: 3.0 x 10^9 revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP67 shaft and housing side
- Operating temperature: -40 °C to +100 °C
- Storage temperature: -40 °C to +100 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 10 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 58mm x 40mm x 58mm
- Weight: 0.5 kg
Key Features
- High resolution with 262,144 steps per revolution (18 bit) and 4,096 revolutions (12 bit)
- Solid shaft with stainless steel V2A housing and flange
- Robust IP67 rated enclosure for harsh environments
- Low power consumption ≤ 0.5 W
- Reverse polarity protection
- Fast initialization time of 50 ms and position forming time < 1 µs
- Communication via SSI and incremental HTL interfaces
- High mechanical durability with bearing lifetime of 3.0 x 10^9 revolutions
- Operating temperature range from -40 °C to +100 °C
- High resistance to shocks (100 g) and vibration (10 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, grounding, and integration with control systems.
Applications
- Industrial automation and control systems
- Robotics and motion control
- Precision measurement and positioning
- Machine tool feedback
- Conveyor and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage in industrial systems
- Durable stainless steel housing extends product life and reduces waste
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AFM60I-Q4LM262144 encoder is available for immediate purchase, ideal for high-precision industrial automation and motion control applications.
