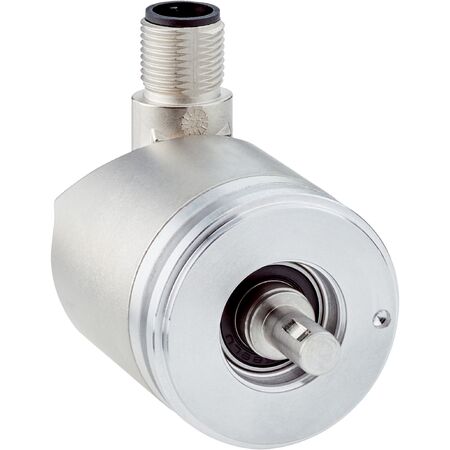

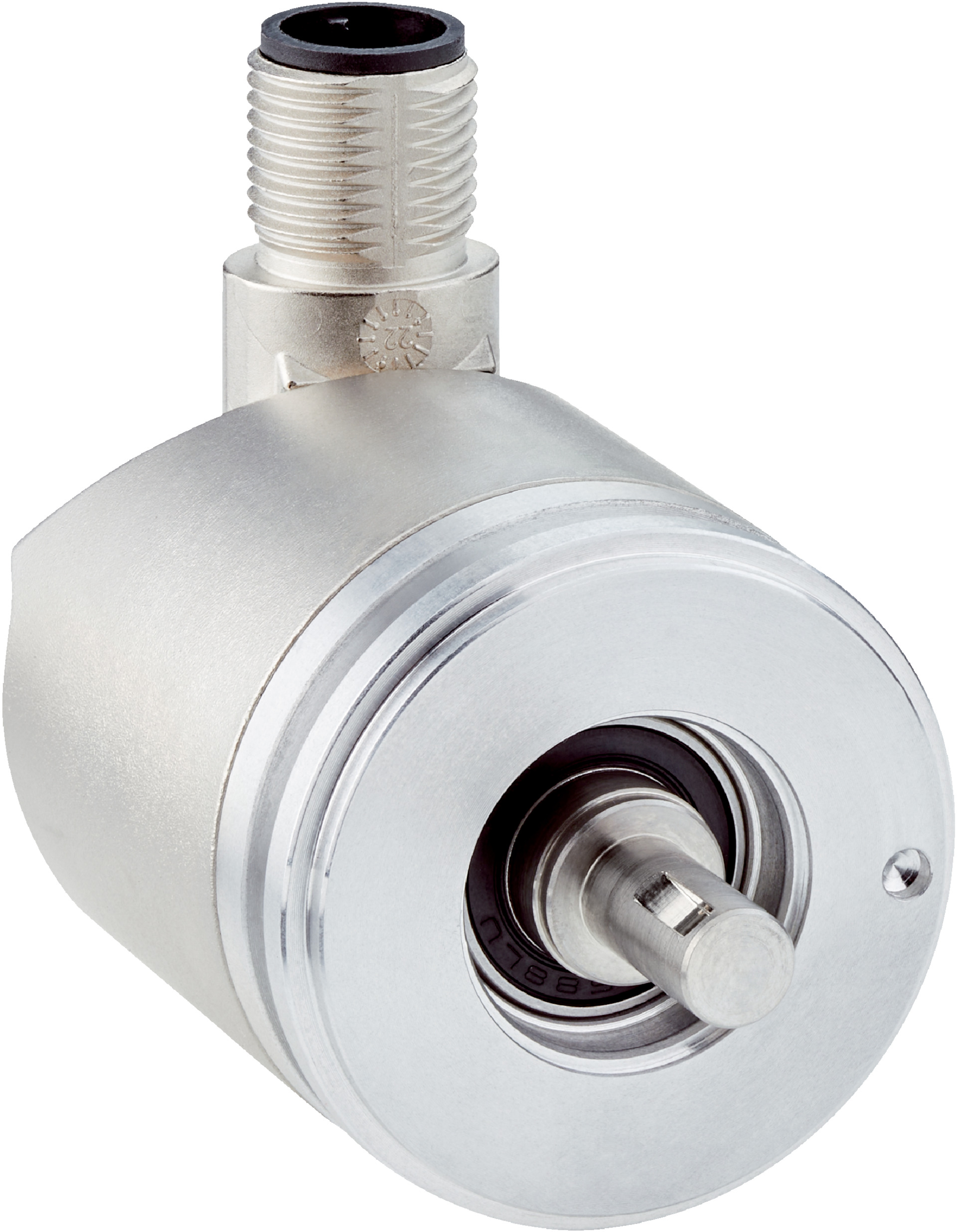

High-Resolution Rotary Encoder AHM36A-SDCC014x12 | 16,384 Steps/Rev | IP66 & IP67 Rated | by SICK
The High-Resolution Rotary Encoder AHM36A-SDCC014x12 offers exceptional precision with 16,384 steps per revolution, making it ideal for industrial automation and robotics. Designed for harsh environments, it features an IP66 and IP67 rated enclosure, ensuring durability and reliability. With a wide operating temperature range of -40°C to +85°C and low power consumption, this encoder is perfect for safety-critical applications and motion monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD: 270 years (EN ISO 13849-1)
- Resolution: 16,384 steps per revolution (14 bit), 4,096 revolutions (12 bit)
- Error limits: 0.35° at 20°C
- Repeatability standard deviation: 0.2° at 20°C
- Communication: CANopen CiA DS-301 V4.02, DSP-305 LSS, Encoder Profile CIA DS-406 V3.2 Class C2
- Data transmission rate: 20 kbit/s to 1,000 kbit/s, default 125 kbit/s
- Supply voltage: 10 to 30 V
- Power consumption: ≤ 1.5 W (without load)
- Connection: Male M12 5-pin connector
- Mechanical: Solid shaft 6 mm diameter, 12 mm length, stainless steel shaft, aluminum flange, zinc housing
- Operating speed: ≤ 6,000 min⁻¹
- Operating temperature: -40°C to +85°C
- Enclosure rating: IP66 and IP67
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 36mm x 60mm x 36mm
- Weight: 0.12 kg
Key Features
- High resolution with 16,384 steps per revolution and 4,096 revolutions
- CANopen communication interface with CiA DS-301 and DS-406 protocols
- Robust mechanical design with solid stainless steel shaft and aluminum flange
- Wide operating temperature range from -40°C to +85°C
- IP66 and IP67 rated enclosure for harsh environments
- Low power consumption ≤ 1.5 W with reverse polarity protection
- High reliability with mean time to dangerous failure (MTTFD) of 270 years
- Supports electronic cams with 2 channels and 8 cams each
- Comprehensive diagnostics including temperature, speed, voltage, and operating hours
Professional Installation Requirements
- Installation by a qualified technician or electrician experienced with industrial encoders and CANopen networks is recommended to ensure proper configuration and safety.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Position and speed measurement in manufacturing
- Safety-related motion monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes waste and replacement frequency
- Compliance with RoHS reduces hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AHM36A-SDCC014x12 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
