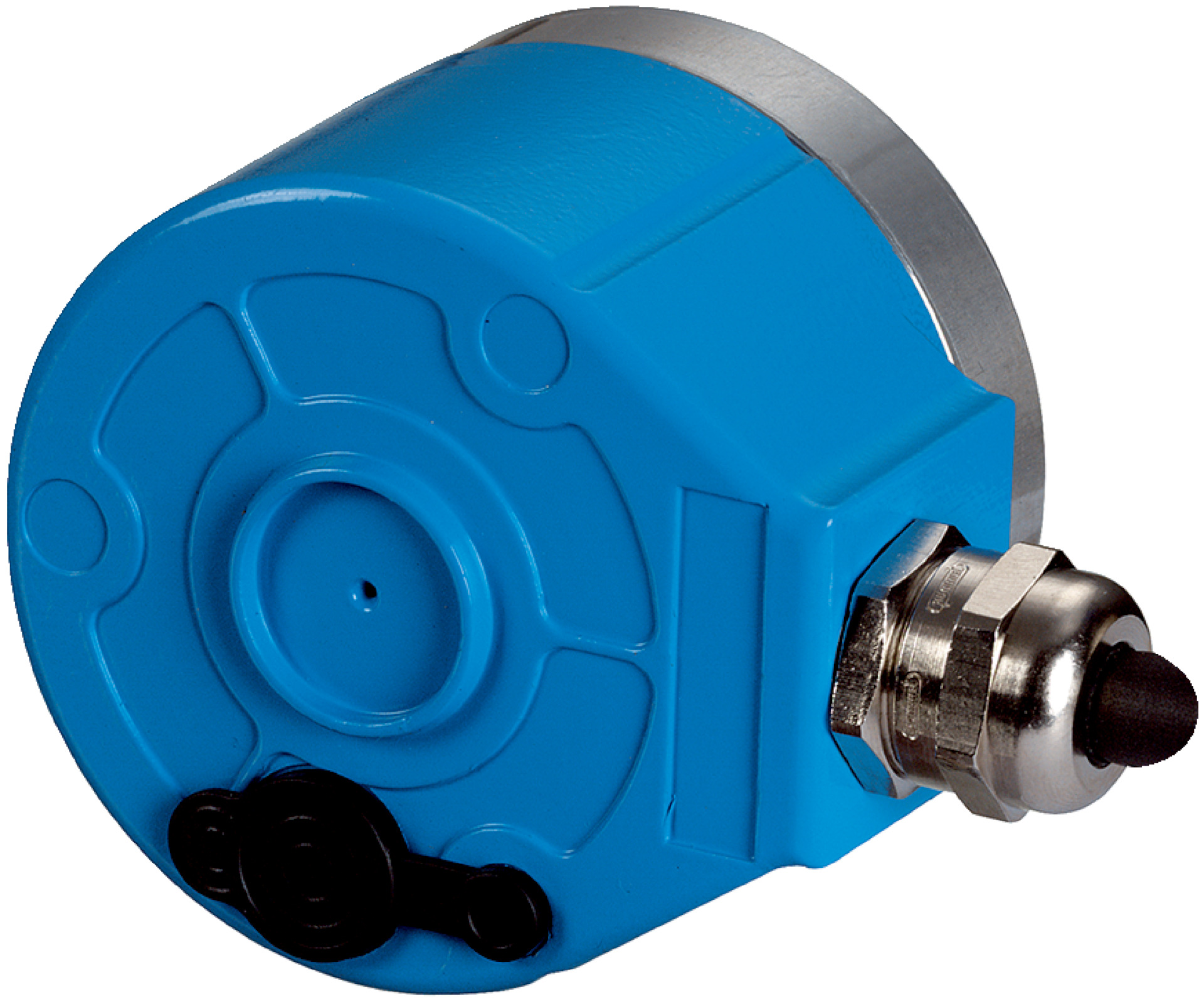

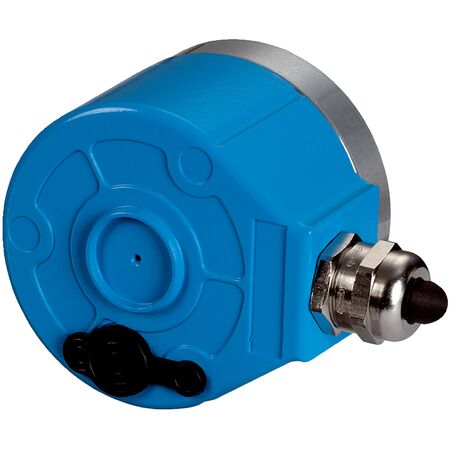

High Resolution Rotary Encoder ARS60 | 1,024 Steps/Rev | IP66 Protection | by SICK
The High Resolution Rotary Encoder ARS60 is designed for precision measurement in industrial automation, featuring 1,024 steps per revolution and robust IP66-rated aluminum housing. With a fast initialization time of 80 ms and a wide operating temperature range of -20°C to +85°C, it's perfect for robotics and safety-related motion control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 1,024 Steps/Rev | IP66 Protection | by SICK
Brand: SICK
SKU: 1037809
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 1,024 steps per revolution (10 bit)
- Measuring step deviation: 0.005°
- Error limits G: 0.035°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data output
- Initialization time: 80 ms
- Code type: Binary
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Switching level control inputs: Logic H = 0.7 x Us, Logic L = 0 to 0.3 x Us
- Mechanical design: Solid shaft, servo flange with flat
- Shaft diameter: 6 mm, length: 10 mm
- Housing material: Aluminum die cast
- Start-up torque: Typically 0.25 Ncm
- Operating torque: Typically 0.2 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Moment of inertia of rotor: 48 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP66 (IEC 60529)
- Operating temperature range: -20°C to +85°C
- Storage temperature range: -40°C to +100°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,024 steps per revolution (10 bit)
- Solid shaft with servo flange and flat for secure mounting
- Robust aluminum die-cast housing with IP66 protection
- Low start-up and operating torque for efficient operation
- High resistance to shocks (50 g) and vibrations (20 g)
- Wide operating temperature range from -20°C to +85°C
- Cable connection with 22 wires, 3 meters length
- Fast initialization time of 80 ms
- Binary code output with adjustable code sequence parameter
- Long bearing lifetime and high mechanical reliability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with rotary encoders and electrical safety standards to ensure proper integration and compliance.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing processes
- Safety-related motion control applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-H1L01024 rotary encoder is available for immediate purchase, ideal for industrial automation and safety-related applications.
