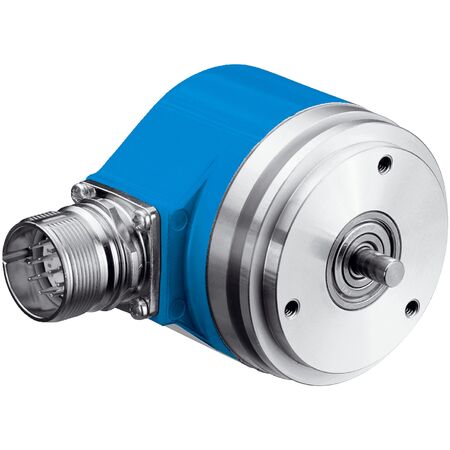

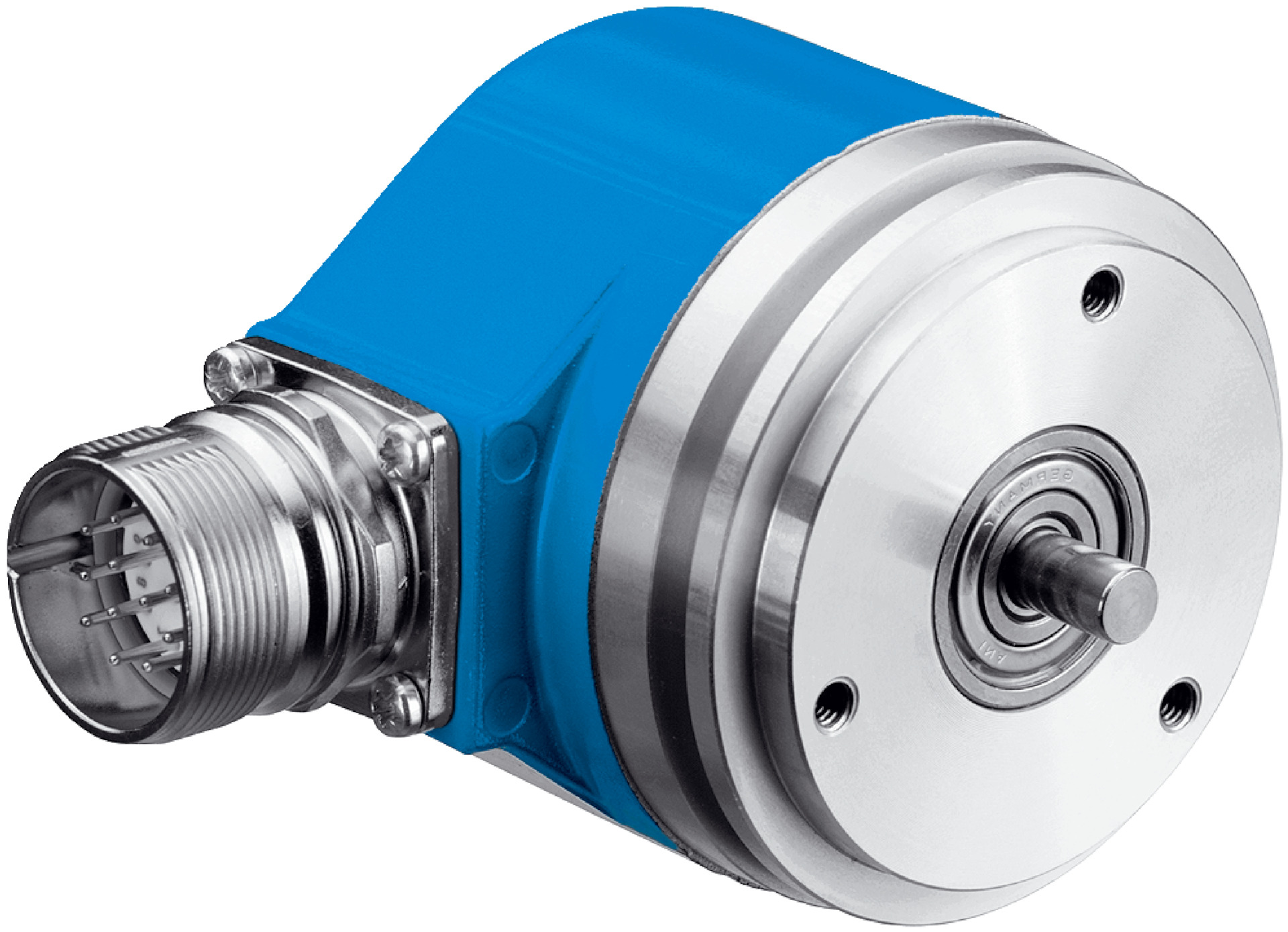

High Resolution Rotary Encoder ARS60 | 2000 Steps/Rev | IP65 Enclosure | by SICK
The High Resolution Rotary Encoder ARS60 offers 2,000 steps per revolution and an IP65 enclosure, making it perfect for industrial automation and precision measurement applications. With a robust aluminum die-cast housing and a wide operating temperature range of -20°C to +85°C, this encoder ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 2000 Steps/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1031739
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Resolution: 2,000 steps per revolution
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: Parallel data world
- Initialization time: 80 ms
- Code type: BCD
- Supply voltage: 10 to 32 V
- Operating current: Typically 90 mA
- Connection type: Male connector, M23, 21-pin, radial
- Shaft diameter: 6 mm with flat
- Operating speed: ≤ 6,000 min⁻¹ with shaft seal, ≤ 10,000 min⁻¹ without shaft seal
- Operating temperature range: -20°C to +85°C
- Enclosure rating: IP65
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 steps per revolution
- Solid shaft with servo flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for dust and water protection
- Wide operating temperature range from -20°C to +85°C
- Low operating torque for efficient performance
- High resistance to shock (50 g) and vibration (20 g)
- Parallel data communication interface with BCD code
- Long bearing lifetime and high mechanical durability
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation and control systems
- Robotics and servo motor feedback
- Precision measurement in manufacturing processes
- Position and speed sensing in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy-efficient operation with low operating torque reduces power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ARS60-J1A02000 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
