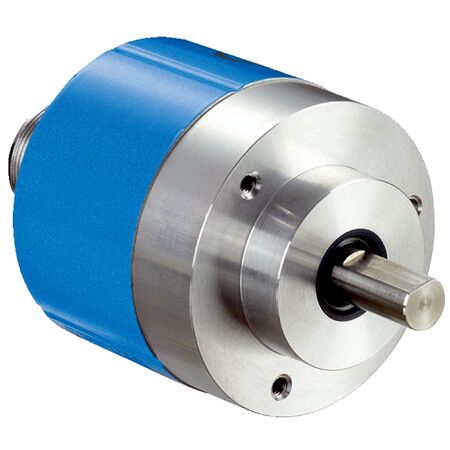

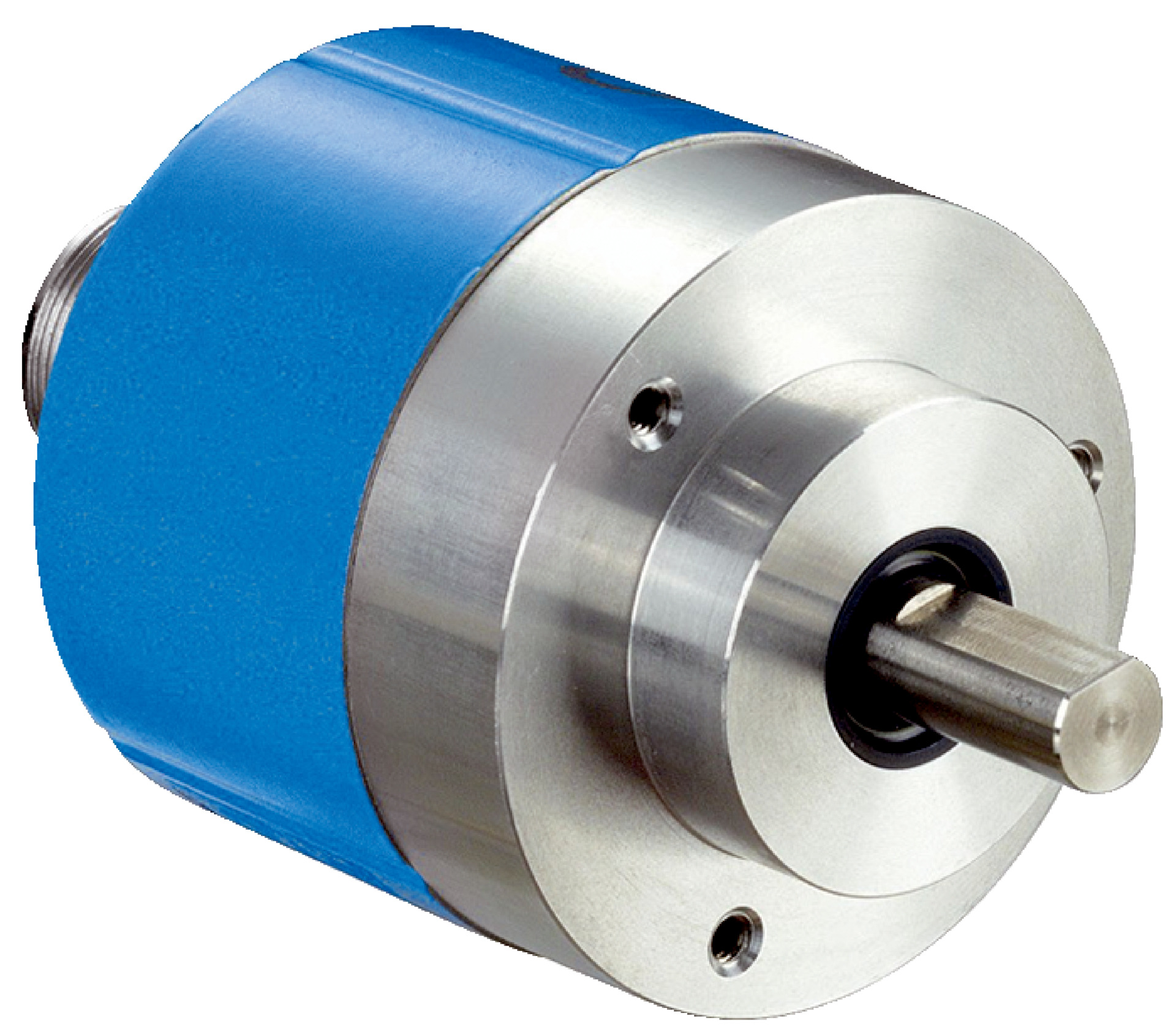

High Resolution Rotary Encoder ARS60 | 2000 Steps/Rev | IP65 Enclosure | by SICK
The High Resolution Rotary Encoder ARS60 offers 2000 steps per revolution and an IP65 enclosure, making it perfect for industrial automation and robotics. With a robust aluminum housing and a low operating torque of 0.3 Ncm, it ensures precise shaft position measurement and high repeatability, ideal for machine tools and conveyor systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: High Resolution Rotary Encoder ARS60 | 2000 Steps/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1032774
Alternatively Known As: Rotary Encoder ARS60, SICK ARS60 Encoder, High Resolution Rotary Encoder, SSI Rotary Encoder
Technical Specifications
- MTTFD: 300 years (EN ISO 13849-1)
- Number of steps per revolution: 2,000
- Measuring step deviation: 0.016°
- Error limits G: 0.046°
- Repeatability standard deviation σr: 0.005°
- Communication interface: SSI
- Initialization time: 80 ms
- Code type: Gray
- Supply voltage: 10 to 32 V
- Operating current: Typically 60 mA
- Connection type: Male connector, M23, 12-pin, axial
- Shaft diameter: 10 mm with flat
- Start up torque: Typically 0.4 Ncm
- Operating torque: Typically 0.3 Ncm
- Permissible shaft loading: 20 N radial, 10 N axial
- Operating speed: Up to 6,000 min⁻¹ with shaft seal, 10,000 min⁻¹ without
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Resistance to shocks: 50 g, 11 ms
- Resistance to vibration: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 60mm x 60mm x 60mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 steps per revolution
- Solid shaft with face mount flange design
- Robust aluminum die cast housing
- IP65 rated enclosure for protection against dust and water
- Operating temperature range from -20°C to +85°C
- Low operating torque of typically 0.3 Ncm
- Communication via SSI interface with Gray code
- High repeatability with standard deviation of 0.005°
- Long bearing lifetime of 3.6 x 10^9 revolutions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and automation equipment to ensure proper connection and calibration.
Applications
- Industrial automation for precise shaft position measurement
- Robotics for accurate angular position feedback
- Machine tools requiring high resolution rotary encoding
- Conveyor systems and packaging machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption electronics contribute to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ARS60-A4B02000 rotary encoder is available for immediate purchase, ideal for industrial automation and precision measurement applications.
